Icp cclbv-a2l-60 A2L Charging Hose Kit 60 in Ball Valves

Product Description

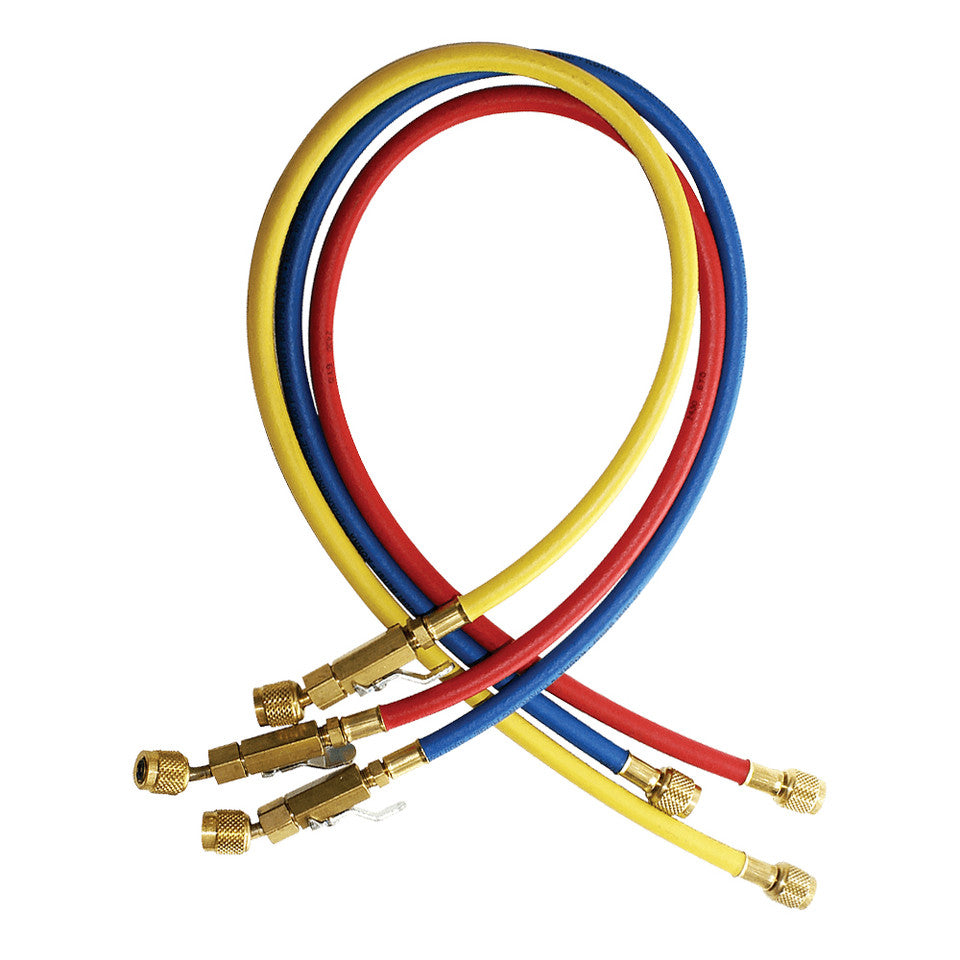

The INTERNATIONAL COMFORT PRODUCTS cclbv-a2l-60 is a three-hose A2L refrigerant charging kit designed for HVAC technicians working with next-generation mildly flammable refrigerants. The kit includes 60-inch red, blue, and yellow hoses fitted with ball valves for positive shutoff control. The yellow hose uses left-hand thread, which is the standard connection for A2L and flammable refrigerant service equipment. Rated to 800 psi, these hoses meet the pressure demands of modern high-efficiency refrigerant systems. This kit is intended for professional refrigeration and HVAC service use only.

This hose kit is suited for residential and light commercial HVAC service work involving A2L refrigerants. The 60-inch length provides working clearance on rooftop and split-system applications. Compatible refrigerants include R-454B, R-32, and R-410A, making this kit appropriate for transitional fleets where technicians service both legacy and newer A2L-rated equipment in the same day.

Key Features

• Three-hose set in standard red, blue, and yellow color coding for easy manifold identification
• Ball valves on each hose for positive flow control and refrigerant containment
• Left-hand thread on yellow hose — required for A2L and flammable refrigerant compatibility
• 800 psi rated construction suitable for high-pressure A2L refrigerant service
• 60-inch hose length for reach on rooftop and split-system installs
• Compatible with R-454B, R-32, and R-410A refrigerants

Compatibility

Compatible with R-454B, R-32, and R-410A refrigerant systems. Left-hand thread yellow hose is designed for use with A2L-rated manifold gauges and recovery equipment per current industry standards for mildly flammable refrigerants.

Installation Notes

This hose kit must be installed and used by EPA Section 608 certified HVAC technicians only. Always recover refrigerant before disconnecting hoses and verify the system is de-energized before connecting to the service ports. When working with A2L refrigerants, follow local codes and refrigerant handling guidelines regarding ventilation and ignition source controls. Inspect hose fittings for leaks after connection using an electronic leak detector rated for the applicable refrigerant.

Technical Specifications

• Hose Length: 60 inches
• Maximum Pressure Rating: 800 psi
• Hose Colors: Red, Blue, Yellow
• Thread Type (Yellow Hose): Left-hand thread
• Compatible Refrigerants: R-454B, R-32, R-410A
• Valve Type: Ball valve
• Refrigerant Class: A2L

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: cclbv-a2l-60
