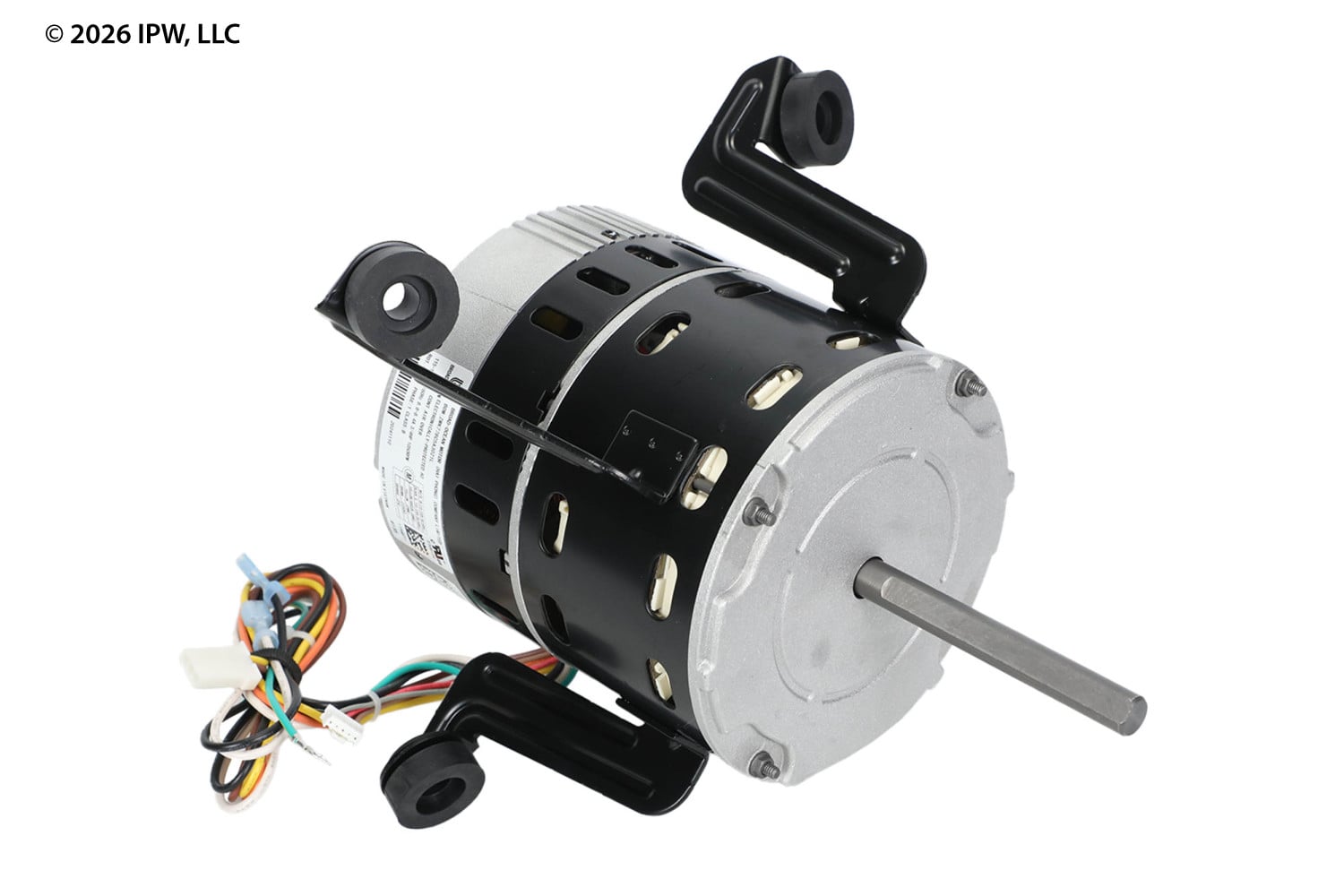

Icp 1196877 Condenser Fan Motor 3/4 Hp 115V Ccw

Product Description

The INTERNATIONAL COMFORT PRODUCTS 1196877 is a condenser fan motor designed for use in residential and light commercial air conditioning and heat pump systems. Rated at 3/4 horsepower and 115 volts, this motor operates across a speed range of 400 to 1200 RPM with a counterclockwise (CCW) shaft rotation. Licensed HVAC technicians install this motor as a direct replacement when the existing condenser fan motor fails due to bearing wear, overheating, or electrical fault. Its variable speed range supports proper airflow across the condenser coil, which is critical to maintaining system efficiency and refrigerant condensing pressure within spec.

This motor is intended for installation in the condenser section of split-system air conditioners and heat pumps. It is suited for residential rooftop and ground-mounted condensing units where a 115-volt single-phase motor is specified. Technicians select this motor when the original unit calls for a CCW-rotation condenser fan motor at the 3/4 HP rating. Always verify shaft diameter, mounting configuration, and rotation direction against the original motor nameplate before installation.

Key Features

• 3/4 HP output for condenser fan duty in split-system cooling equipment
• 115-volt single-phase operation compatible with standard residential power supply
• 400 to 1200 RPM operating speed range supports variable airflow requirements
• Counterclockwise (CCW) shaft rotation as viewed from the shaft end
• OEM-style replacement engineered to match original motor specifications

Compatibility

Designed as an OEM-style replacement condenser fan motor for INTERNATIONAL COMFORT PRODUCTS condensing units that specify a 115-volt, 3/4 HP, CCW motor in the 400-1200 RPM range. Verify the original motor nameplate data before ordering.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all power to the condensing unit before removing the existing motor. Confirm shaft diameter, mounting stud pattern, and rotation direction match the original motor before securing the replacement. Follow all applicable local codes and manufacturer wiring diagrams when reconnecting motor leads.

Technical Specifications

• Voltage: 115 volts
• Horsepower: 3/4 HP
• Speed Range: 400-1200 RPM
• Rotation: Counterclockwise (CCW)

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: 1196877
