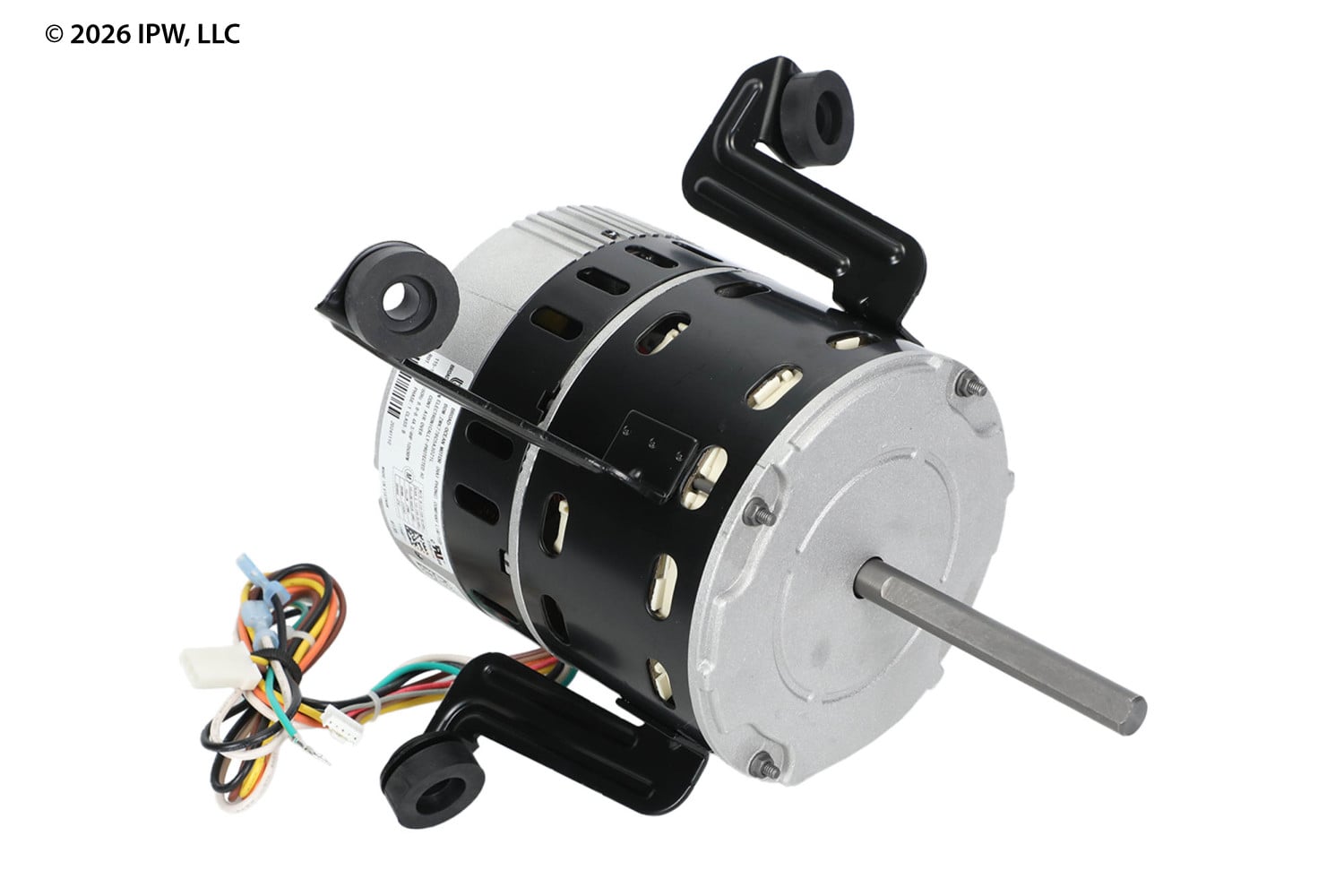

Icp 1196877 Condenser Fan Motor 3/4 Hp 115V Ccw

Product Description

The International Comfort Products 1196877 is a single-phase condenser fan motor rated at 3/4 horsepower and 115 volts. It operates across a speed range of 400 to 1200 RPM with counterclockwise (CCW) shaft rotation. This motor drives the condenser fan blade in split-system air conditioning and heat pump equipment, moving air across the outdoor coil to reject heat. Installation is performed by licensed HVAC technicians during routine equipment service or compressor section rebuilds where the existing fan motor has failed or is drawing excessive current.

The 1196877 is suited for outdoor condensing unit applications in residential and light commercial HVAC systems. Its variable speed range of 400 to 1200 RPM allows compatibility with multi-tap or variable-speed fan circuits found in standard split-system condensing units. Counterclockwise rotation must be confirmed before installation to ensure correct airflow direction through the condenser coil. No specific compatible model numbers were provided in the product data.

Key Features

• 3/4 HP output for reliable condenser fan blade drive in outdoor condensing units
• 115-volt single-phase operation suits standard residential power supply configurations
• 400 to 1200 RPM operating range supports multi-tap fan circuit applications
• Counterclockwise shaft rotation for correct condenser airflow direction
• Direct OEM part number replacement for serviceability and fit confidence

Compatibility

Designed as an OEM-style replacement condenser fan motor for residential and light commercial split-system air conditioning and heat pump condensing units requiring a 3/4 HP, 115-volt, CCW rotation motor.

Installation Notes

A licensed HVAC technician should perform this replacement. Disconnect and lock out all power to the condensing unit before removing the fan blade or motor assembly. Confirm shaft rotation direction and motor mounting orientation before final assembly, as incorrect rotation will reduce system efficiency and may damage the coil. Follow all applicable local electrical codes and manufacturer wiring diagrams when reconnecting motor leads.

Technical Specifications

• Voltage: 115 volts
• Horsepower: 3/4 HP
• Speed Range: 400 to 1200 RPM
• Rotation: Counterclockwise (CCW)

Standard Information

• Brand: International Comfort Products
• Manufacturer Part Number: 1196877
