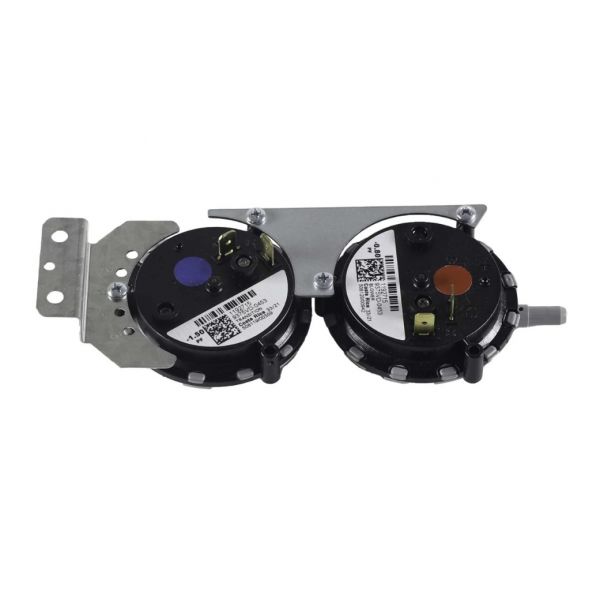

Icp 1192715 Vent Pressure Switch Assembly

Product Description

The INTERNATIONAL COMFORT PRODUCTS 1192715 is a vent pressure switch assembly designed to monitor and regulate pressure within the venting system of residential and light-commercial heating appliances. The switch continuously reads venting pressure and opens the control circuit when pressure falls outside safe operating parameters, preventing the accumulation of combustion byproducts including carbon monoxide. It is an OEM-specified component installed by licensed HVAC technicians during routine maintenance or as a direct replacement when a failed switch triggers a no-heat condition. At 0.27 pounds, it is a compact, drop-in assembly suited to standard furnace control boards.

This vent pressure switch assembly is typically found in gas furnace, boiler, and water heater applications where induced-draft or forced-draft venting is used. It integrates with the appliance control board to confirm adequate draft before allowing the burner to fire, serving as a critical safety interlock in the ignition sequence. Installations in residential systems are the most common application, though the same design principle applies in light-commercial heating equipment.

Key Features

• Monitors venting system pressure continuously to verify safe draft conditions before and during burner operation
• Opens control circuit automatically when pressure is outside acceptable range, shutting down the heating system to prevent hazardous gas accumulation
• OEM part number 1192715 ensures direct replacement fit without modification
• Lightweight assembly at 0.27 pounds for easy handling during service calls
• Compatible with induced-draft and forced-draft venting configurations typical in gas furnaces and boilers

Compatibility

Designed as an OEM-style replacement vent pressure switch assembly for INTERNATIONAL COMFORT PRODUCTS heating equipment requiring part number 1192715.

Installation Notes

Installation should be performed by a licensed HVAC technician in accordance with applicable mechanical codes and the appliance manufacturer's service documentation. Before servicing, shut down the heating appliance and disconnect power at the breaker or service switch. Inspect the pressure port tubing and hose connections for cracks or blockages before installing the new switch, as a blocked port can cause a new switch to trip immediately. Verify correct pressure rating on the replacement switch matches the original component before completing the installation.

Technical Specifications

• Weight: 0.27 pounds
• Product Type: Vent Pressure Switch Assembly

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: 1192715
