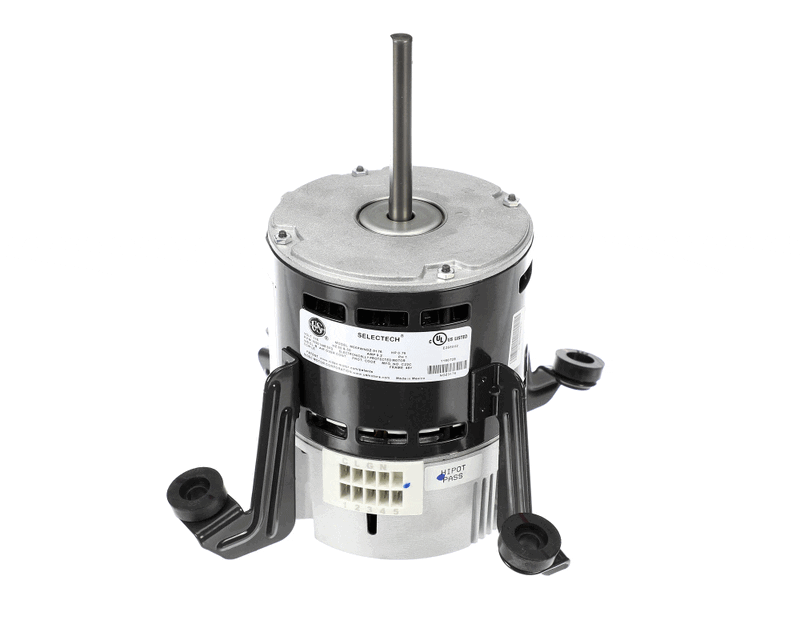

Icp 1190728 Pwm Ecm Blower Motor 3/4 Hp 115V Furnace

Product Description

The INTERNATIONAL COMFORT PRODUCTS 1190728 is a PWM ECM blower motor designed for residential gas furnace applications. Operating on 115 volts at 50/60 Hz single phase, this 3/4 HP motor controls blower fan speed to regulate airflow and stabilize indoor temperatures. ECM technology allows variable speed operation, which improves system efficiency and comfort compared to single-speed PSC motors. At 18.725 pounds and with overall dimensions of 16.1 inches by 15.65 inches by 11.05 inches, this is a substantial direct-replacement assembly intended for installation by licensed HVAC technicians.

This motor is suited for residential forced-air furnace installations where variable airflow control is required. It fits the G96VTN, F96VTN, and N96VSN unit families, among others. Consult the full model fit list from the manufacturer to confirm compatibility with the specific furnace serial and model number on site before ordering. This motor is a common service replacement in high-efficiency furnace platforms that rely on ECM-driven blower assemblies to meet rated efficiency levels.

Key Features

• PWM ECM variable speed motor for precise airflow control in high-efficiency furnaces
• Rated at 3/4 HP with 115 volt single phase input at 50/60 Hz
• OEM replacement motor maintaining original design specifications
• Compatible with G96VTN, F96VTN, and N96VSN furnace units and more
• Substantial build at 18.725 pounds supporting long-term reliability in continuous blower duty

Compatibility

Fits G96VTN, F96VTN, and N96VSN furnace units among others. Consult the full manufacturer fit list to verify compatibility with the specific furnace model and serial number before installation.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the furnace before removing the existing blower motor. ECM motors involve low-voltage control wiring in addition to line voltage connections — handle all wiring per NEC requirements and the furnace manufacturer wiring diagram. Confirm the replacement motor shaft orientation and mounting configuration match the original before final assembly.

Technical Specifications

• Horsepower: 3/4 HP
• Voltage: 115 volts
• Frequency: 50/60 Hz
• Phase: Single Phase
• Motor Type: PWM ECM
• Length: 16.1 inches
• Width: 15.65 inches
• Height: 11.05 inches
• Weight: 18.725 pounds

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: 1190728
