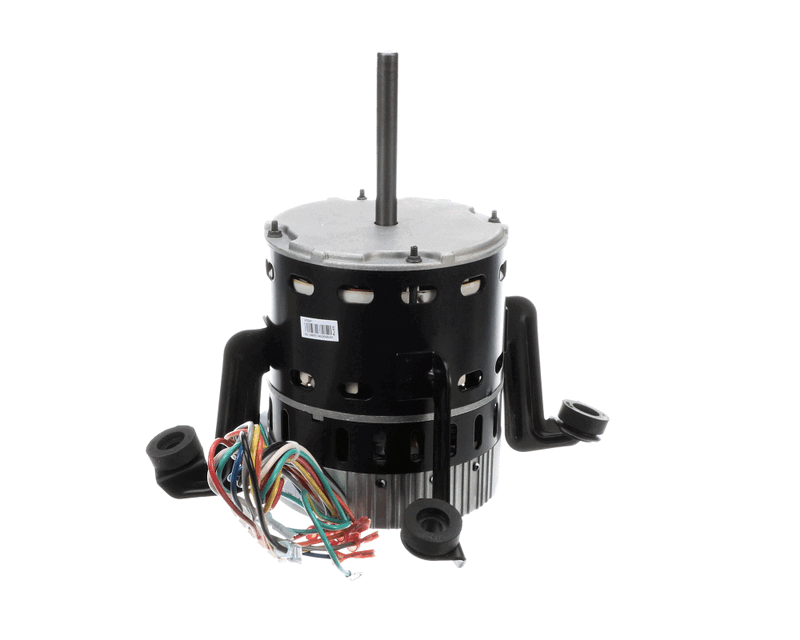

Icp 1190664 Blower Motor 3/4 Hp 115-120V Furnace

Product Description

The INTERNATIONAL COMFORT PRODUCTS 1190664 is a genuine OEM replacement blower motor designed to restore proper airflow in residential gas furnace systems. Rated at 3/4 HP and engineered for 115-120 volt operation at 50/60 Hz, this motor drives the blower wheel that moves conditioned air through the heat exchanger and into the duct system. Consistent, balanced airflow is critical to safe furnace operation — an undersized or failing blower motor can cause heat exchanger overheating and system shutdown. Licensed HVAC technicians install this motor as a direct OEM-spec replacement to bring the system back within manufacturer safety parameters.

This blower motor is suited for residential forced-air furnace applications. It is confirmed compatible with N95ESN0601714A1, N95ESM0601714A1, and N95ESN series units, among others. The OEM designation means the motor matches the original specifications for voltage, horsepower, mounting configuration, and physical dimensions, reducing installation time and eliminating compatibility guesswork on supported equipment.

Key Features

• Genuine OEM replacement part from INTERNATIONAL COMFORT PRODUCTS
• Rated 3/4 HP for adequate blower wheel drive force in residential furnace systems
• Dual-voltage rated at 115-120 volts with 50/60 Hz compatibility
• Direct-fit OEM dimensions support straightforward swap-out installation
• Supports safe heat exchanger operation by maintaining consistent airflow

Compatibility

Confirmed compatible with N95ESN0601714A1, N95ESM0601714A1, and N95ESN series furnace units. Refer to the full model compatibility list for additional supported units.

Installation Notes

Installation should be performed by a licensed HVAC technician. Always disconnect power at the breaker and verify the circuit is de-energized before removing the existing motor or handling any wiring. Follow the original wiring diagram on the furnace cabinet door when reconnecting motor leads. Refer to local mechanical and electrical codes, including NEC requirements, for proper motor replacement procedures.

Technical Specifications

• Horsepower: 3/4 HP
• Voltage: 115-120 volts
• Frequency: 50/60 Hz
• Length: 12.55 inches
• Width: 11.5 inches
• Height: 11.25 inches
• Weight: 15.9 pounds

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: 1190664
