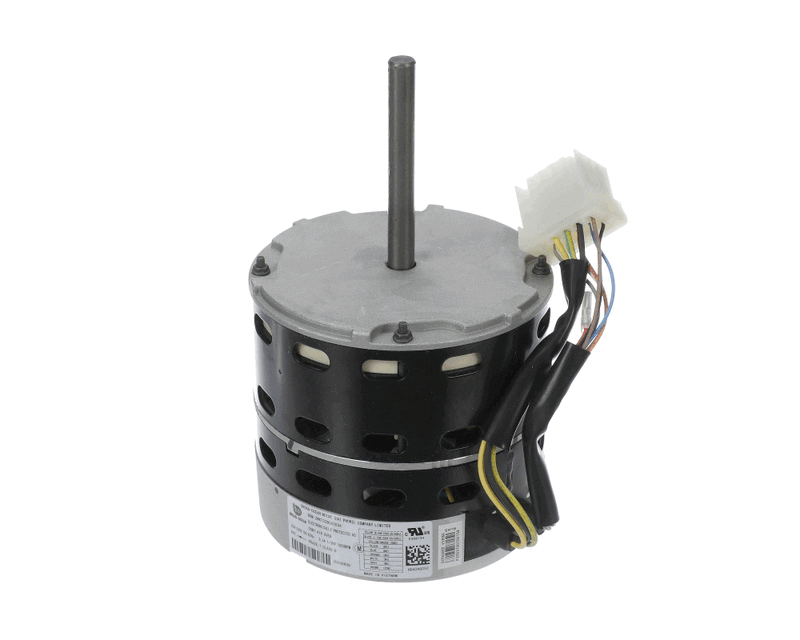

Icp 1190583 Ecm Blower Motor 1/3 Hp 208-230V 1050 Rpm

Product Description

The INTERNATIONAL COMFORT PRODUCTS 1190583 is an ECM blower motor with integrated control module designed for variable-speed airflow management in forced-air HVAC systems. Rated at 1/3 HP and operating on 208-230 volts single-phase power at 50/60 Hz, this motor runs at 1050 RPM with counterclockwise rotation on the lead end. ECM technology allows the motor to modulate airflow in response to system demand, delivering more consistent static pressure and improved efficiency compared to standard PSC motors. Licensed HVAC technicians install this component as a direct OEM-style replacement during blower section service or system repairs.

This motor is suited for residential and light commercial forced-air applications where variable-speed blower performance is required. The integrated control module eliminates the need for a separate motor controller, simplifying the replacement process. It is intended for single-phase electrical supply at 208-230 volts and is compatible with systems requiring a 1050 RPM, 1/3 HP ECM blower motor with counterclockwise lead-end rotation. Where the original equipment specified this configuration, this unit serves as the OEM replacement.

Key Features

• ECM variable-speed technology for demand-based airflow modulation
• Integrated control module eliminates the need for a separate external controller
• Rated 1/3 HP at 1050 RPM for consistent blower section performance
• 208-230V single-phase input compatible with standard residential and light commercial supply voltage
• Counterclockwise rotation (lead end) for correct directional airflow in supported systems
• Dual-frequency rated at 50/60 Hz for application flexibility

Compatibility

Designed as an OEM-style replacement ECM blower motor for INTERNATIONAL COMFORT PRODUCTS forced-air systems requiring a 1/3 HP, 208-230V, 1050 RPM, single-phase motor with an integrated control module.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the air handler or furnace before removing the existing blower motor. Verify that supply voltage, rotation direction, and mounting configuration match the replacement motor specifications before energizing the system. Refer to the equipment wiring diagram and follow all applicable local codes during reinstallation.
