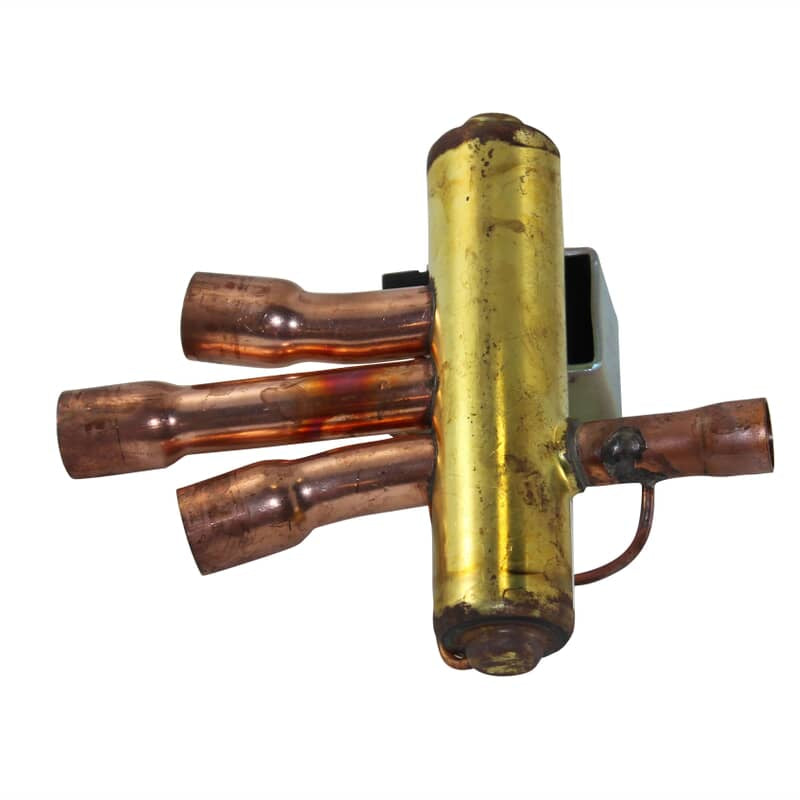

Icp 1188064 Reversing Valve with Coil 24VDC

Product Description

The INTERNATIONAL COMFORT PRODUCTS 1188064 is a genuine OEM reversing valve with coil designed for heat pump systems. The reversing valve shifts refrigerant flow direction between heating and cooling modes, making it a critical component in the refrigerant circuit. Operating at 24 volts DC, it actuates via a solenoid coil that controls the slide mechanism inside the valve body. The ODF solder connection type ensures a brazed, leak-resistant joint suited to the refrigerant pressures found in residential heat pump systems. This part is sourced directly from the OEM, meaning it matches original system tolerances without adaptation.

This reversing valve with coil is used in residential heat pump applications where reliable mode switching between heating and cooling is required. It is installed in the refrigerant line set as part of the refrigerant circuit and is typically serviced during heat pump repairs when the system fails to switch modes, produces inadequate heating or cooling, or when coil or valve body failure is confirmed. Compatible models listed in the product data include CVH825GKA301 and HVH825GKA301.

Key Features

• Genuine OEM replacement part matched to original system tolerances
• 24-volt DC solenoid coil for reliable valve actuation
• ODF solder connection type for brazed, leak-resistant refrigerant line joining
• Shifts refrigerant flow direction to support both heating and cooling modes
• Direct replacement reduces risk of fitment or performance issues

Compatibility

Compatible models include CVH825GKA301 and HVH825GKA301. Verify the model and existing reversing valve configuration before ordering.

Installation Notes

Reversing valve replacement is performed by a licensed HVAC technician and requires recovery of the refrigerant charge before any refrigerant circuit work begins, in accordance with EPA Section 608 regulations. De-energize the heat pump system and disconnect power at the disconnect box before accessing the valve. ODF solder connections require a torch, appropriate brazing alloy, and nitrogen purge to prevent internal oxidation during the brazing process. After installation, the system must be leak-tested, evacuated, and recharged to manufacturer specifications before returning to service.

Technical Specifications

• Voltage: 24 volts DC
• Connection Type: ODF solder
• Length: 1 inch
• Width: 1 inch
• Height: 1 inch

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: 1188064
