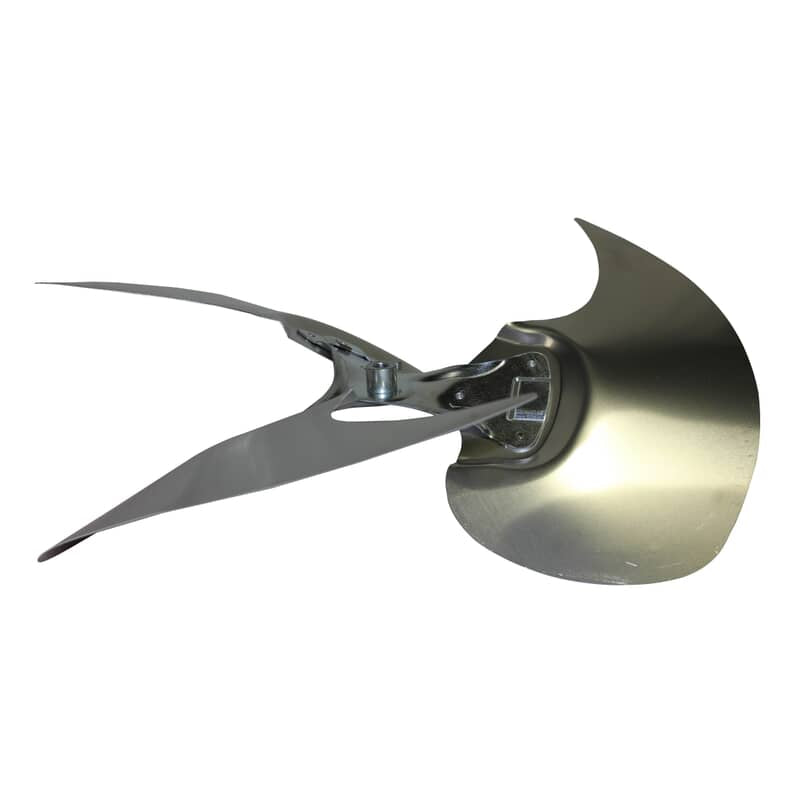

Icp 1188003 Fan Blade 825 Rpm 3-blade Aluminum Ccw

Product Description

The INTERNATIONAL COMFORT PRODUCTS 1188003 is a genuine OEM replacement fan blade engineered for reliable airflow performance in residential and light commercial HVAC systems. This three-blade aluminum fan blade operates at 825 RPM with a counterclockwise (CCW) rotation and a 30-degree pitch, delivering consistent airflow across the condenser or evaporator coil section. Designed to OEM tolerances, the blade is precisely balanced to minimize vibration and prevent wobble-induced bearing wear or structural fatigue. Licensed HVAC technicians handling condenser fan motor replacements or seasonal maintenance will find this part a direct drop-in match for supported equipment.

This fan blade is suited for split-system and packaged HVAC equipment where steady airflow over the heat exchange coil is critical to system efficiency and compressor longevity. It is commonly installed during condenser fan motor replacements, post-storm inspections, or planned preventive maintenance on supported model lines. The CCW rotation and 30-degree pitch are matched to the airflow path of the original equipment design, making orientation accuracy essential during installation.

Key Features

• Genuine OEM replacement part from INTERNATIONAL COMFORT PRODUCTS
• Three-blade aluminum construction for lightweight strength and corrosion resistance
• 825 RPM operating speed matched to OEM motor specifications
• Counterclockwise (CCW) rotation with 30-degree blade pitch for optimized airflow
• Precision-balanced design reduces vibration and extends motor bearing life

Compatibility

Compatible with the following INTERNATIONAL COMFORT PRODUCTS models: CVA937GKA101, HVA937GKA101, HVA948GKA101.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the unit before removing the existing fan blade or motor assembly. Verify CCW rotation orientation before securing the blade to the motor shaft, as incorrect rotation direction will significantly reduce airflow and system efficiency. Follow applicable local codes and the equipment manufacturer service documentation when torquing the hub set screw to the motor shaft.

Technical Specifications

• Blade Count: 3
• Material: Aluminum
• RPM: 825
• Rotation: Counterclockwise (CCW)
• Pitch: 30 degrees

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: 1188003
