Icp 1186426 Condenser Fan Motor 1/4 Hp 380/460V

Product Description

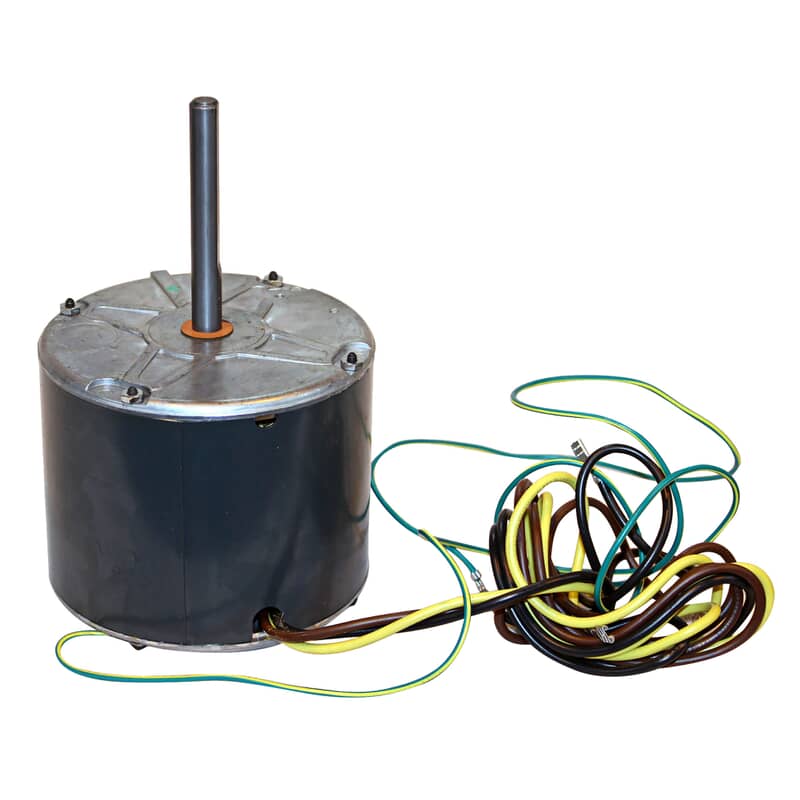

The INTERNATIONAL COMFORT PRODUCTS 1186426 is a single-phase OEM condenser fan motor rated at 1/4 horsepower and designed for use in residential and light commercial air conditioning condensing units. Operating at 380/460 volts with a fixed speed of 840 RPM and counterclockwise rotation on the lead end, this motor drives the condenser fan blade to maintain proper airflow across the coil. Licensed HVAC technicians install this motor as a direct OEM replacement, restoring heat rejection performance and system efficiency when the original unit fails due to wear or electrical fault.

This motor is suited for installation in condensing units where a single-speed, single-phase motor is specified at the 1/4 HP rating. It is a direct-fit OEM replacement intended for split-system and packaged air conditioning equipment operating on 380/460-volt power supplies. Compatible models listed in product documentation include NH4H448ALA100 and NH4H460ALA100. Verify the rotation direction, voltage, horsepower, and RPM against the original motor nameplate before installation.

Key Features

• 1/4 HP single-phase condenser fan motor for OEM replacement applications
• Rated at 380/460 volts for compatibility with commercial-grade power supplies
• Fixed 840 RPM output for consistent airflow and heat rejection
• Counterclockwise rotation on lead end — verify against original before installing
• Single-speed design suits direct-drive condenser fan assemblies

Compatibility

Compatible models include NH4H448ALA100 and NH4H460ALA100. Confirm horsepower, voltage, RPM, rotation, and shaft specifications match the original motor before ordering.

Installation Notes

Installation should be performed by a licensed HVAC technician in accordance with local mechanical codes and NEC requirements. Disconnect and lock out all power to the condensing unit before removing the existing motor or handling any wiring. Confirm that the replacement motor rotation, shaft diameter, and mounting configuration match the original unit specifications before securing and wiring. Do not energize the unit until all electrical connections are complete and the fan blade is properly secured and balanced.

Technical Specifications

• Horsepower: 1/4 HP
• Voltage: 380/460 volts
• RPM: 840
• Speeds: 1
• Rotation: CCW Lead End
• Phase: 1

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: 1186426
