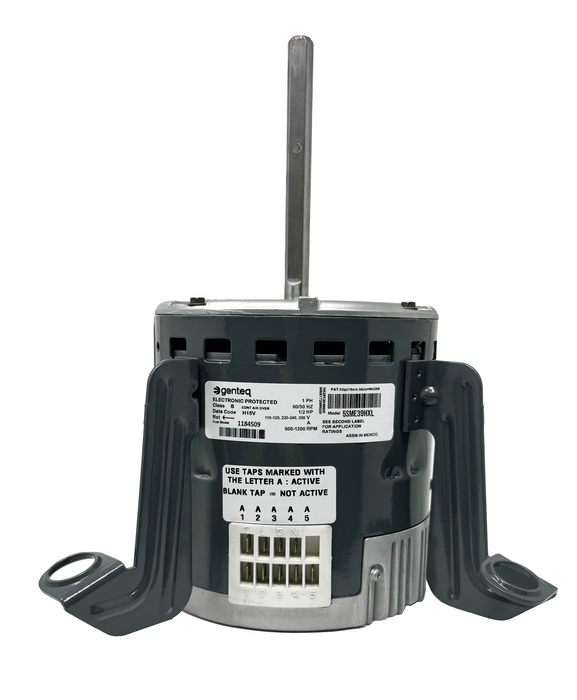

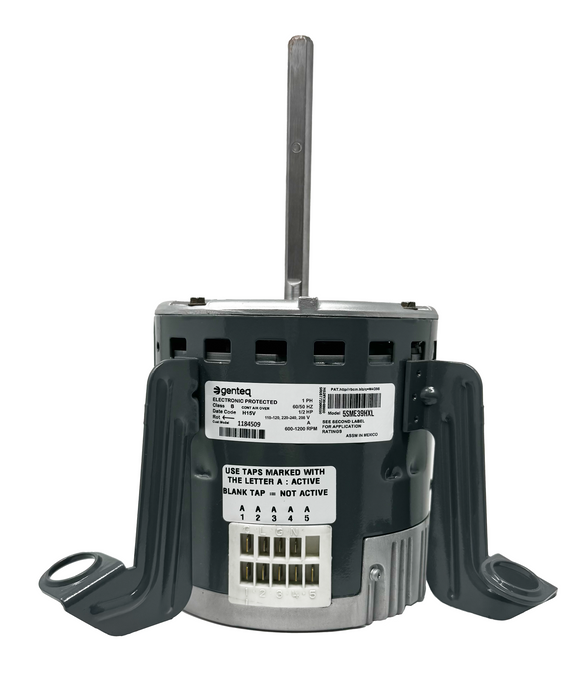

Icp 1184509 Ecm X13 Blower Motor 1/2 Hp

Product Description

The International Comfort Products 1184509 is an ECM X13 Endura Pro blower motor rated at 1/2 HP for use in residential and light commercial HVAC air handler and furnace applications. ECM (electronically commutated motor) technology delivers variable-speed airflow control with significantly lower energy consumption compared to traditional PSC motors. The X13 platform operates on a fixed torque control strategy, making it a direct-drive replacement that works with existing low-voltage control wiring without requiring a separate module or communicating thermostat. Licensed HVAC technicians handle installation as part of blower section service or motor replacement calls.

This motor is suited for forced-air systems where the original equipment specified an ECM X13 or Endura Pro series motor. It is commonly installed in air handlers, gas furnaces, and heat pump fan coil units in residential settings. The 1/2 HP rating positions it in a widely used capacity range for mid-size duct systems. Installers working on blower compartment replacements will find the X13 design compatible with standard mounting configurations used across a range of ICP-platform equipment.

Key Features

• ECM X13 Endura Pro variable-speed technology for energy-efficient airflow
• Fixed torque control strategy works with standard low-voltage wiring
• 1/2 HP output suitable for mid-size residential forced-air systems
• Single-phase operation at 115 volts
• OEM-style replacement designed for ICP-platform HVAC equipment

Compatibility

Designed as an OEM-style replacement ECM blower motor for International Comfort Products platform forced-air furnaces and air handlers specifying an X13 or Endura Pro series 1/2 HP motor.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the unit before removing the blower assembly or disconnecting the motor harness. Verify supply voltage matches the motor nameplate rating before energizing. Follow local mechanical and electrical codes, including applicable NEC requirements for motor branch circuit protection, when completing the replacement.

Technical Specifications

• Motor Type: ECM X13 Endura Pro
• Horsepower: 1/2 HP
• Voltage: 115 volts
• Phase: Single-phase
• Speed: Variable

Standard Information

• Brand: International Comfort Products
• Manufacturer Part Number: 1184509
