Icp 1178163 Gas Valve Natural Gas 24V 1-stage

Product Description

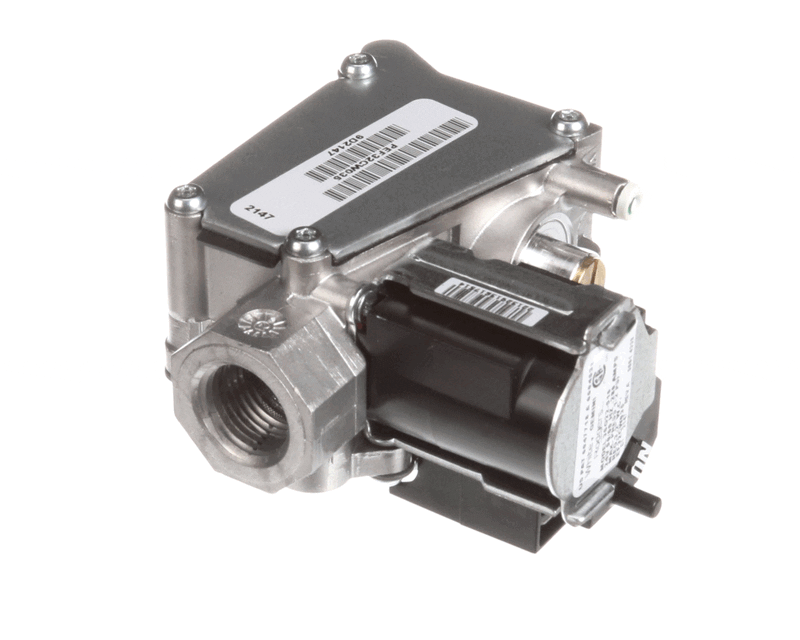

The INTERNATIONAL COMFORT PRODUCTS 1178163 is a single-stage natural gas valve designed to regulate and control gas flow within a residential or light-commercial HVAC system. Operating on 24 volts at 50/60 Hz, this valve provides automated on/off control of the gas supply to the burner assembly. It is an OEM replacement part, meaning it meets the original design specifications for fit, function, and safety. Licensed HVAC technicians install this valve during routine maintenance, equipment failure diagnosis, or system rehabilitation when the original valve has failed, is leaking, or is no longer operating reliably.

This gas valve is suited for natural gas furnace applications where a single-stage control configuration is required. Single-stage valves operate at one fixed gas flow rate, making them common in standard-efficiency residential furnaces. The 24-volt control circuit is the industry-standard low-voltage signal used by most residential furnace control boards to energize the valve during a call for heat. This part is intended for installation by qualified HVAC technicians working on systems that originally shipped with this valve or a direct equivalent.

Key Features

• Single-stage natural gas control for consistent, reliable burner operation
• 24-volt low-voltage control circuit compatible with standard furnace control boards
• Rated for 50/60 Hz electrical frequency, suitable for North American systems
• OEM replacement part meeting original equipment fit and function specifications
• Compact form factor at 6 x 6 x 3 inches for installation in tight furnace cabinets

Compatibility

Designed as an OEM-style replacement gas valve for single-stage natural gas furnaces requiring a 24-volt, 50/60 Hz control valve. Confirm the original part number on the existing valve or equipment documentation before installation.

Installation Notes

Gas valve replacement must be performed by a licensed HVAC technician in accordance with local codes and IFGC requirements. Shut off the gas supply at the service valve and disconnect electrical power to the furnace before beginning work. Do not over-tighten gas line fittings; use approved pipe thread sealant rated for natural gas on all threaded connections. After installation, perform a leak test on all fittings before restoring power and initiating a test cycle.
