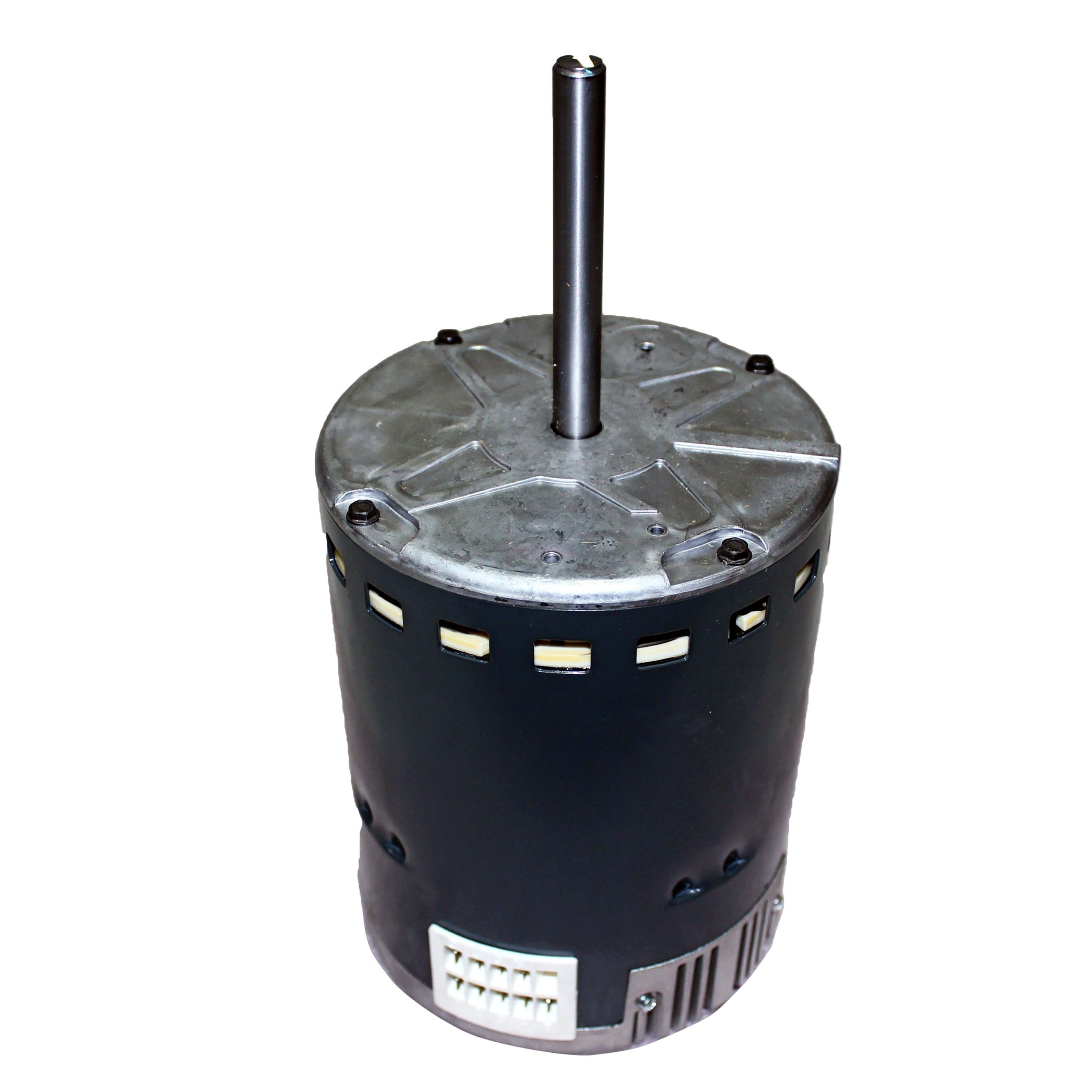

Icp 1177597 Belt Drive Motor 208/230V 1050 Rpm

Product Description

The INTERNATIONAL COMFORT PRODUCTS 1177597 is a single-speed belt drive motor designed for forced-air HVAC systems requiring consistent airflow and reliable circulation. Rated at 208/230 volts with a 1050 RPM output and clockwise rotation, this motor is built to OEM factory tolerances, ensuring that wiring connectors, rotational direction, and mounting dimensions align with original equipment specifications without modification. It mounts vertically via a belly band configuration. Licensed HVAC technicians handling blower motor replacements in air handlers and package units are the primary installers.

This belt drive motor is suited for residential and light commercial forced-air applications where a belt-driven blower assembly is used. It is confirmed compatible with the following model units: PGN460130H00A1, PHD460000H000C1, and PHD460000KTP0C1. The single-phase, single-speed design fits systems that do not require multi-speed or ECM motor control, making it a straightforward drop-in OEM-style replacement in applicable equipment.

Key Features

• OEM-matched factory tolerances for connector, rotation, and mounting alignment
• 208/230-volt dual-voltage rating for flexible installation
• 1050 RPM fixed output speed for consistent belt-driven blower performance
• Clockwise rotation matches original equipment directional requirement
• Vertical shaft with belly band mount for secure, stable installation
• Single-phase design suited for standard residential and light commercial power supplies

Compatibility

Confirmed compatible with INTERNATIONAL COMFORT PRODUCTS models PGN460130H00A1, PHD460000H000C1, and PHD460000KTP0C1. Always verify the existing motor nameplate data against this part before installation.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the unit before removing the existing motor or handling any wiring. Verify belt tension and pulley alignment after mounting to avoid premature wear. Consult local mechanical and electrical codes, including applicable NEC requirements, before completing the installation.
