Icotek 70354 Kel-dpz-hd 40|8

Product Description

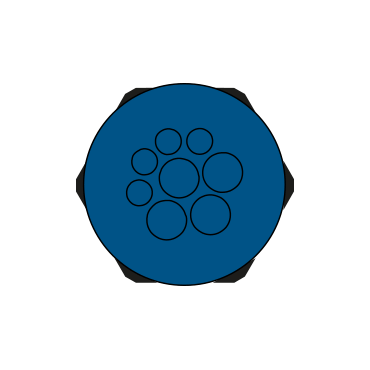

The ICOTEK 70354 KEL-DPZ-HD cable entry plates with metric thread are designed for installation in food processing and packaging machines. Developed according to Hygienic Design guidelines, the visible side of the cable entry plate is free of dirt-collecting recesses, and the surface is very smooth. The cable entry plates route several cables and hoses and seal them acc. to IP65/66/67/68.

• Elastomer of the cable entry plate made of material according to 1935/2004/EG, (EU) 10/2011
• FDA compliant
• Developed according to hygienic design guidelines (EHEDG)

Product Highlights

Hygienic design, very flat design, and very smooth surface. Suitable for metric cut-outs with high resistance to aromatic solvents, oils, greases, and mineral products.

Product Information

Standard Information

• Brand: ICOTEK
• Manufacturer Part Number: 70354
• Country of Origin: Germany

Technical Specifications

• Part No.: 70354
• EAN: 4251269322815
• Package quantity: 5
• For max. no. of cables: 8
• Max. cable diameter: 10.2 mm
• Height: 22 mm
• Mounting height: 8 mm
• Color: blue (similar RAL 5005)
• External diameter: 52 mm
• Cut-out size, metric: M40
• Cut-out size, round: 40.4 mm
• Thread: M40 × 1,5
• Thread length: 14 mm
• Clamping range: 4 x 3.2 - 6.5 mm 4 x 5 - 10.2 mm
• IP rating (EN 60529): IP54, IP55, IP64, IP65, IP66, IP67, IP68
• Flame class: UL94-HB
• Operating temperature: -40 C° to 80 C°
• Material: Elastomer Base frame: Polyamide
• Properties: silicone free, halogen free, resistant to oil and mold, higher chemical resistance
• Alternate Mfr Part Number: KEL-DPZ-HD 40/8
• Brand: icotek
• Manufacturer Part Number: 70354
