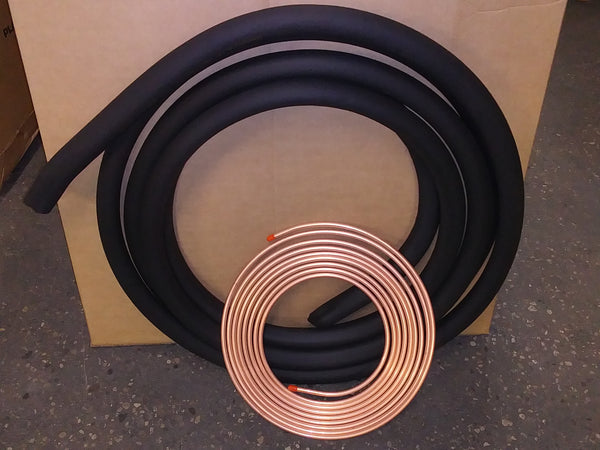

Icool f387812030 Sweat Lineset 3/8 X 7/8 in 30 Ft

Product Description

The ICOOL f387812030 is a pre-insulated refrigerant lineset designed for split-system air conditioning and heat pump installations. The set consists of a 3/8-inch liquid line and a 7/8-inch suction line, with sweat (brazed) copper connections on both ends. Insulation thickness is 1/2 inch, providing thermal protection on the suction line to minimize condensation and heat gain. At a total weight of approximately 20.13 pounds, this 30-foot lineset covers standard residential and light-commercial run lengths between the indoor air handler and outdoor condensing unit. Licensed HVAC technicians perform this work as part of new installations or equipment changeouts.

This lineset is suited for residential and light-commercial split-system HVAC applications where the indoor and outdoor units are within 30 feet of each other. The sweat connection type requires brazing at both the indoor coil and the outdoor unit service valves. The 3/8-inch liquid line and 7/8-inch suction line sizing is a common pairing for mid-range capacity split systems. It is typically routed through walls, chases, or exterior line-set covers depending on the installation layout.

Key Features

• 3/8-inch liquid line and 7/8-inch suction line configuration
• 30-foot total length for standard residential run distances
• Sweat (brazed) copper end connections
• 1/2-inch insulation on suction line to reduce heat gain and condensation
• Total weight of approximately 20.13 pounds for manageable handling on the job

Compatibility

Designed as an OEM-style replacement or new-installation lineset for residential and light-commercial split-system air conditioners and heat pumps using 3/8-inch liquid and 7/8-inch suction line connections with sweat fittings.

Installation Notes

Installation must be performed by a licensed HVAC technician holding an EPA Section 608 certification. Shut off all power to both the indoor and outdoor units before making any connections. Sweat connections require proper brazing technique with nitrogen purge flowing through the lines to prevent oxidation scale inside the copper. After installation, pressure-test and evacuate the lineset to the system manufacturer's required micron level before introducing refrigerant.

Technical Specifications

• Liquid Line Diameter: 3/8 inches
• Suction Line Diameter: 7/8 inches
• Length: 30 feet
• Connection Type: Sweat (Brazed)
• Insulation Thickness: 1/2 inch
• Weight: 20.13 pounds
• Type: Line Set Sweat

Standard Information

• Brand: ICOOL
• Manufacturer Part Number: f387812030
