Icool B145812025F 1/4 inches Ll x 5/8 inches Sl Mini Split Refrigerant Line Set w/ Flare Nuts, 1/2 inches Insulation (25 Ft.)

Product Description

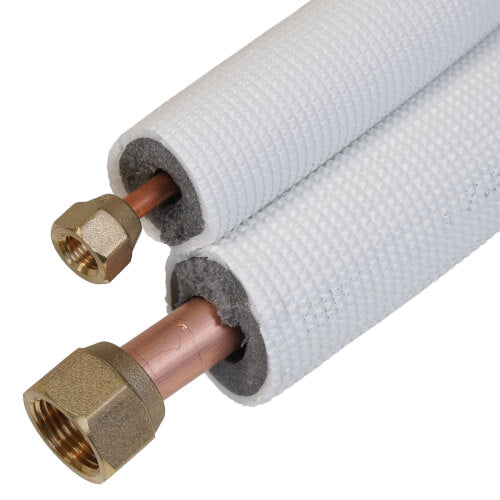

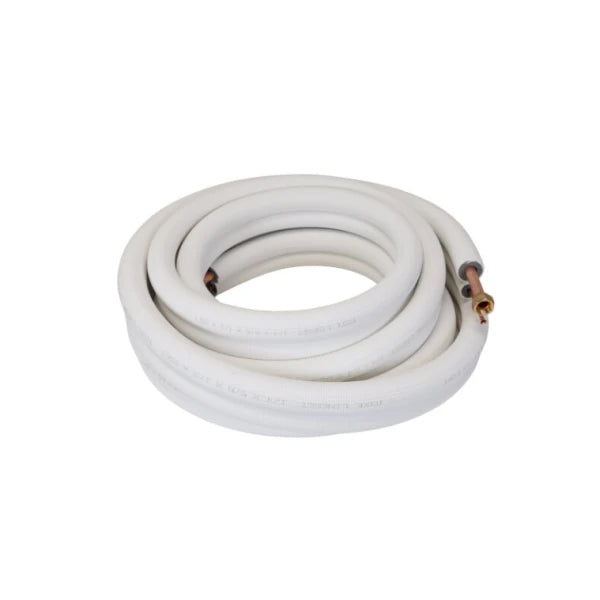

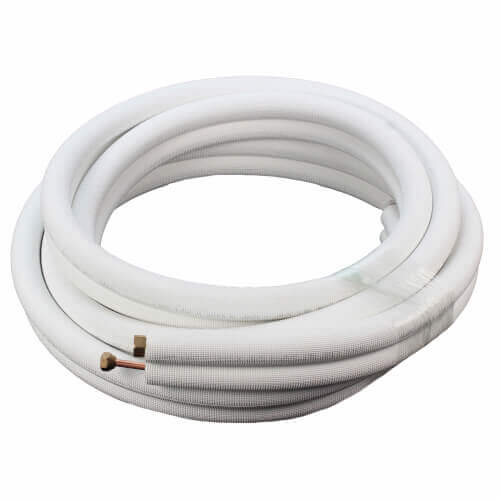

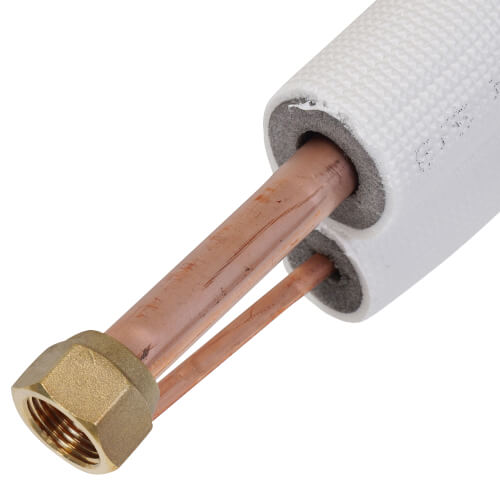

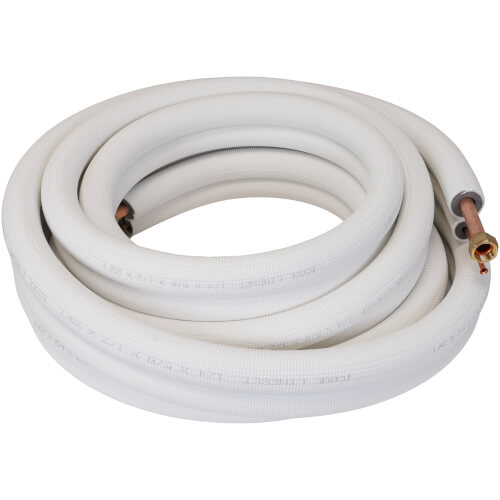

The ICOOL B145812025F is a flare end line set with flare nuts. Both lines are insulated and used for mini split air conditioning and heat pump systems. Features a 1/4-inch liquid line and a 5/8-inch suction line, both made of high-quality copper. The set comes pre-insulated with 1/2-inch thick closed-cell insulation.

• Insulated
• Cooling
• 1/4" liquid line and 5/8" suction line

Product Highlights

Designed for reliable refrigerant transfer in ductless mini split systems, ensuring system efficiency, leak prevention, and long-lasting performance.

Product Information

Standard Information

• Brand: ICOOL
• Manufacturer Part Number: B145812025F
• Country of Origin: USA

Technical Specifications

• Liquid Line: 1/4"
• Suction Line: 5/8"
• Insulation: 1/2"
• Length: 25 Feet
• Length (Feet): 25'
• Application: Ductless mini split HVAC systems
• Features: Chemical-Resistant, Fire-Retardant, Made in America, Non-Toxic, UV-Resistant, Insulated, With Insulation
• Insulation Thickness: 1/2"
• Diameter: 1/4 - 5/8 Inch
• Color: White
• End Style: Flared
• Insulation Material: PE Foam
• Material: Copper with closed-cell insulation
• Temperature Range: -40 - 248 Degrees F
• Type: Line Sets, Mechanical Parts
• Brand: iCool
• Liquid Line Size: 1/4 inch
• Suction Line Size: 5/8 inch
• Connection Type: Flared with nuts
• Use Case: Refrigerant transfer lines
• Installation: Pre-flared, ready to install
