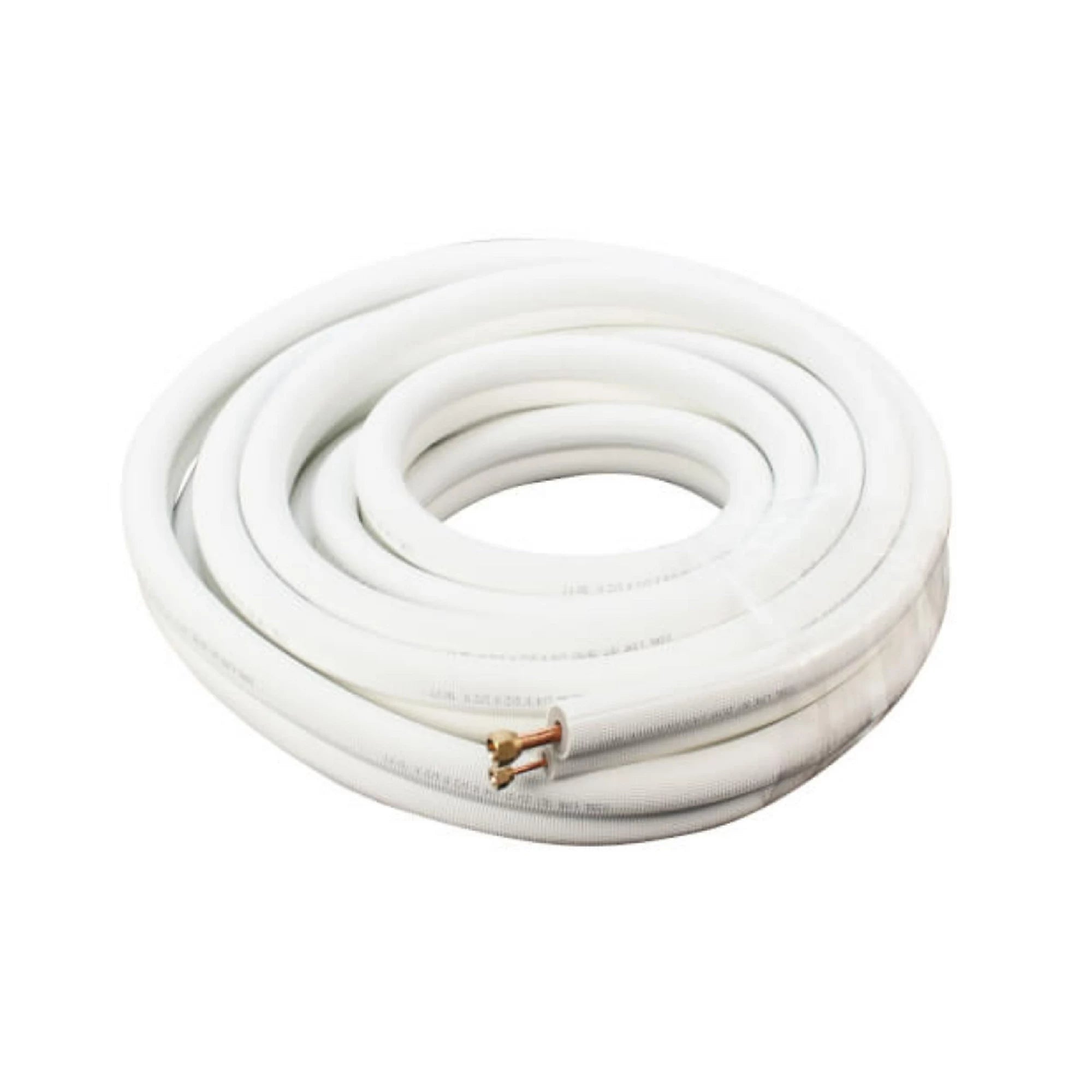

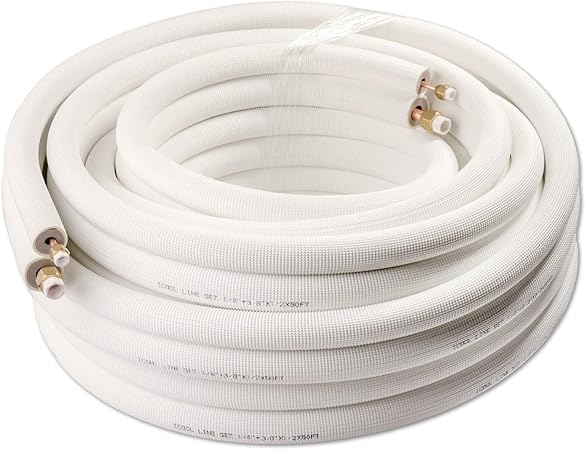

Icool B143812050f 1/4 inches x 3/8 inches with 1/2 inches thickness white pe insulation 50 feet

Product Description

The ICOOL B143812050F is a 1/4" x 3/8" with 1/2" thickness white PE insulation, both joined lineset, 50ft, flared nuts, Type B. This line set is compatible with most mini-split systems and features a durable copper construction for reliable use. It also boasts 1/2" thick PE fire-retardant insulation for ultimate protection and embossed film for excellent abrasion resistance.

• 1/4" x 3/8" with 1/2" thickness white PE insulation
• 50ft coil length
• Flared nuts

Product Highlights

Durable copper construction ensures long-term reliability, requires less maintenance, and is resistant to rusting. Features 1/2" thick PE fire-retardant insulation for ultimate protection.

Product Information

Standard Information

• Brand: ICOOL
• Manufacturer Part Number: B143812050F
• Country of Origin: USA

Technical Specifications

• Brand: ICOOL
• Coil Length: 50'
• Composition: ICPE
• Connection Type: Flare
• Height: 25.5
• Liquid Line - Insulation Thickness: 1/2"
• Liquid Line Size (OD): 1/4"
• Prop 65: No
• Suction Line - Insulation Thickness: 1/2"
• Suction Line Size (OD): 3/8"
• UL Recognized: Yes
• Width: 8.3125
• Country of Origin: USA
• Suction Line: 3/8"
• Liquid Line: 1/4"
• Insulation Thickness: 1/2 Inch
• Application: Mini Split Systems
• End Style: Flared
• Features: Chemical-Resistant, Fire-Retardant, Made in America, Non-Toxic, UV-Resistant, Insulated, With Insulation
• Insulation Material: PE Foam
• Material: Copper, Metal
• Temperature Range: -40 - 248 Degrees F
• Type: Line Sets, Mechanical Parts
• Nominal Wall Thickness: 0.0256 inches
• Outside Diameter: 0.25 Inches
• Item Length: 50 Feet
