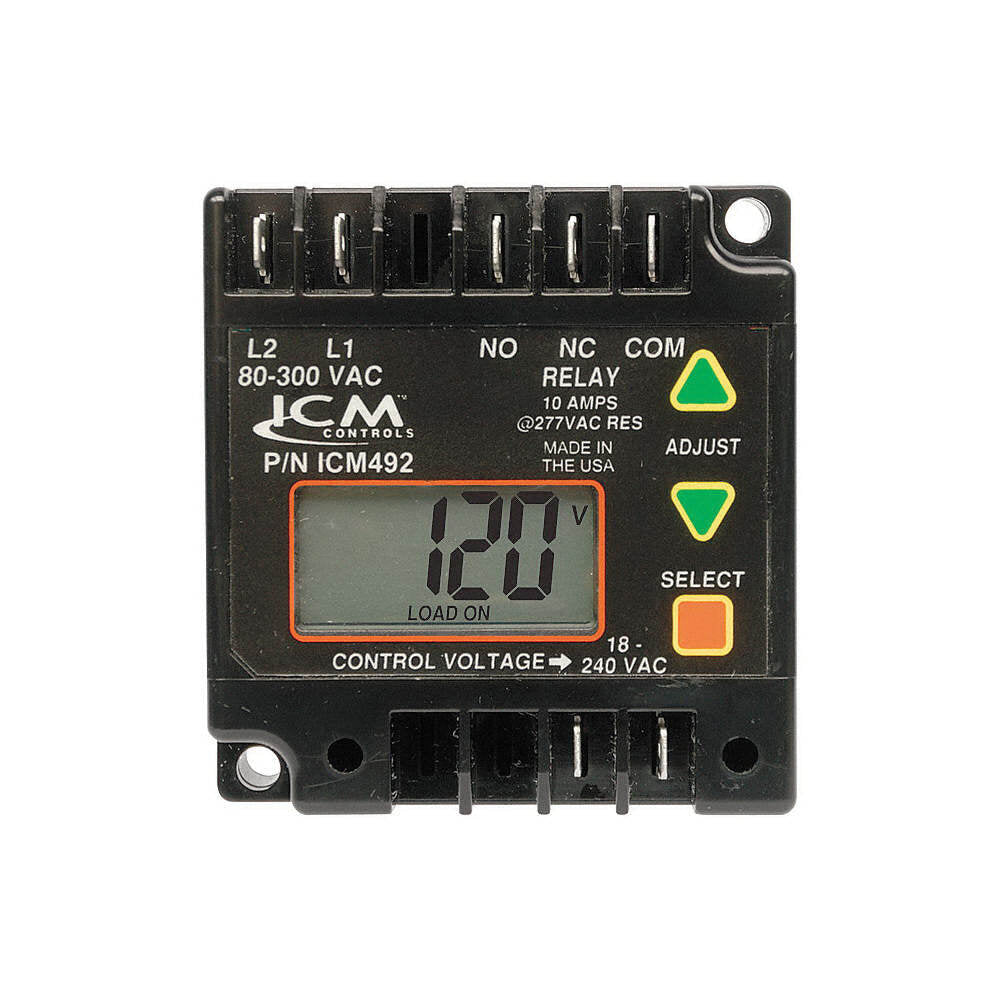

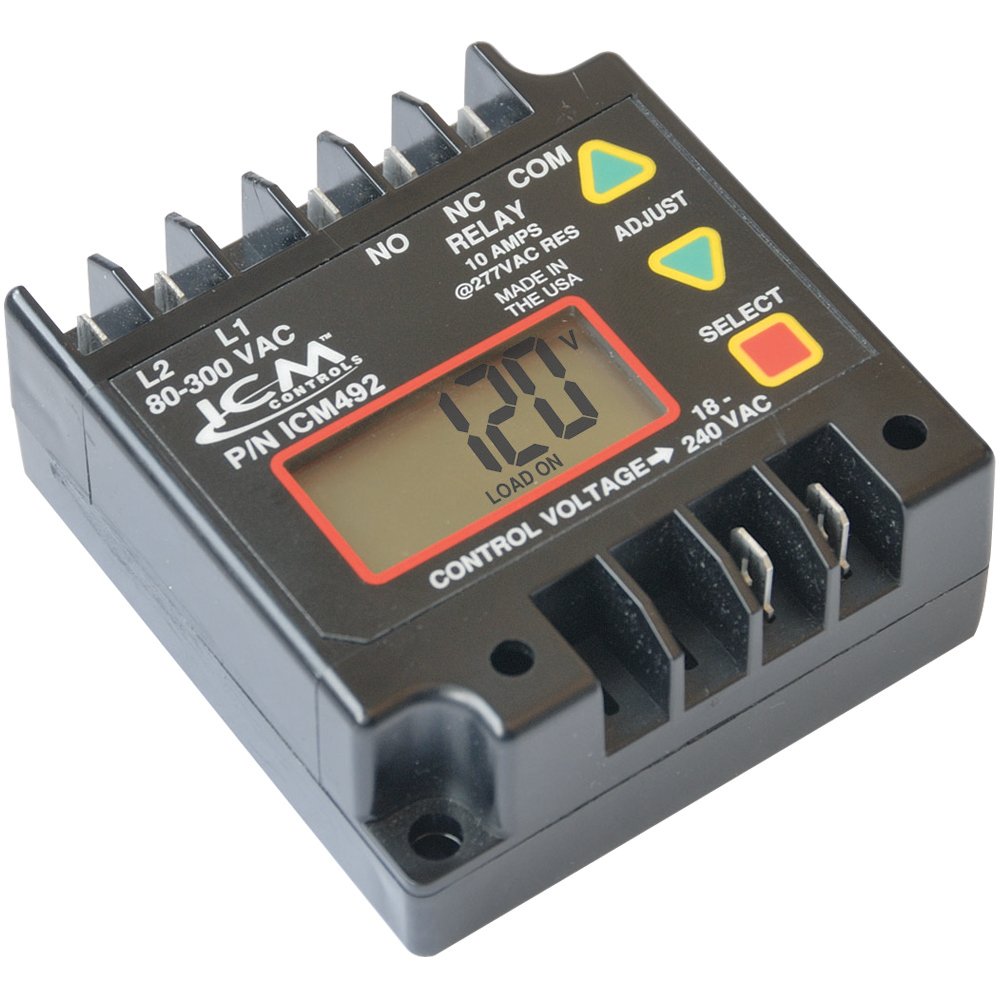

ICM ICM492 Single Phase Monitor 80-300 VAC 5-Fault Memory LCD Setup and Diagnostics

Product Description

The ICM Controls ICM492 Single Phase Monitor is designed to supervise voltage conditions from eighty to three hundred volts alternating current. This unit features five-fault memory for error diagnostics. It displays data in an easy-to-read LCD format.

• Monitors voltage conditions continuously
• Backlit digital display for visibility
• Adjustable voltage settings for customization

Product Highlights

The ICM492 is ideal for protecting single-phase HVAC equipment from adverse low and high voltage conditions. It also aids in the prevention of rapid short cycling within equipment, ensuring longer service life.

Product Information

Standard Information

• Brand: ICM
• Model Number: ICM492

Technical Specifications

• Voltage Range: 80-300 VAC
• Memory: 5 faults
• Display Type: Backlit LCD
• Weight: 0.59 lbs
• Dimensions: 8 x 6.3 x 2.1 inches
• Power Source: Battery powered
• RMS Voltage Monitoring: Yes
• Adjustable Voltage Set Point: Yes
• Over Voltage Protection: Adjustable
• Under Voltage Protection: Adjustable
