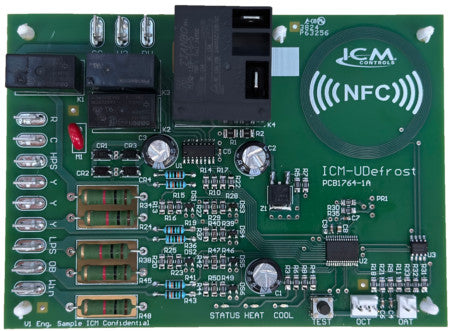

ICM UDEFROST Universal Defrost Control Module / Board

Product Description

The ICM UDEFROST Universal Defrost Control Module / Board is designed to replace various time and temperature heat pump defrost boards. This module provides reliable and efficient control for defrost cycles in heat pump systems.

• Compatible with multiple heat pump systems.
• Configurable settings via NFC for easy adjustments.
• Includes features for compressor protection and troubleshooting.

Product Highlights

Enhance system efficiency with features such as a compressor anti-short cycle delay, high ambient temperature locks, and low temperature compressor lockouts.

Product Information

Standard Information

• Inputs: Power Supply: R, C (24VAC, 50/60 Hz)
• Output Specifications: Fan: N.C. ; 1/2HP, 240 VAC

Technical Specifications

• Operating Ambient Temperature: -40 C to 70 C
• Dimensions: 3.75 inches high x 2 inches wide x 5.5 inches long
• Defrost Interval Timer: Yes
• Max Defrost Time: Adjustable
• Field Test Mode: Yes
• Brownout Protection: Yes
• Auxiliary Heat Lockout: Yes
• LED Indicators: Yes
