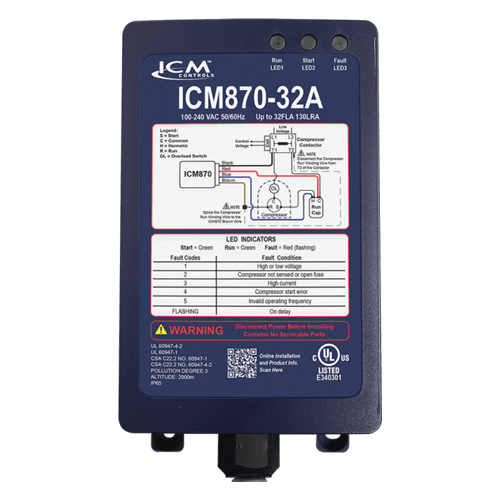

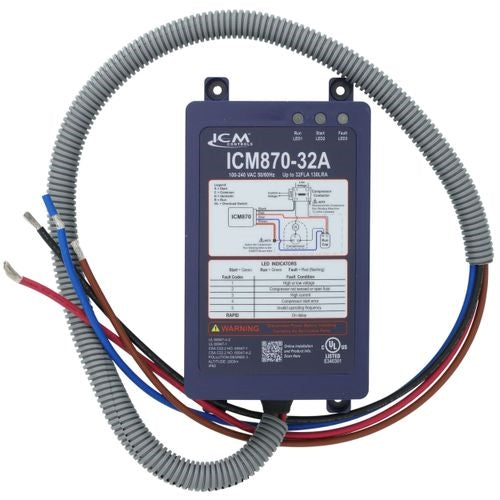

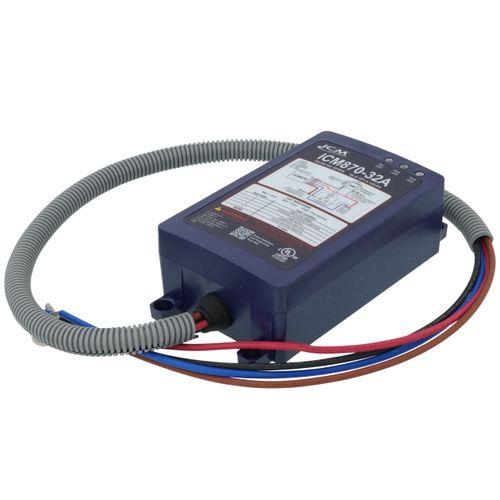

Icm Icm87032A Soft Start, Built-in Start Capacitor, Over/Under Voltage Monitoring, Over-Current Protection, 32A

Product Description

The ICM ICM87032A soft start integrates compressor or motor in-rush current over startup time, reducing peak current demand by up to 70%. It features a built-in self-learning algorithm to optimize in-rush current. The ICM87032A monitors system health, voltage, current, and compressor integrity, halting operation upon a fault and initiating a 3-minute anti-short cycle with LED fault indicators.

• Reduces in-rush current/draw necessary at startup by up to 70%
• Prolongs the life of the A/C by reducing excessive torque, wear and tear
• Reduces loud noises, light flickering, and breaker trips

Product Highlights

The ICM87032A soft start is for residential, commercial, RV & marine applications. It has over-current protection, over/under voltage monitoring, and a built-in start capacitor.

Product Information

Standard Information

• Brand: ICM
• Manufacturer Part Number: ICM87032A

Technical Specifications

• Product Type: Soft Starter
• Voltage: 100/240V
• Amperage: 32 A
• Frequency: 50/60 Hz
• Temperature Range: -40 to 149 deg F
• Series: ICM870 Series
• Capacity: 72000 BTU, 6 ton
• Humidity: 0 to 95% Non-Condensing
• Screw Hole Center Points: 7.36 x 2.97 in
• Output: Compressor Output
• Interrupt Rating: 40 A
• Enclosure Type: IP65
