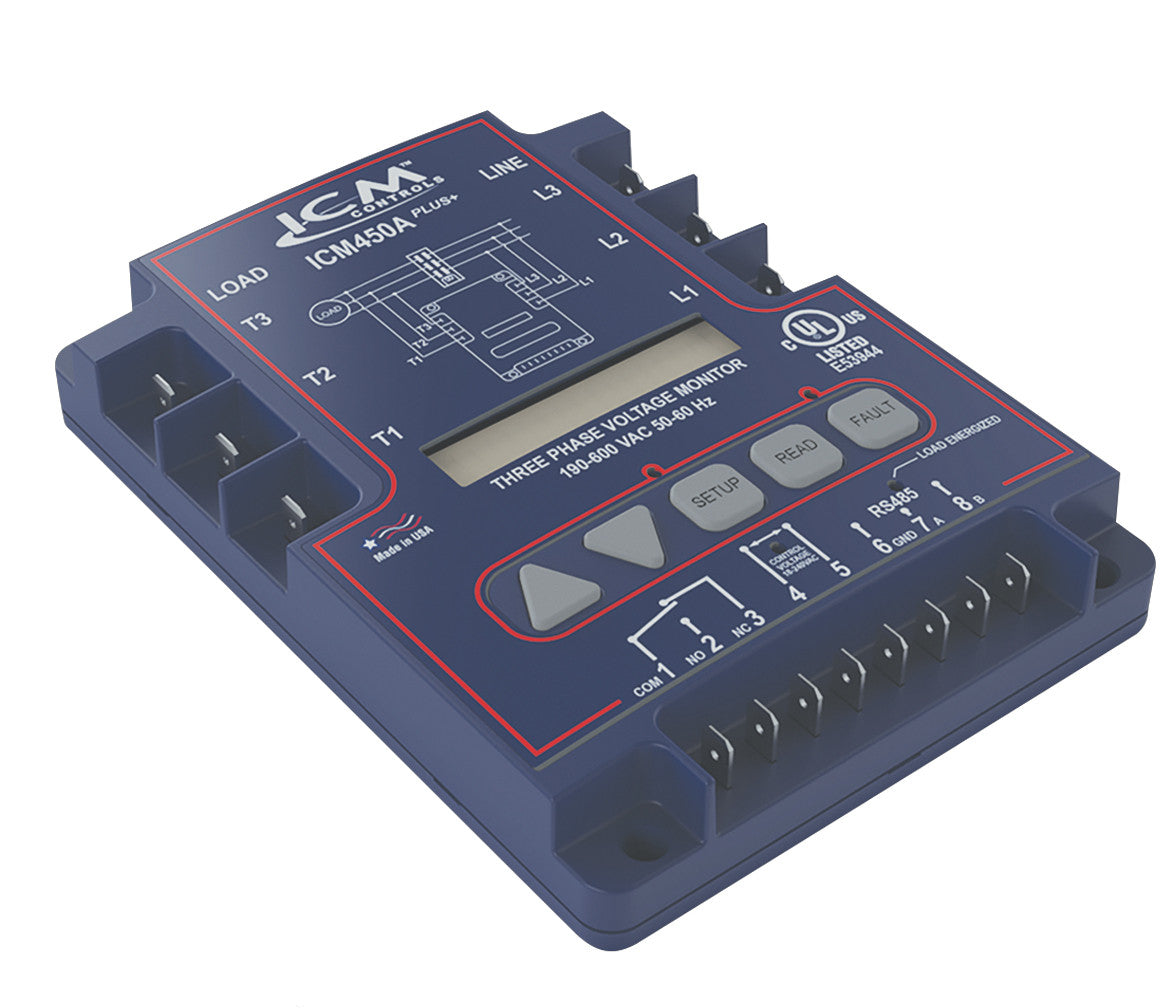

ICM ICM450A-PLUS Programmable 3-Phase Line Voltage Monitor with Modbus RS485 Port - Backlit Display

Product Description

The ICM450A-PLUS is a programmable 3-phase line voltage monitor designed for precise voltage monitoring. This device helps protect motors from premature failure caused by voltage issues. It detects phase unbalance, phase loss, phase reversal, and both over- and under-voltage conditions.

• Easy-to-read backlit display with English and Spanish options
• Real-time clock with date and time stamped events
• Includes Modbus RS485 communication capabilities

Product Highlights

The ICM450A-PLUS offers safe connections through common spade terminations, minimizing wire exposure.

Product Information

Standard Information

• Brand: ICM CONTROLS
• Model: ICM450A-PLUS

Technical Specifications

• Voltage Range: Universal 190 to 600 VAC
• Frequency: 50-60 Hz
• Control Voltage: 18 to 240 VAC
• Relay Type: SPDT
• Relay Voltage Range: 277 VAC @ 6A maximum
• Operating Temperature: -40°F to +149°F
• Storage Temperature: -40°F to +185°F
• Dimensions: 6.5 inches x 4.75 inches x 1.09 inches depth
