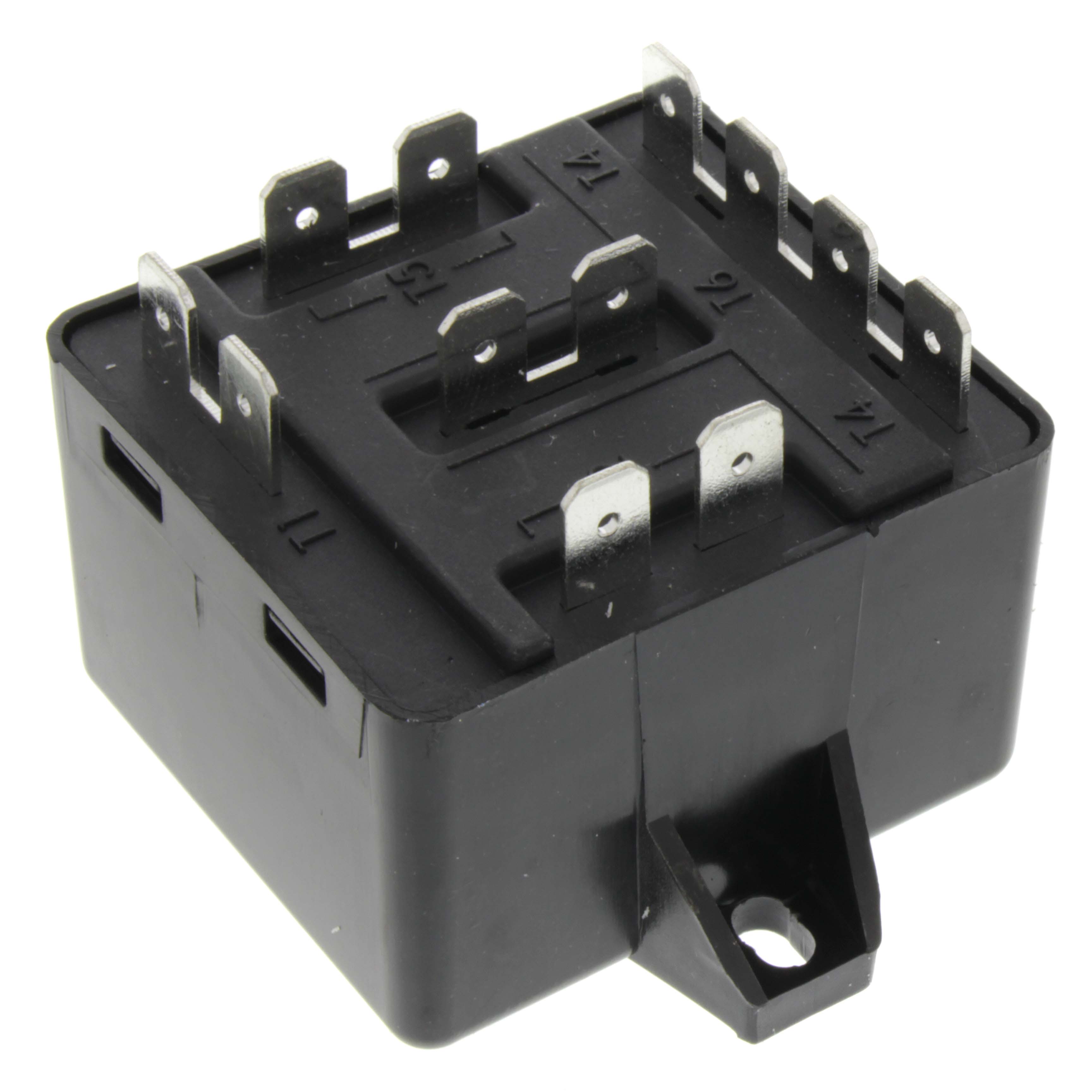

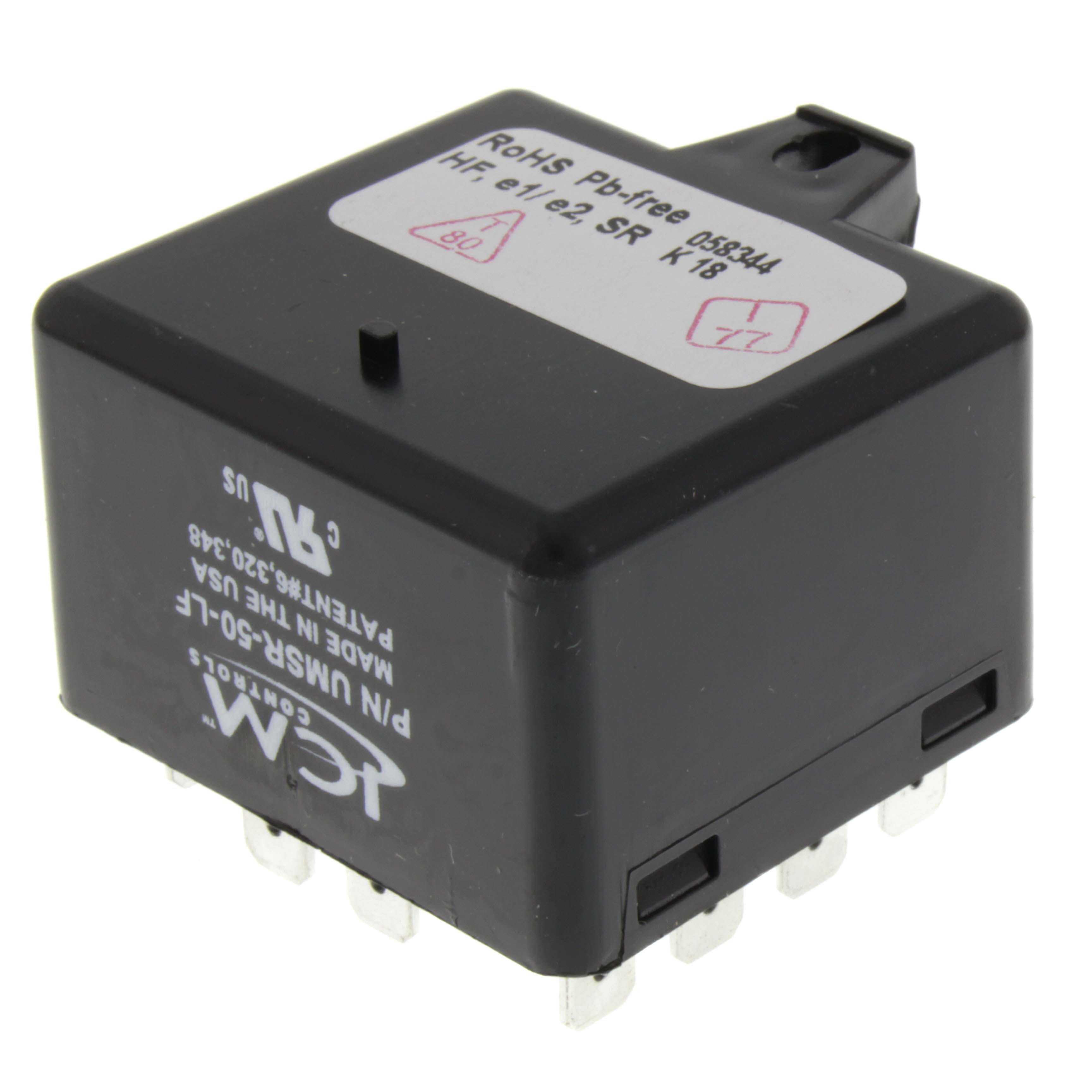

ICM Controls UMSR-50B-LF Universal Motor Starting Relay

Product Description

The ICM Controls UMSR-50B-LF is a universal motor starting relay designed to ensure dependable operation for multiple motor applications. This relay has a compact design that simplifies installation into existing systems.

• Compatible with a wide variety of motor types
• Compact for easy setup
• Delivers reliable starting and protection for motors

Product Highlights

This relay enhances motor performance and provides protection from overloads and short circuits, which can lead to reduced downtime.

Product Information

Standard Information

• Brand: ICM Controls
• Part Number: UMSR-50B-LF

Technical Specifications

• Item Number: UMSR-50B-LF
• Voltage Rating Input: 110-270 VAC (Single Phase)
• Max Voltage Contact Rating: 502 VAC (absolute)
• Motor Power Rating: Up to 10 HP
• Contact Ratings: 50A (break only), 400 VAC cos Ø= 0.7 to 0.8
• Shipping Weight: 0.22
• Shipping Dimensions: 6.95 inches (Depth) x 3.95 inches (Width) x 1.85 inches (Height)
• Safety Time Out: Approximately 1 second per 100 microfarads
