ICM CONTROLS T9-DB10 10 Round In line Vent duct Booster

Product Description

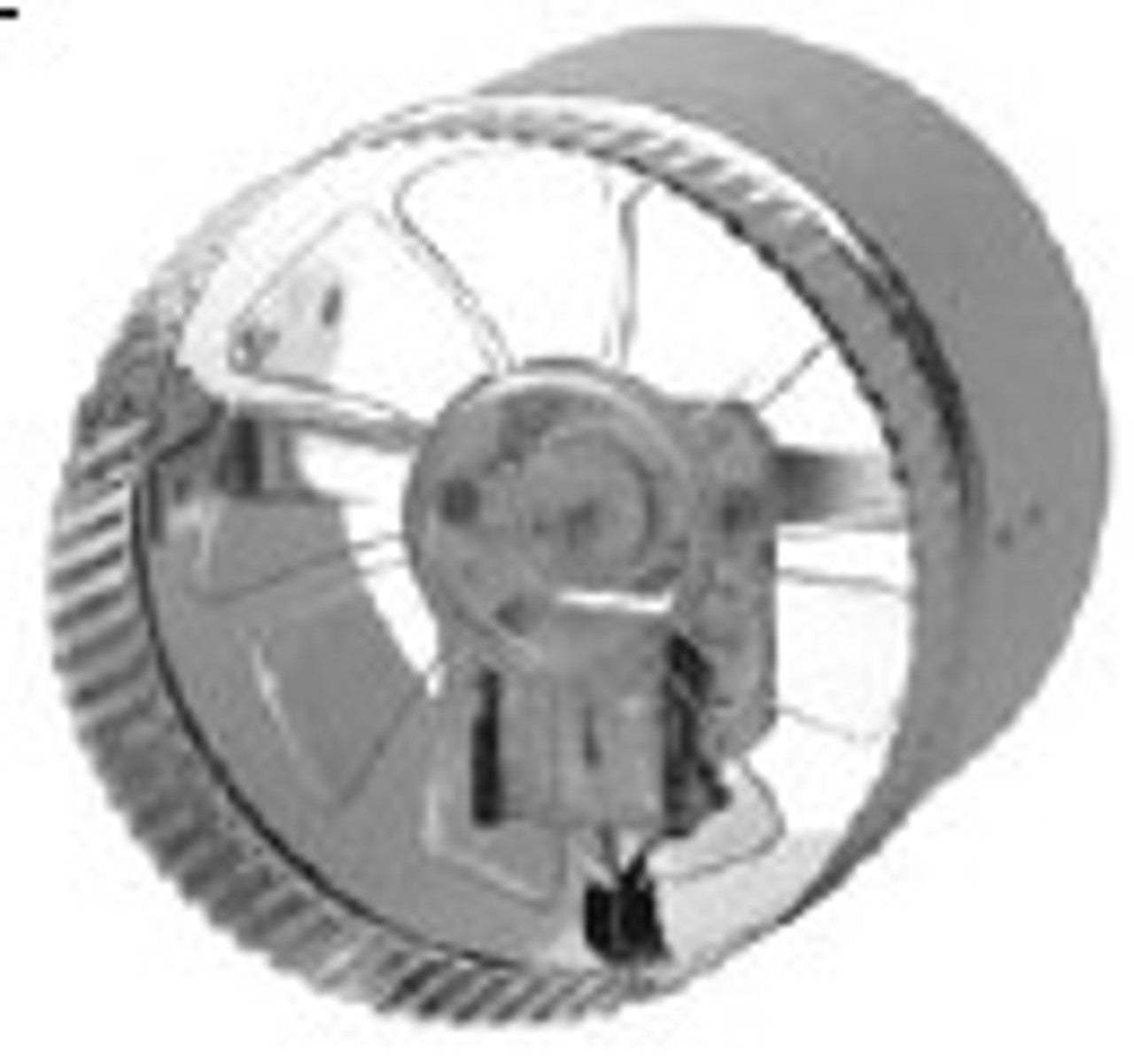

The ICM CONTROLS T9-DB10 is a 10-inch round in-line vent duct booster. It improves airflow in rooms that lack adequate ventilation. This duct booster can be installed at any angle to direct either hot or cold air effectively. It operates continuously on 115V power supply. While control options are available separately, they include manual on/off, variable speed control, or automatic control with a furnace fan, fan switch, sail switch, pressure switch, or thermostat.

• Boosts airflow in under-ventilated areas.
• Flexible installation options at any duct angle.
• Operates on standard 115V.

Product Highlights

This booster is essential for enhancing air circulation in homes and workplaces.

Product Information

Standard Information

• Brand: ICM CONTROLS
• MPN: T9-DB10

Technical Specifications

• Duct Diameter: 10 inches
• Max Boosted CFM: 650
• Free Air CFM: 300
• Watts: 120
• Amps: 1.5
• dBA: 55
• Blade Material: Aluminium
• Housing Length: 8 inches
