ICM Controls T1-R605 HVAC/R Motors C Frame Motor

Product Description

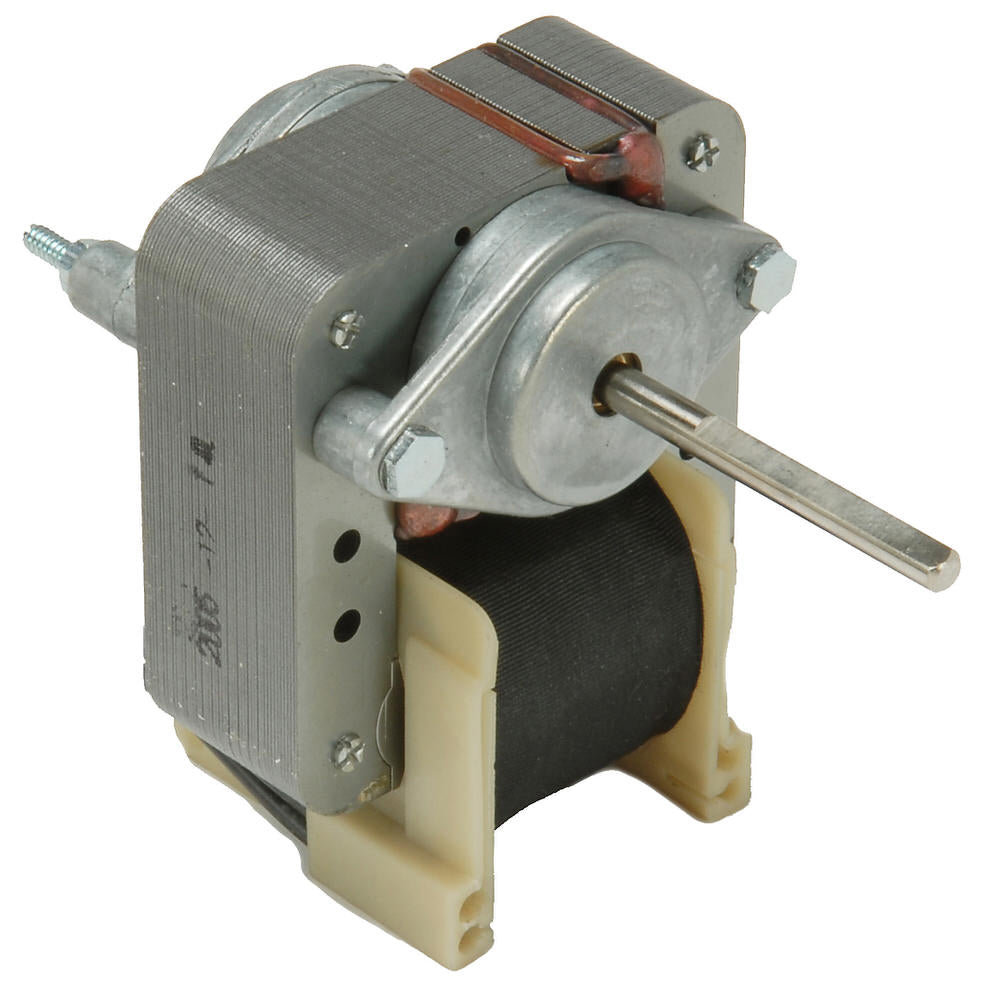

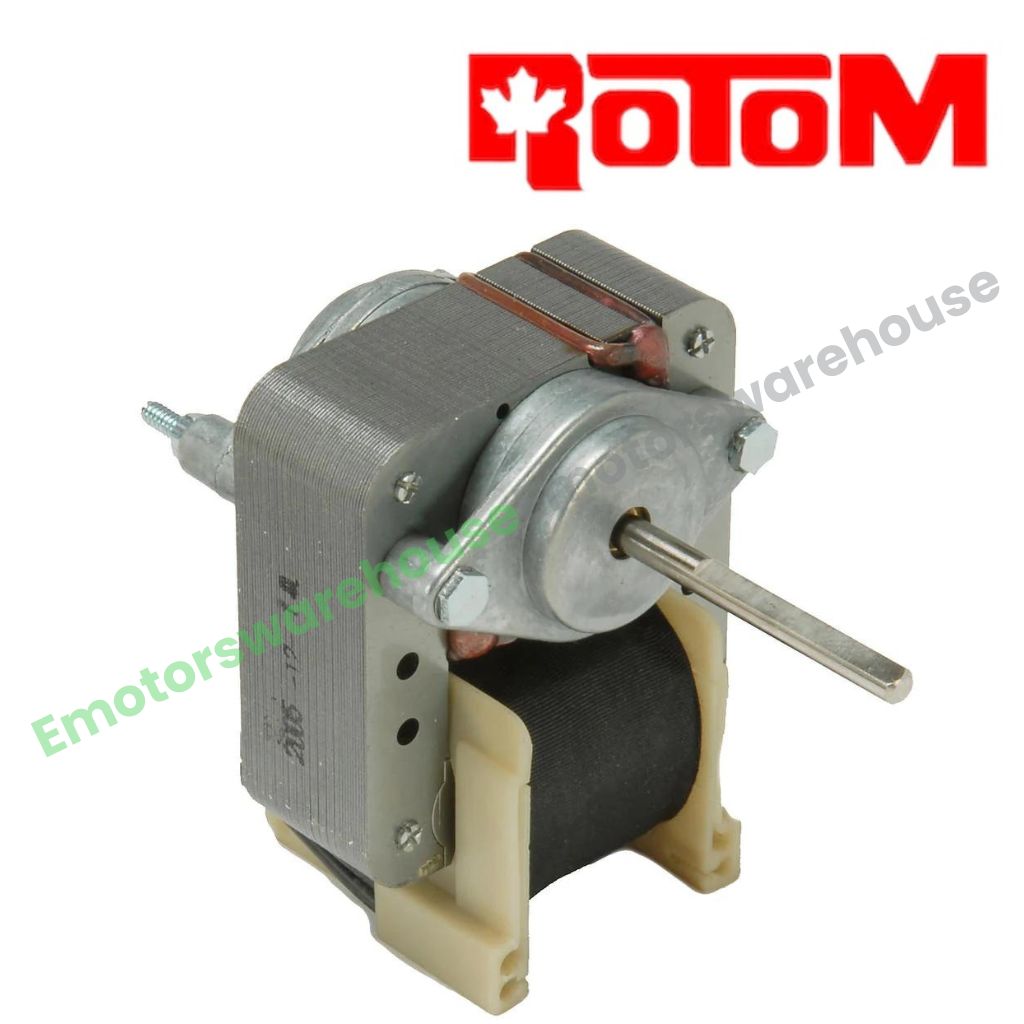

The ICM Controls T1-R605 is a 1/55 horsepower, 115-volt motor designed for HVAC/R applications. It operates at 2800 RPM and draws 1.00 amp. This motor features clockwise rotation and a skeleton frame with an open enclosure. It is equipped with an automatic protector and sleeve bearings, making it suitable for various refrigeration and exhaust applications, including exhaust fans and evaporator fans.

• Horsepower: 1/55 HP
• Voltage: 115V
• Rotation: Clockwise

Product Highlights

This motor is built to work at an ambient temperature of 40°C and has a service factor of 1.00. Its robust design provides durability for long-term use in demanding environments.

Product Information

Standard Information

• Brand: ICM Controls
• MPN: T1-R605

Technical Specifications

• HP: 1/55
• Voltage: 115
• RPM: 2800
• Amps: 1.00
• Phase: 1
• Frame: Skeleton
• Enclosure: Open
• Protector: Automatic
• Ambient Temp.: 40°C
• Service Factor: 1.00
• Shaft Dimensions: 0.181 in X 1.7 in
• Frequency: 60Hz
• Length: 0.90 in
• Bearings: Sleeve
• Mounting: Studs
