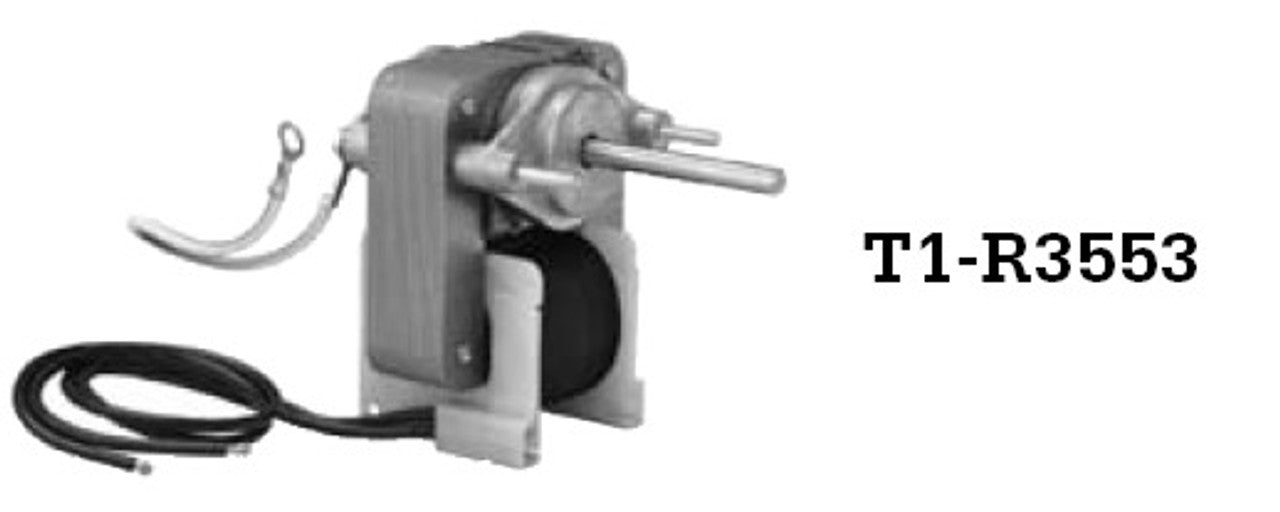

ICM CONTROLS T1-R3553 ROTOM VENTILATION SKELETON MOTOR General Replacement 65104 33-104

Product Description

The ICM CONTROLS T1-R3553 is a Rotom ventilation skeleton motor. It operates at one over seventy horsepower and achieves a speed of three thousand revolutions per minute. This motor runs on one hundred fifteen volts and draws zero point seventy-five amps. With a clockwise rotation and a stack of zero point eighty, it features a shaft measuring seven thirty-seconds by one point eight inches with a cord that includes terminal ends.

• Versatile use in various applications
• Ideal for evaporators, range hoods, and exhaust fans
• Robust design suitable for vending machines and unit heaters

Product Highlights

This motor is designed for reliable performance in HVAC and refrigeration systems.

Product Information

Standard Information

• Brand: ICM CONTROLS
• MPN: T1-R3553

Technical Specifications

• Power: 1/70 HP
• Speed: 3000 RPM
• Voltage: 115 Volt
• Current: 0.75 Amp
• Rotation: CW
• Stack: 0.80
• Shaft Size: 7/32 x 1.8 inches
