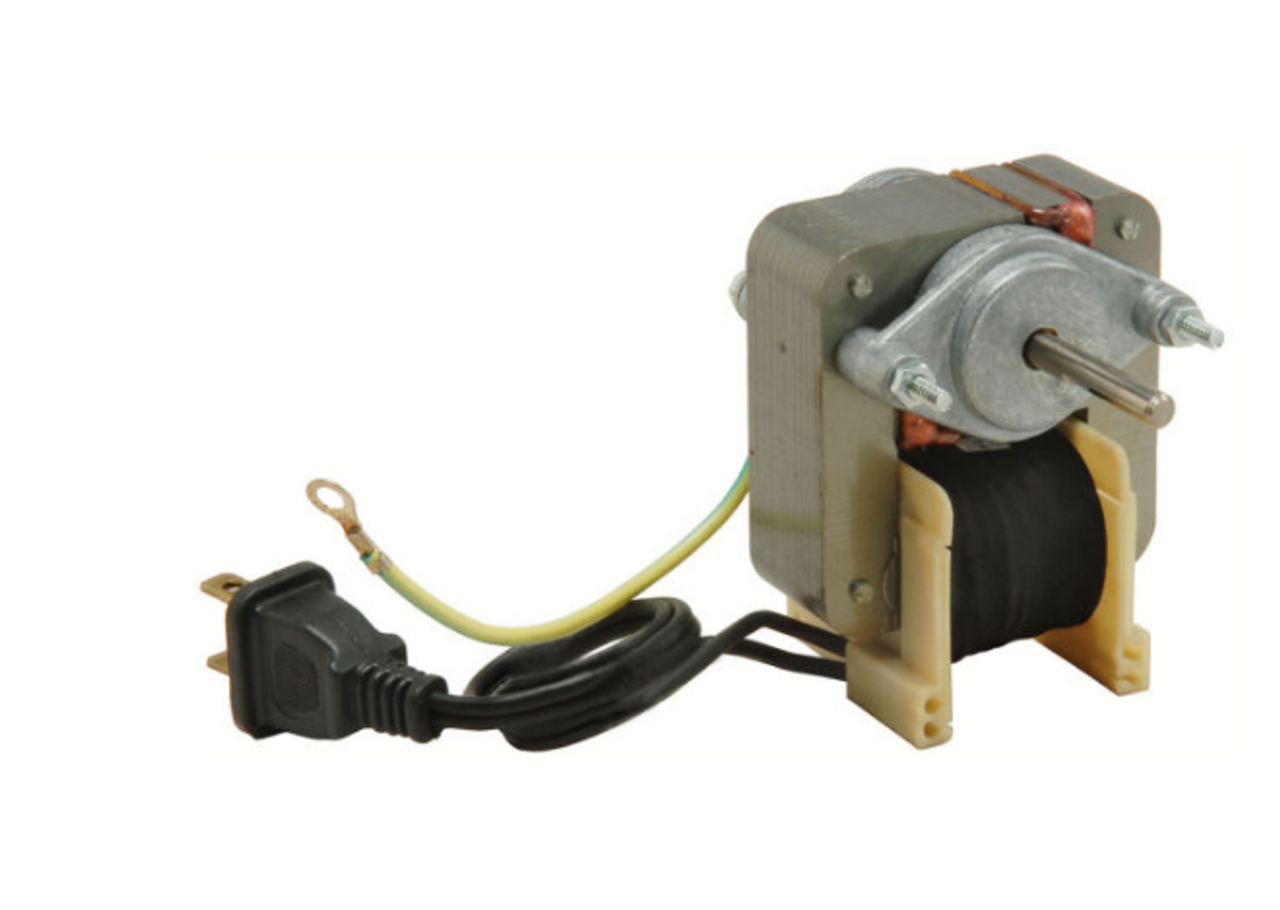

ICM Controls T1-R3552 Ventilation Motor General Replacement 65103 33-103

Product Description

The ICM Controls T1-R3552 ventilation motor provides a general replacement solution for various applications. This motor is suitable for use in evaporators, range hoods, exhaust fans, refrigeration units, ventilators, vending machines, and unit heaters.

• Power rating of one over fifty horsepower
• Operates at one hundred fifteen volts and six hundred fifty milliamps
• Delivers three thousand RPM with clockwise rotation

Product Highlights

Ideal for many HVAC and refrigeration uses, the T1-R3552 features a stack height of point nine inches and a shaft dimension of seven thirty-seconds inches by one point twenty-two inches.

Product Information

Standard Information

• Brand: ICM Controls
• MPN: T1-R3552

Technical Specifications

• Power: 1/55 HP
• Voltage: 115 Volts
• Current: 0.65 Amps
• Stack Height: 0.900 inches
• Speed: 3000 RPM
• Rotation: CW
• Shaft Size: 7/32 inches x 1.22 inches
• Plug Type: 2 prong plug
