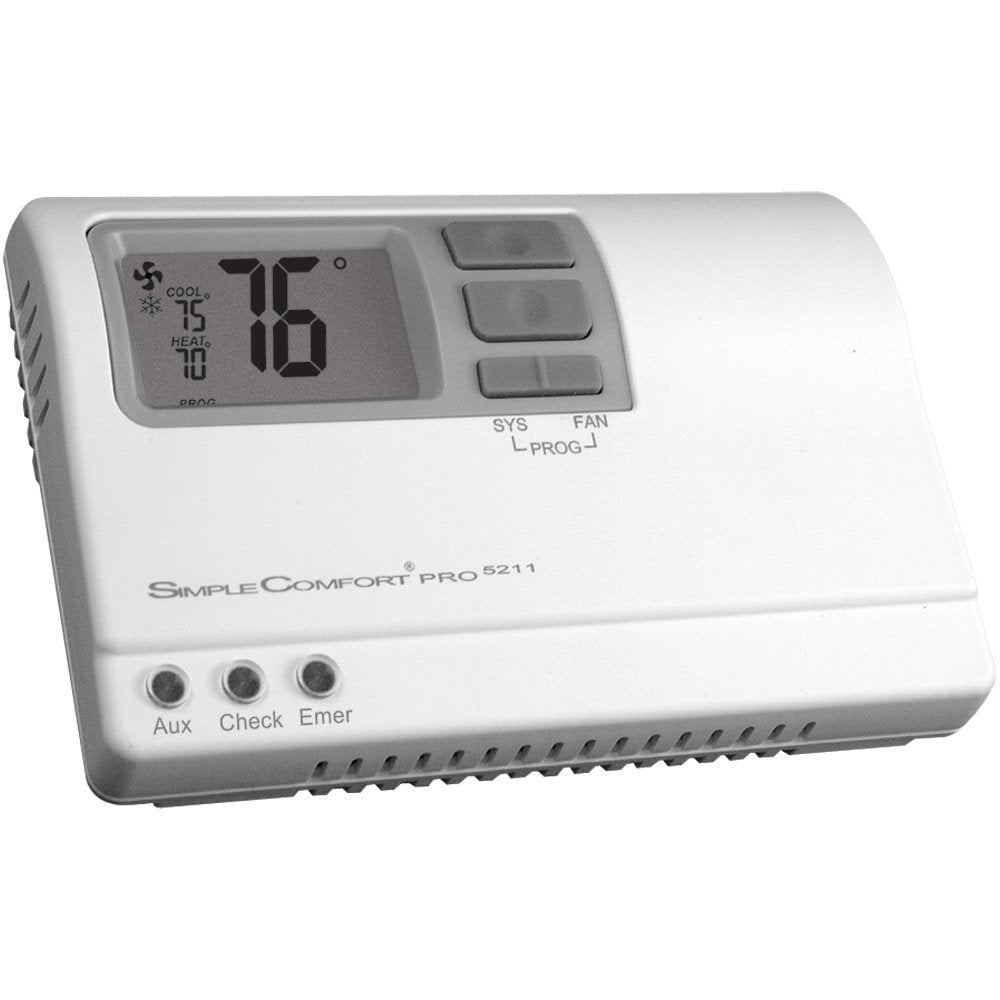

Icm Controls SC5211 SimpleComfort PRO Programmable Thermostat 2 Heat/2 Cool/2 Heat Pump with Auto Changeover 24 VAC

Product Description

The ICM Controls SC5211 is a SimpleComfort PRO programmable thermostat designed for multi-stage heat pump systems. It supports 2 heat/2 cool stages and 2 heat pump stages with auto changeover functionality. Operating on 24 VAC, this thermostat features a patented Thermal Intrusion Barrier and patent-pending SimpleSet Target Programming, enhancing installation and performance. It offers flexible 7-day, 5-2-day, and 5-1-1-day programming options, making it suitable for various residential and commercial HVAC applications.

• Patented Thermal Intrusion Barrier and patent-pending SimpleSet Target Programming.
• Supports 2 Heat/2 Cool/2 Heat Pump stages with auto changeover.
• Offers flexible 7-Day, 5-2-Day, and 5-1-1-Day programmable settings.

Product Highlights

Programmable thermostat with auto changeover, large display, and password lockout for multi-stage heat pump systems.

Product Information

Standard Information

• Brand: ICM CONTROLS
• Manufacturer Part Number: SC5211
• Country of Origin: USA

Technical Specifications

• Electrical Rating: 24 VAC (18-30 VAC) 1 amp maximum per terminal 4 amp maximum total load
• Temperature Control Range: 45°F to 90°F (7°C to 32°C)
• Accuracy: 1°F (0.5°C)
• Terminations: R, C, Y1, Y2, W2, O/B, G, E, L, S1, S2
• Application: Heat Pump Multi Stage (Heat/Cool) Changeover Thermostat
• Stages: 2 Heat/2 Cool
• Voltage: 24 VAC
• Amperage: 4 amp maximum total load
• Programmability: 7 Day, 5-2 Day, 5-1-1 Day
• User Interface: Push Button
• Mounting Type: Horizontal
• Display: Large Display, Backlit
• Control Features: Fan Control, Password Lockout, Min/Max Temperature Limiting, Field Calibration, Remote Sensing
• Anti-Short Cycle Time: 4 minutes (Fixed)
• Power Method: Hardwired
