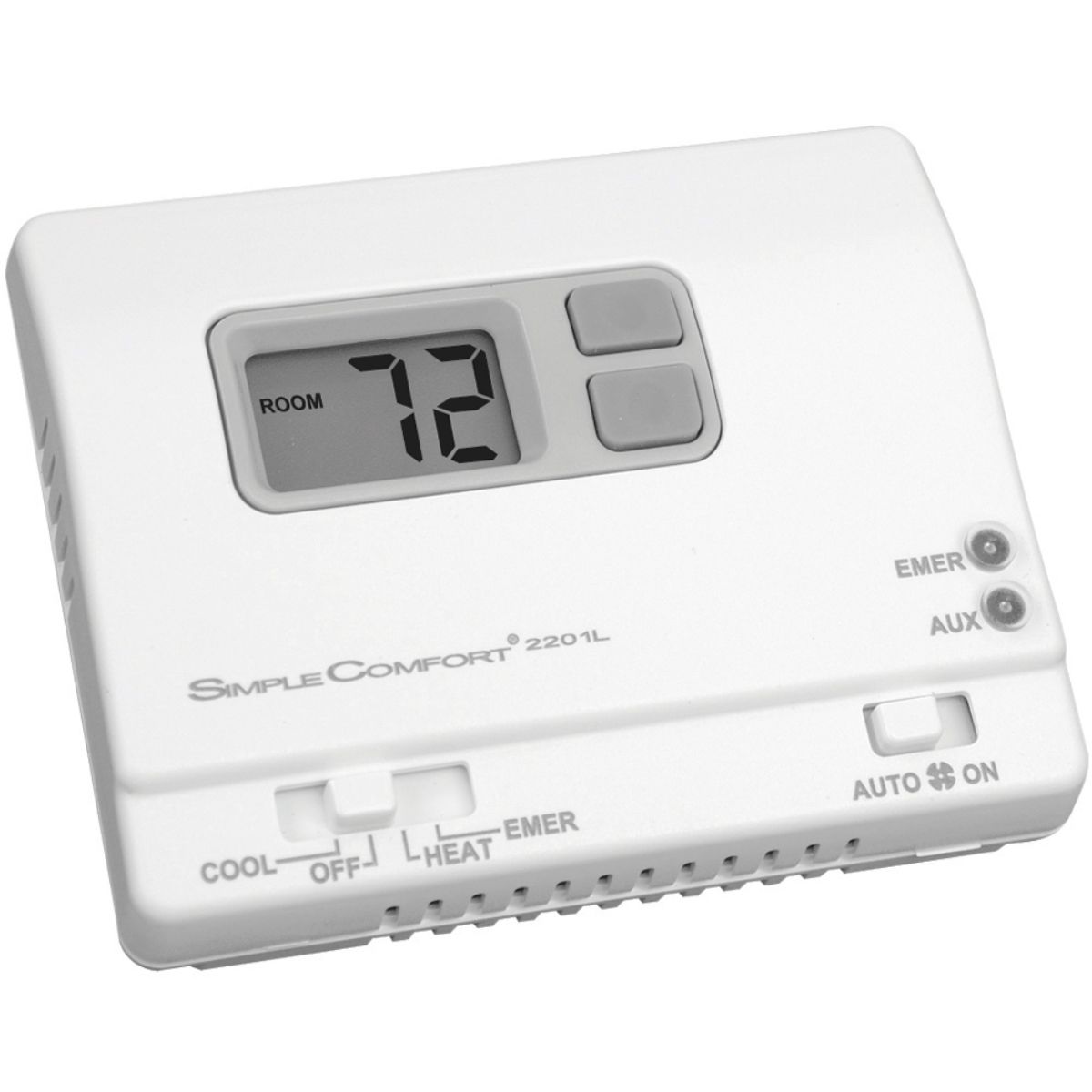

ICM CONTROLS SC2201L Non-Programmable SimpleComfort Thermostat 2 Heat/1 Cool Heat Pump Only REPLACED BY SC5811

Product Description

The ICM CONTROLS SC2201L SimpleComfort Thermostat is designed for residential heat pump systems. It functions with 24 VAC systems providing up to two stages of heating and one stage of cooling. This thermostat is suitable for manual changeover heat pumps and can operate in conjunction with auxiliary or emergency heating. It can also serve as a master thermostat in zoned setups.

• Compatible with 2-stage heating and 1-stage cooling heat pumps
• Features a backlit LCD display with easy-to-use soft touch controls
• Includes adjustable temperature differential and keypad lockout option

Product Highlights

Product Information

Standard Information

• Application: Heat Pump
• Programmability: Non-Programmable

Technical Specifications

• Multi-Stage (Heat/Cool): 2 Heat/1 Cool
• User Interface: Push Button
• Mount: Horizontal
• Power Method: Hardwired
• Temperature Control Range: 45 degrees F to 90 degrees F
• Voltage: 24V
• Amperage: 1 amp max. per terminal, 4 amp max. total load
• Height: 3.75 inches
• Width: 4.59 inches
• Depth: 1.12 inches
• Accuracy: +/- 1 degree F
• Vendor Part Number: SC2201L
• Category: Controls & Indicators
• Subcategory: Thermostat
