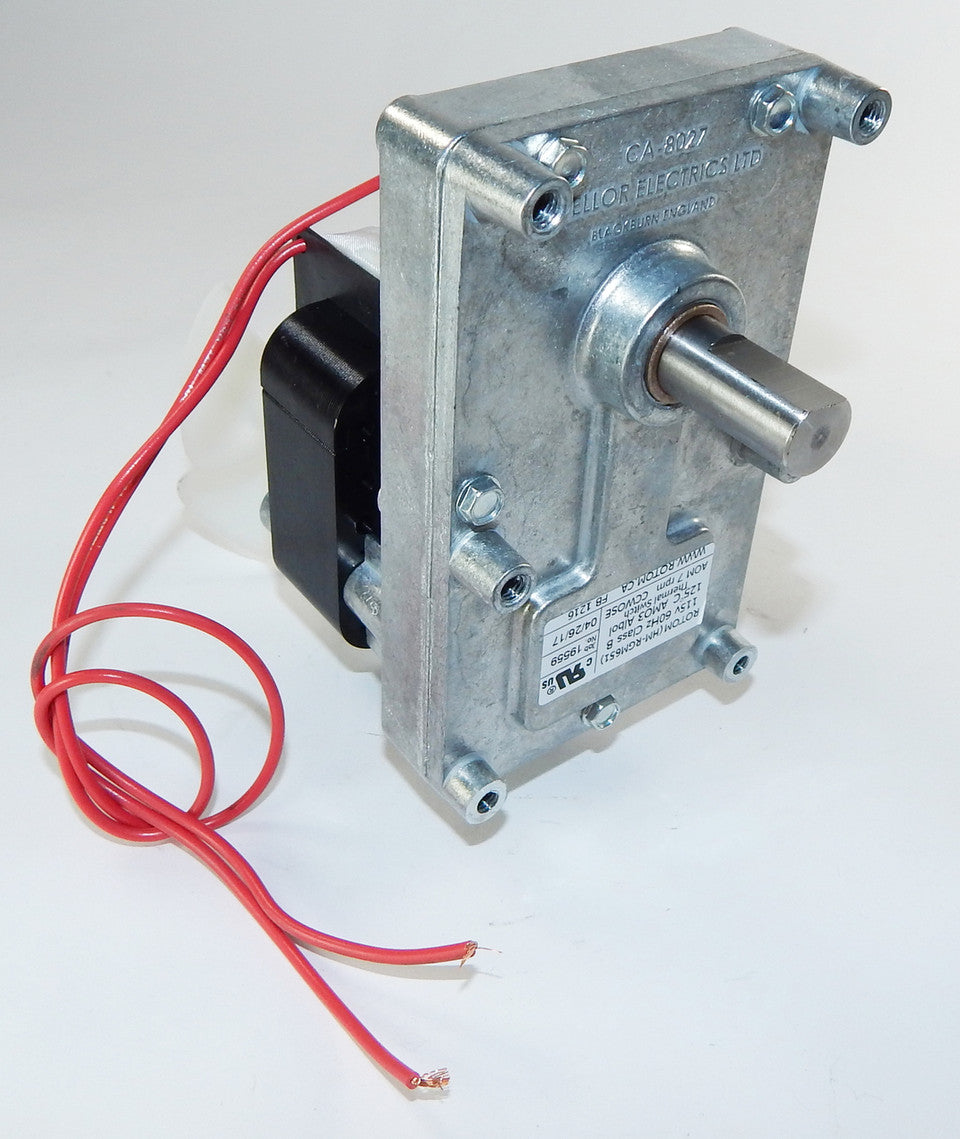

ICM CONTROLS R7-RGM651 7 RPM Pellet Stove Auger Gear Motor 115V 1.0 amps

Product Description

The ICM CONTROLS R7-RGM651 is a specialized auger gear motor designed for pellet stoves. This unit operates at a speed of seven revolutions per minute and requires a voltage of one hundred fifteen volts along with one amp of current. It is suitable for intermittent duty and features clockwise shaft end rotation, which is non-reversible. The motor is equipped with bare wire leads for easy installation. It facilitates the auger's operation, ensuring a steady flow of pellets into the combustion chamber.

• Operates at one hundred fifteen volts and one amp
• Features a half inch by one inch shaft without a hole
• Includes four mounting bolts and a two inch diameter fan blade

Product Highlights

The auger gear motor is essential for maintaining consistent pellet feed in stoves.

Product Information

Standard Information

• Brand: ICM CONTROLS
• MPN: R7-RGM651

Technical Specifications

• Voltage: 115V
• Amperage: 1.0 amps
• RPM: 7
• Rotation: CWSE, Non-Reversible
• Shaft Dimensions: 1/2 x 1
• Torque: 85 inch pounds (Full load)
• Wattage: 50 Watt
