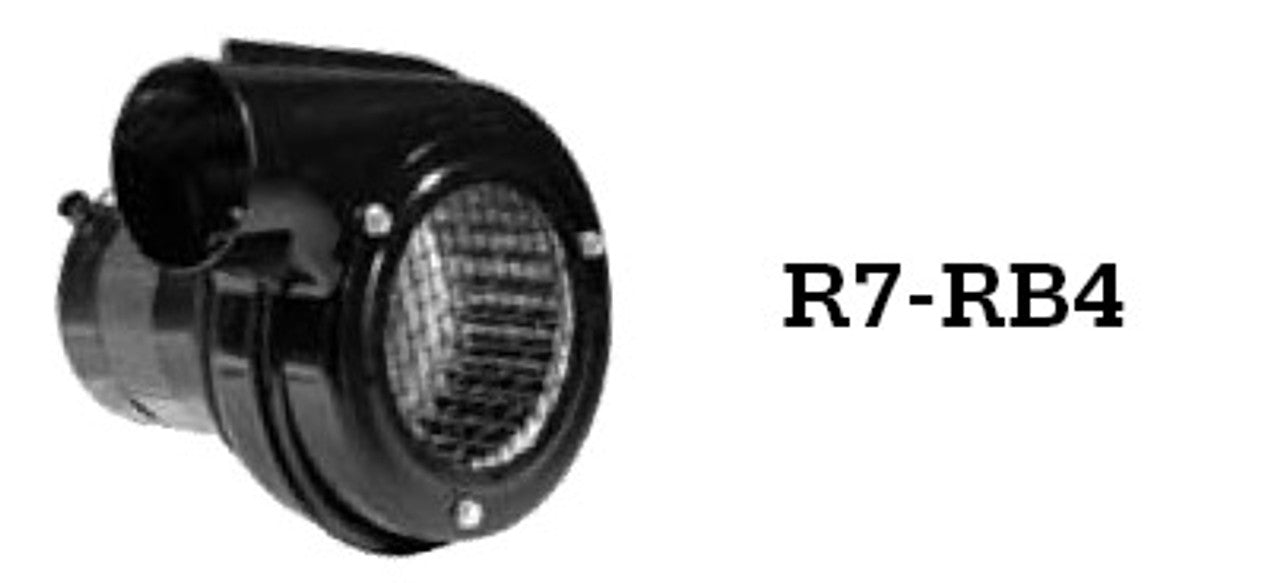

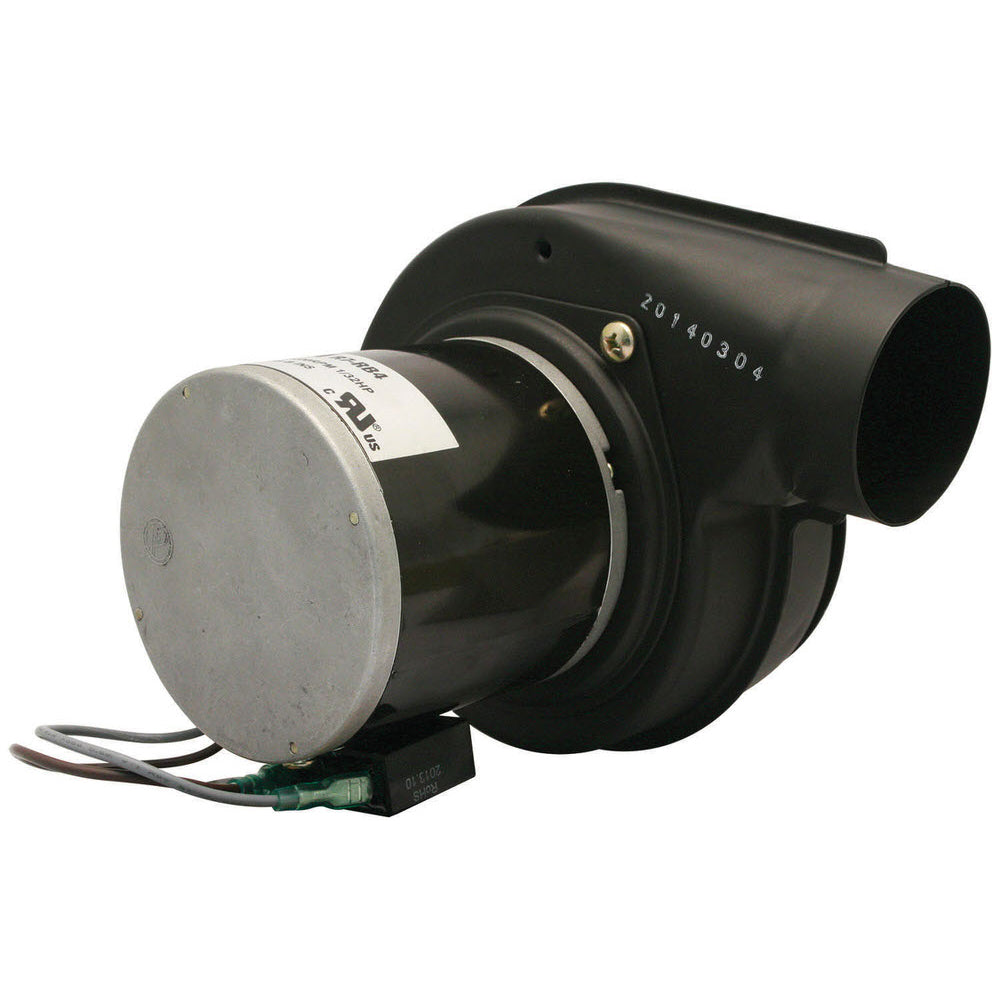

ICM Controls R7-RB4 Rotom for Franklin 76012, 80042, Electrohome EB4, UE582

Product Description

The ICM Controls R7-RB4 is a direct replacement rotom designed for use with Franklin 76012, 80042, Electrohome EB4, and UE582 models. This direct drive blower operates at 115 volts and produces an airflow of 100 CFM. It rotates in a clockwise direction at a speed of one over three thousand two hundred and twenty RPM. The Permanent Split Capacitor motor type allows for efficient operation.

• Replaces Franklin 76012, 80042, Electrohome EB4, UE582 models
• Delivers 100 CFM airflow at 115V
• CW rotation at 1/3220 RPM

Product Highlights

This blower is ideal for HVAC systems requiring reliable airflow and efficient performance.

Product Information

Standard Information

• Brand: ICM Controls
• MPN: R7-RB4

Technical Specifications

• Volts: 115
• CFM: 100
• Rotation: CW (Clockwise)
• RPM: 3220
• Amps: 0.34
• Motor Type: PSC (Permanent Split Capacitor)
• Enclosure Type: TE (Totally Enclosed)
• Frame: 3.3
• Bearings: Ball
