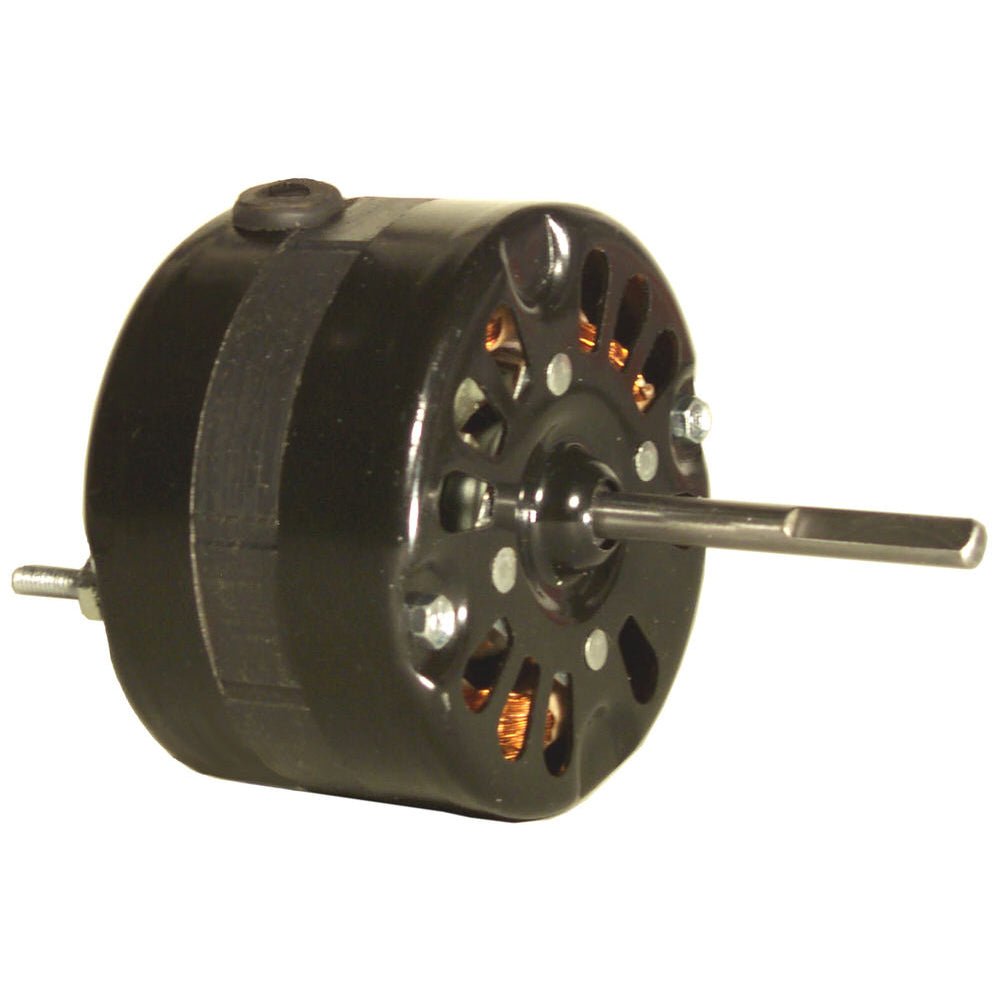

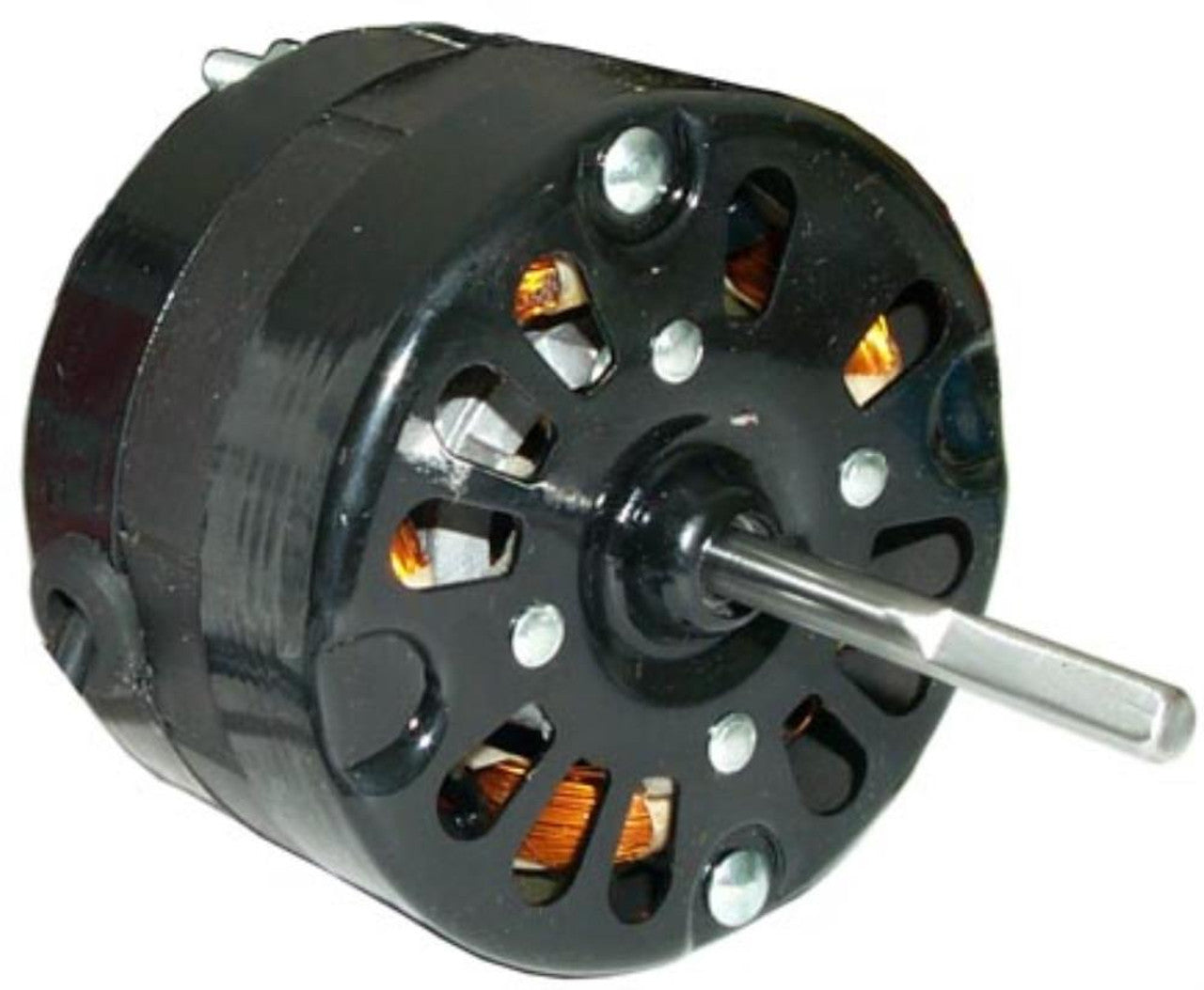

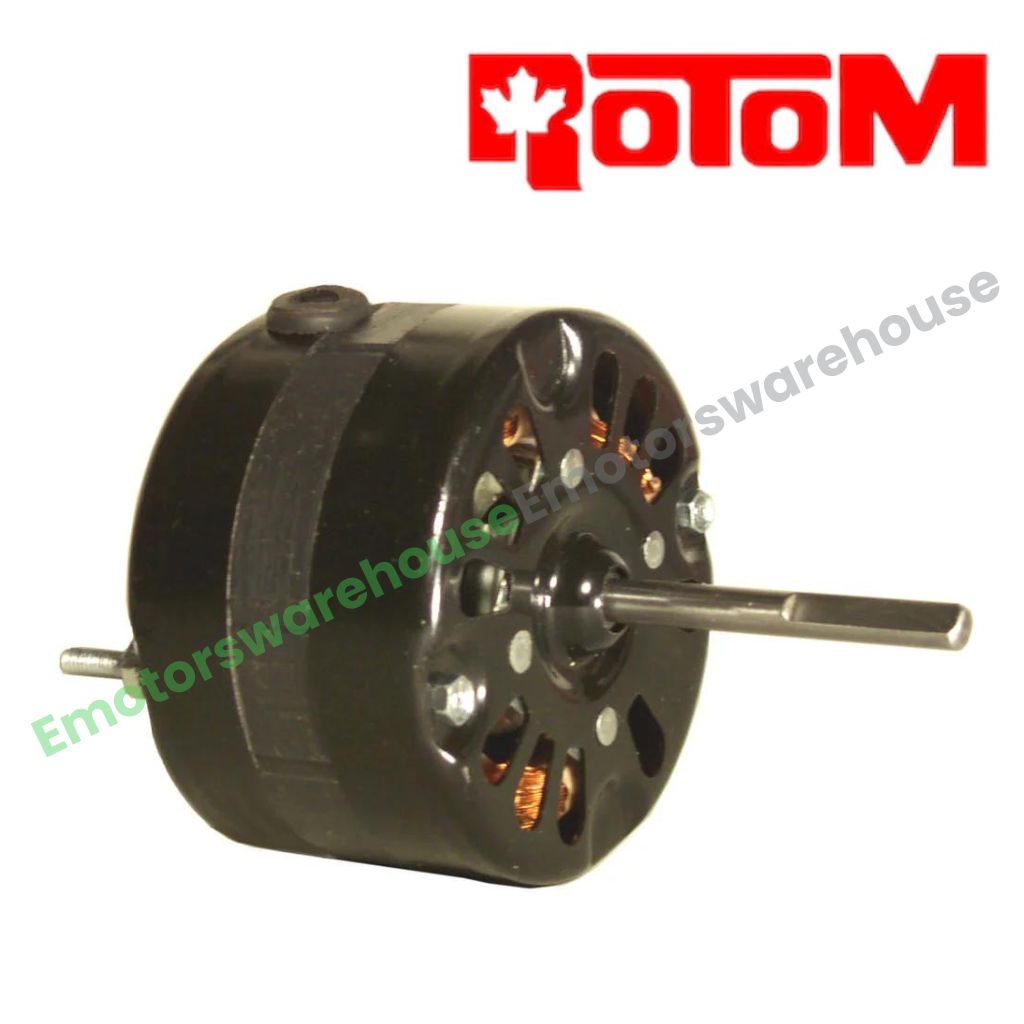

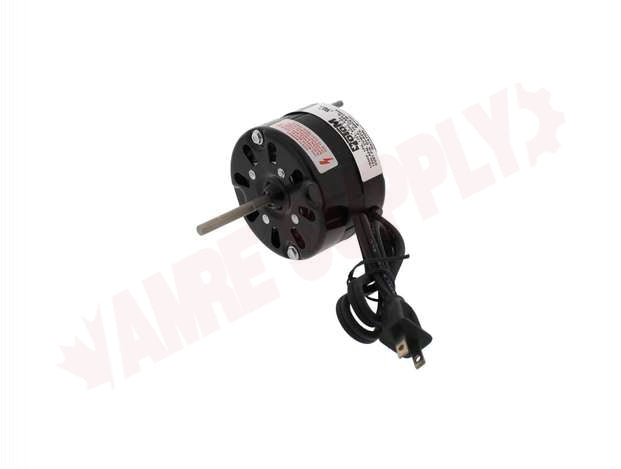

ICM CONTROLS R3-R319 Exhaust Fan Motor

Product Description

The ICM CONTROLS R3-R319 is an exhaust fan motor used for OEM replacement. This motor works at 115V and 60Hz, providing 1/50 horsepower with a speed of 1430 RPM. It fits compact spaces with its diameter of three point three inches and body length of two point ten inches. The design includes a shaded pole and sleeve bearings for reliable performance. It features an open enclosure and has an automatic protector. This motor is suitable for various HVAC and refrigeration applications.

• Voltage: 115V
• Speed: 1430 RPM
• Diameter: three point three inches

Product Highlights

This motor is efficient for HVAC systems, emphasizing durability and compact design.

Product Information

Standard Information

• Brand: ICM CONTROLS
• MPN: R3-R319

Technical Specifications

• Horsepower: 1/50 HP
• Voltage: 115V
• RPM: 1430
• Amperage: 0.90A
• Phase: 1
• Rotation: Counterclockwise
• Frame: 3.3
• Enclosure: Open
• Speeds: 1
• Frequency: 60Hz
• Shaft Dimensions: 0.250 inches X 2.2 inches
• Bearing Type: Sleeve
