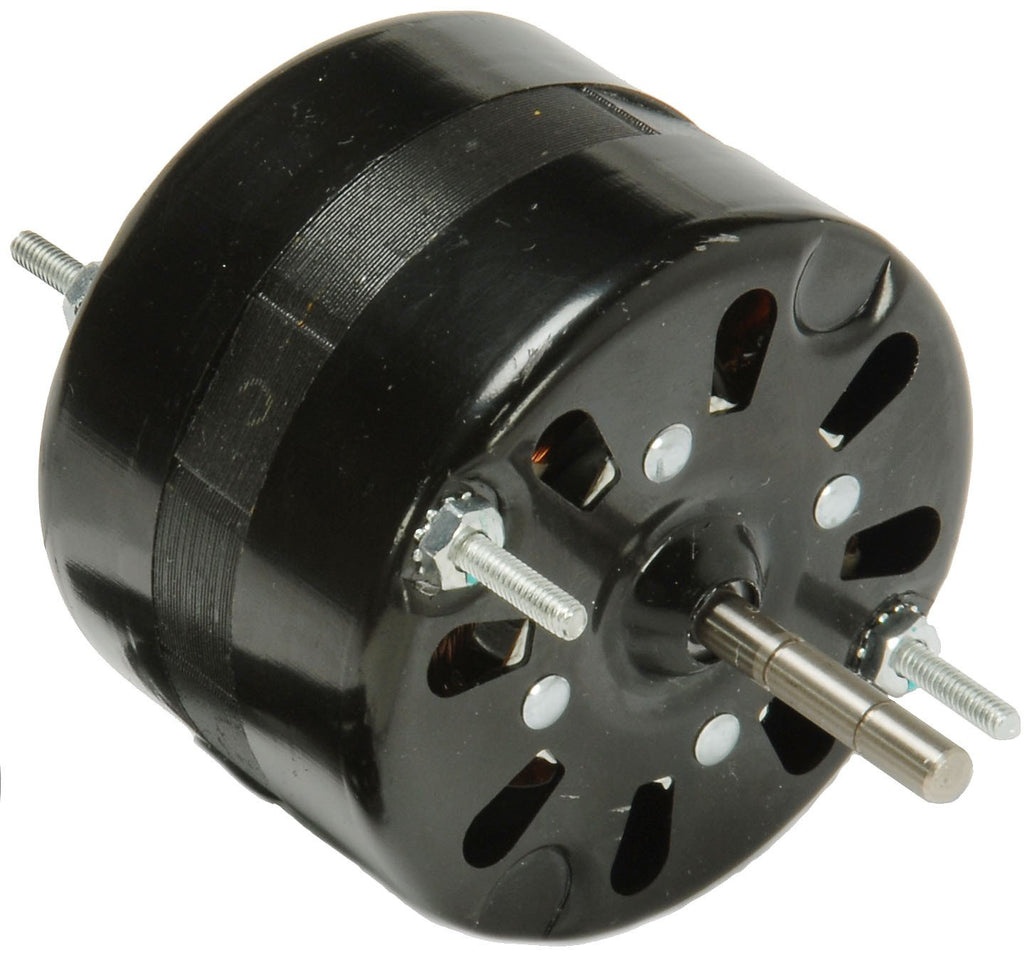

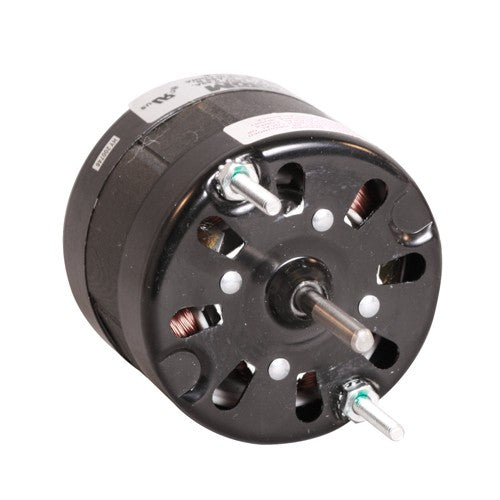

ICM Controls R3-R305 Rotom OEM Replacement Motor

Product Description

The ICM Controls R3-R305 is a reliable OEM replacement motor suitable for various applications. This motor operates efficiently at one hundred fifteen volts and twenty-eight hundred RPM. It is rated at one over sixty horsepower and draws zero point eighty-five amps. The motor features a diameter of three point three inches and a shaft dimension of one-quarter by one and one-half inches. It is designed for use with exhaust fans and similar equipment. The motor rotates clockwise and has an open enclosure, specifically made for stud mounting.

• Operating Voltage: 115 volts
• Power Rating: 1/60 HP, 0.85 Amps
• Speed: 2800 RPM, Clockwise Rotation

Product Highlights

Efficient and reliable replacement motor for various equipment.

Product Information

Standard Information

• Country of Origin: CN
• UPC: 717340037657

Technical Specifications

• HP: 1/60
• Voltage: 115
• RPM: 2800
• Amps: 0.85
• Phase: 1
• Rotation: Clockwise
• Frame Diameter: 3.3 inches
• Enclosure: Open
• Shaft Dimensions: 0.250 inches x 1.5 inches
• Frequency: 60Hz
• Length: 2.36 inches
• Bearings: Sleeve
• Mounting Type: Stud Mounting
