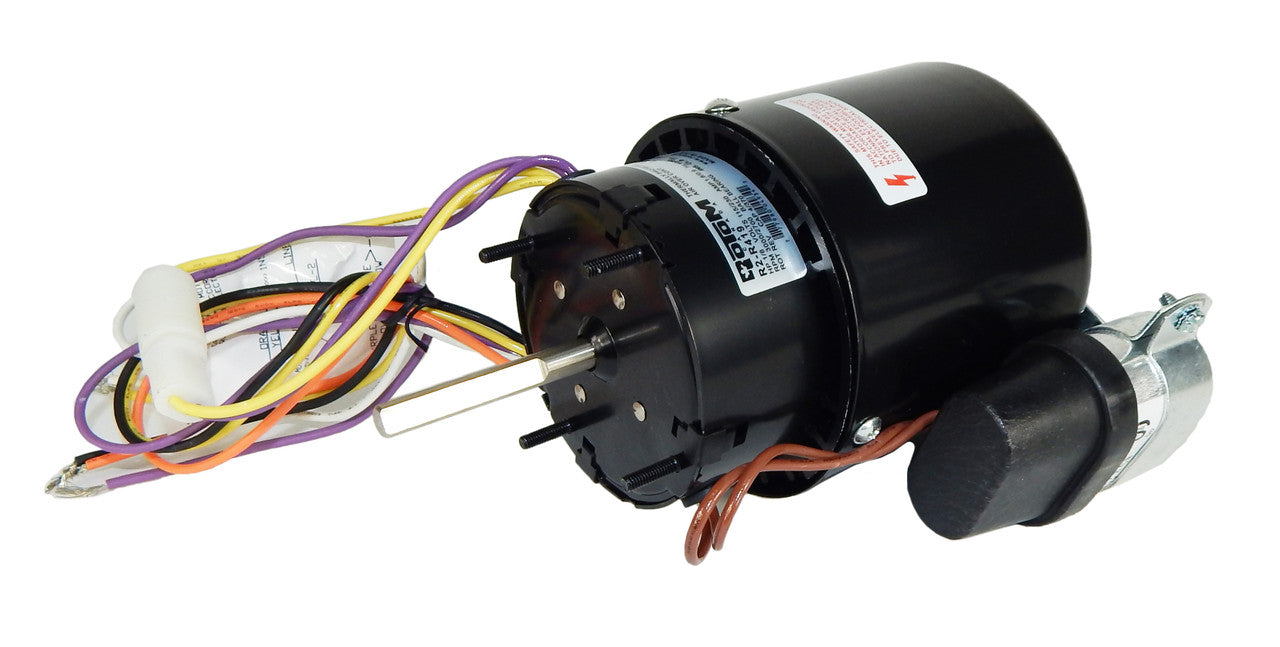

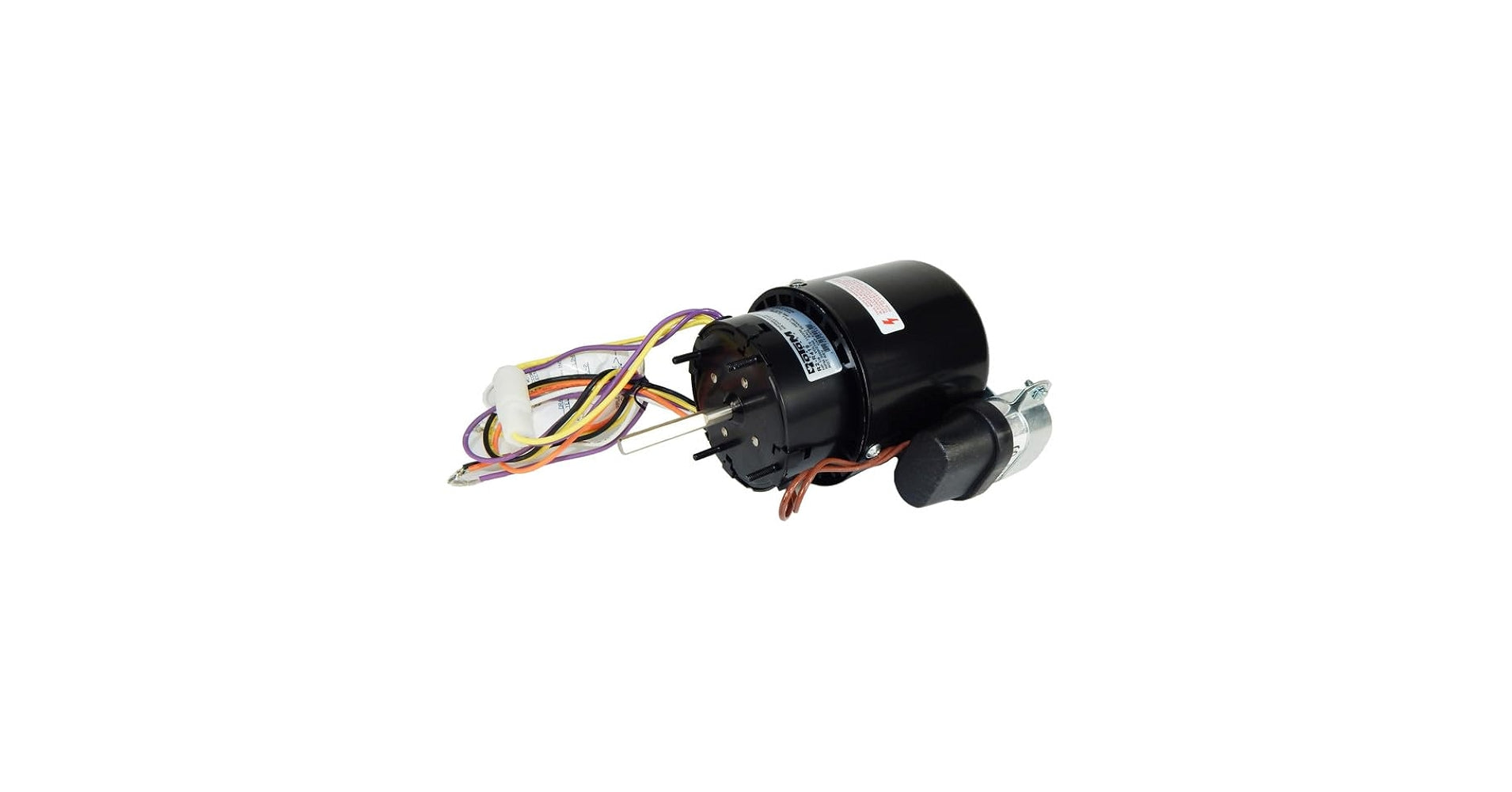

ICM Controls R2-R419 Ventilation Direct Drive Blower Motor

Product Description

The ICM CONTROLS R2-R419 is a direct drive blower motor used in ventilation systems. This motor operates at 115 or 230 Volts and 60 Hz. It provides a power output of one eighth horsepower at a current of 1.8 amps. The unit has a single-speed operation at three thousand RPM, making it efficient for various applications. The design includes ball bearings and a Totally Enclosed Air Over (TEAO) construction, ensuring durability. A four microfarad capacitor is included for reliable performance.

• Operates at 115/230 Volts, 60 Hz
• Features reversible rotation and single-speed operation at 3000 RPM
• Includes a 4 MFD capacitor for efficient performance

Product Highlights

This motor is suitable for different mounting options, either using a belly band or studs, with a bolt circle size of four point sixty-two inches. The shaft measures five sixteenths by one point one seven five inches with a flat edge, allowing for reversible rotation, adapting to various installation needs.

Product Information

Standard Information

• Country of Origin: China
• UPC: 777980049342

Technical Specifications

• Horsepower: 1/8 hp
• Amps: 1.8 amps
• Voltage: 115/230 Volts
• Frequency: 60 Hz
• Speed: 3000 RPM
• Shaft: 5/16 x 1.175 with flat
• Rotation: Reversible
• Mounting: Belly Band or Stud Mount - Bolt Circle - 4.62
• Bearing: Ball Bearing
• Enclosure: Totally Enclosed Air Over (TEAO)
• Motor Type: PSC Motor
