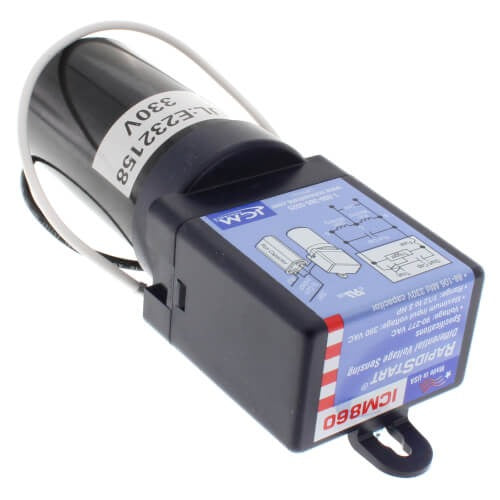

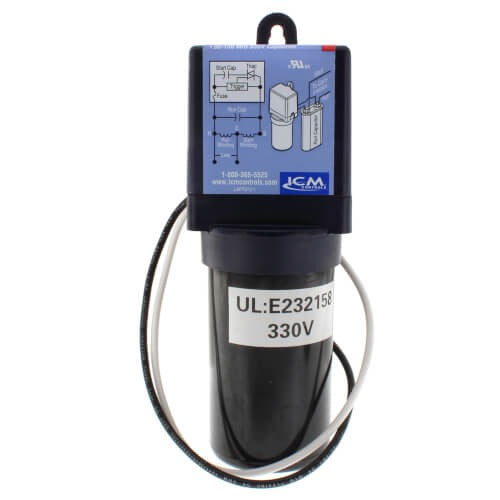

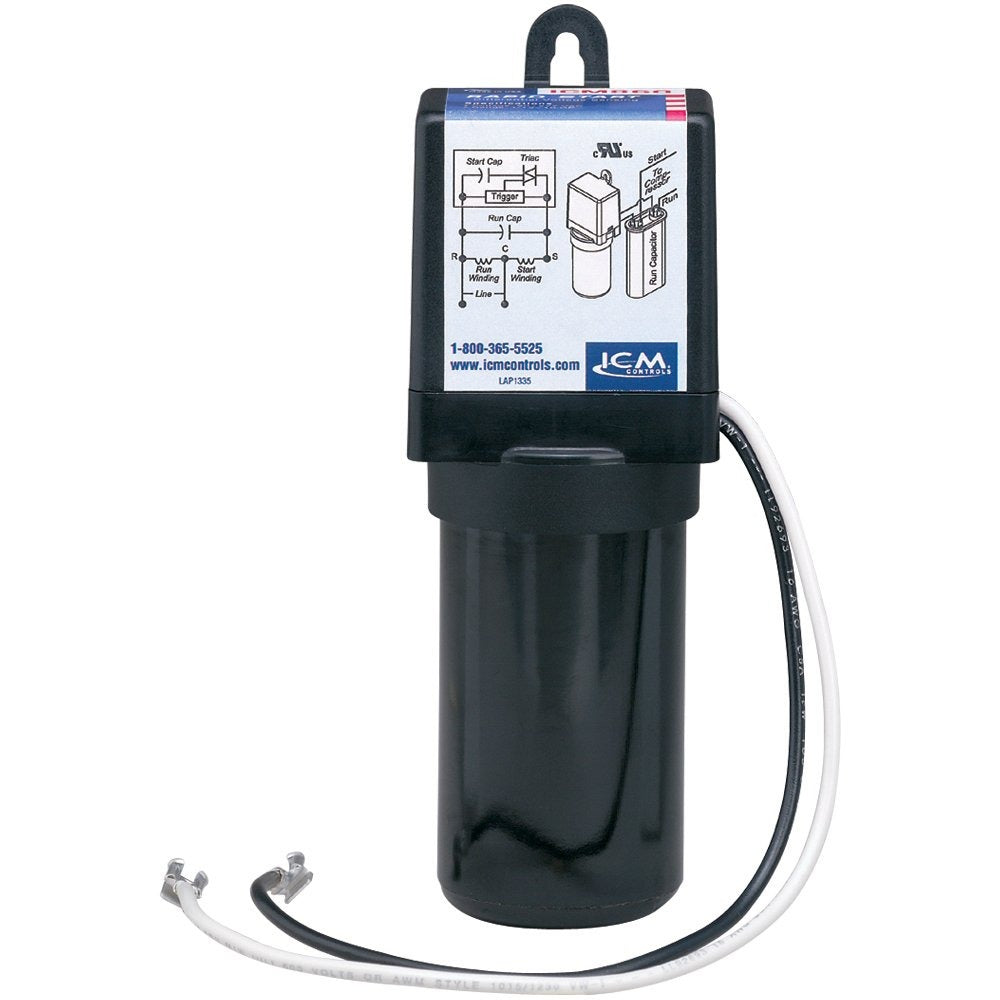

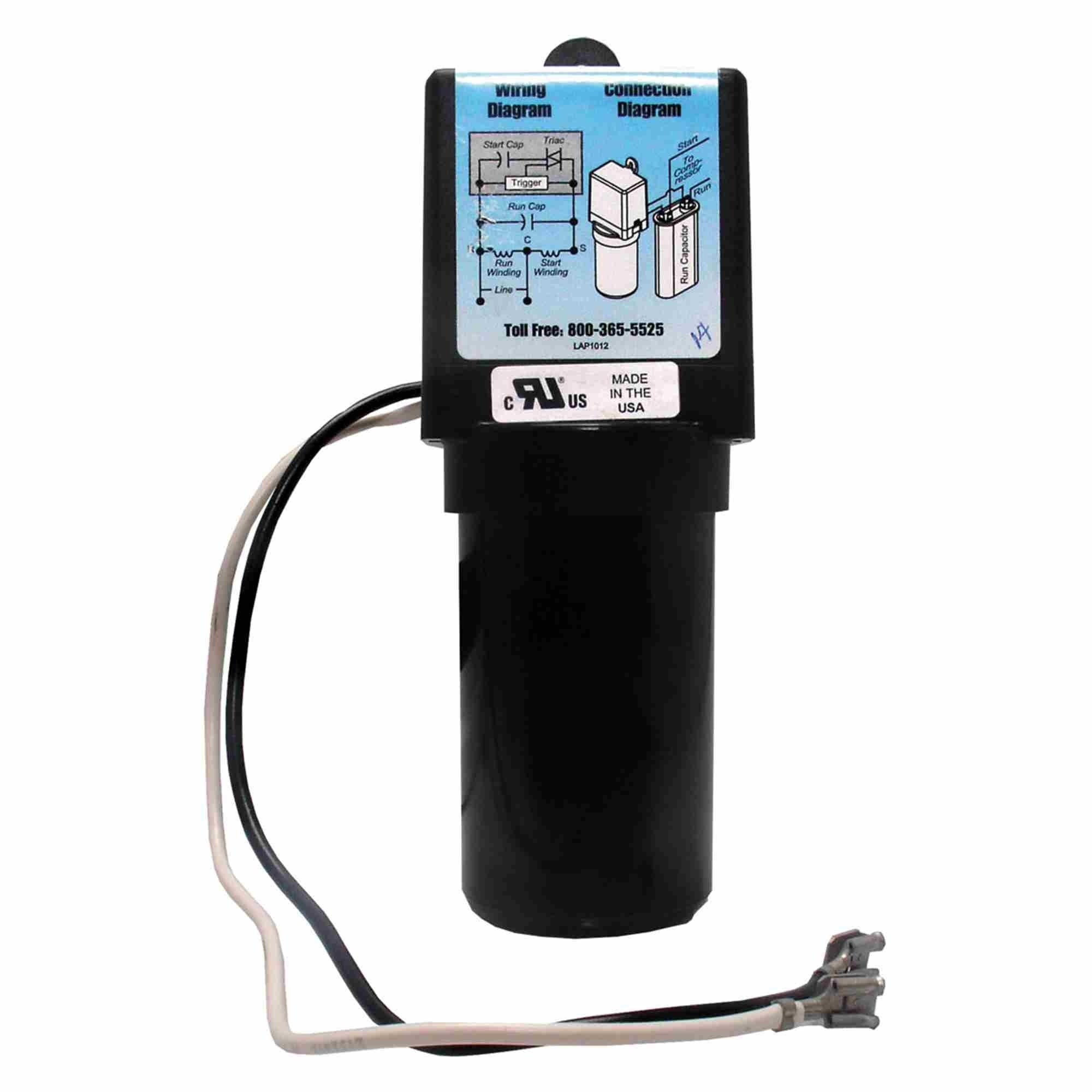

Icm Controls ICM860 Hard Start Assist 1.5-3 Ton (1 Pack)

Product Description

Icm Controls ICM860 is a rapid-start hard start assist for 1.5 to 3 ton compressors that increases starting torque and provides controlled capacitor engagement. The voltage-sensing RapidStart design supports 115 or 230 VAC motors and operates across a 90-277 VAC input range (maximum 390 VAC), with an integrated 88-106 µF, 330 V fused capacitor. It recycles in under one second, increases starting torque up to 500%, and is UL recognized.

• Voltage-sensing RapidStart design increases starting torque up to 500% and precisely engages the start capacitor.
• Wide input range 90-277 VAC (max 390 VAC); compatible with 115 or 230 VAC motors and 1.5–3 ton compressors.
• Integrated 88–106 µF, 330 V fused capacitor (fuse not user-replaceable); UL recognized; recycles in <1 second.

Product Highlights

Voltage-sensing hard start for 1.5–3 ton compressors; 88–106 µF/330 V fused capacitor; 90–277 VAC operation; increases starting torque up to 500% and recycles in under one second.

Product Information

Standard Information

• Brand: ICM CONTROLS
• Manufacturer Part Number: ICM860
