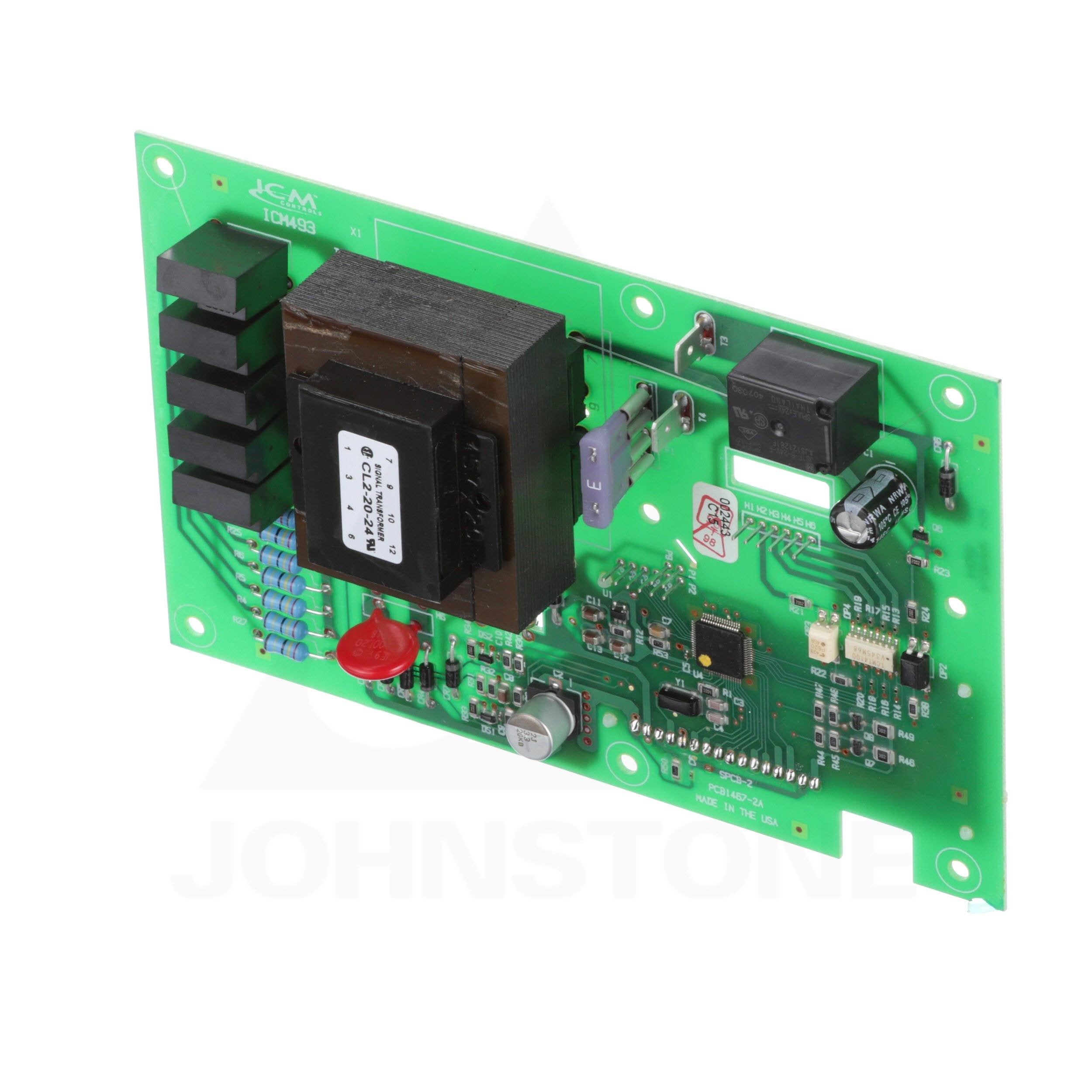

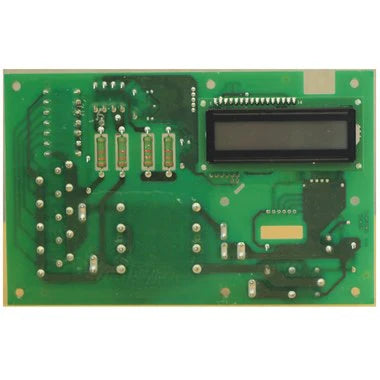

ICM Controls ICM494 Board Replacement for ICM493 Single Phase Surge Protective Device

Product Description

The ICM Controls ICM494 is a board replacement specifically designed for the ICM493 model, ensuring reliable operation and protection for various HVAC systems. This unit safeguards equipment from power fluctuations and surges, including lightning strikes, enhancing the overall performance and longevity of your system.

• Direct replacement for ICM493, ensuring compatibility and ease of installation.
• Constructed to handle single phase voltage ranging from 200 to 250 volts.
• Monitors and protects against overvoltage, short cycling, and high power surges.

Product Highlights

This replacement board is UL recognized and suitable for use with mini-splits and other single phase equipment. It offers an adjustable delay button with a time setting from 0 to 10 minutes and a rapid response time of 100 milliseconds.

Product Information

Standard Information

• Brand: ICM Controls
• Part Number: ICM494
• Agency Compliance: UL Recognized

Technical Specifications

• Product Type: Surge Protective Device
• Phase: Single
• Rated Voltage: 200-250 volts
• Amps: 40
• Temperature Rating: -4 to 158 degrees Fahrenheit
• Dimensions: Height: 2 inches, Width: 4.5 inches, Depth: 7 inches
