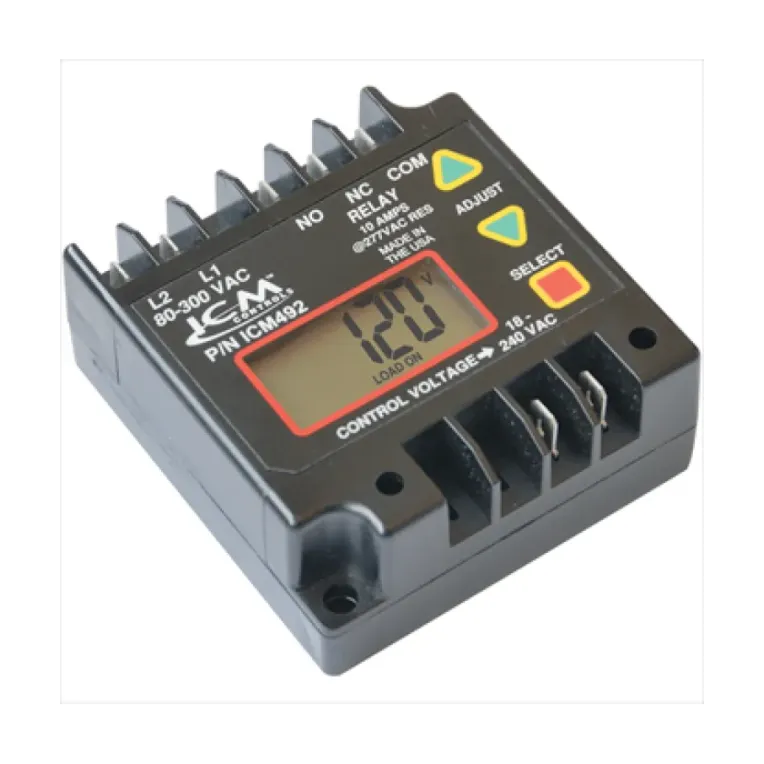

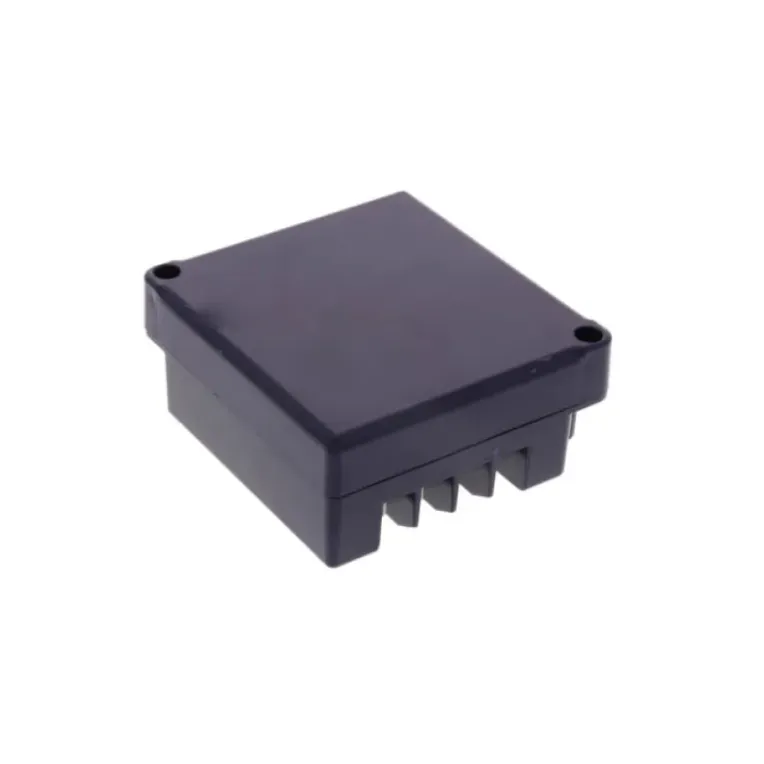

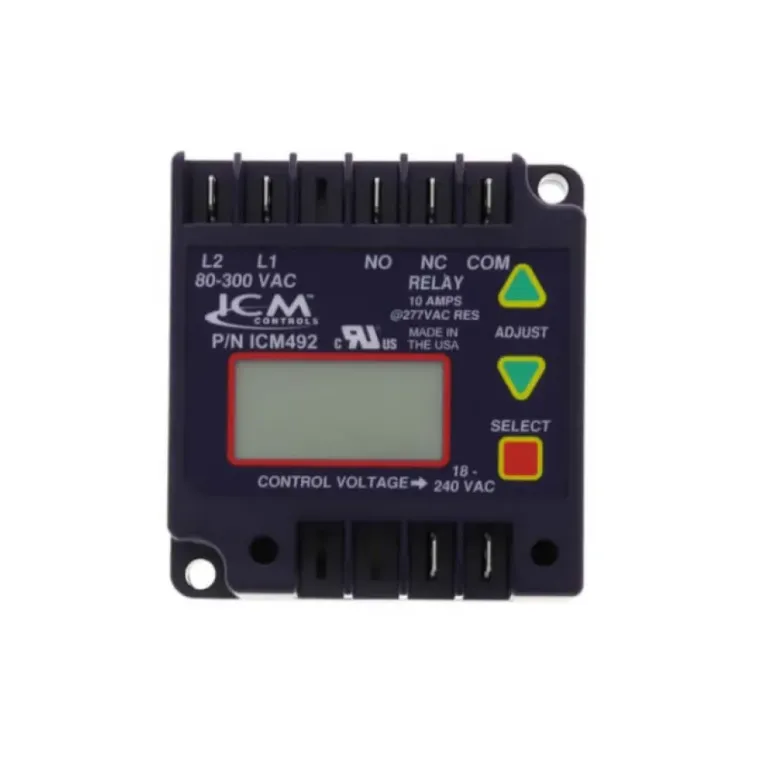

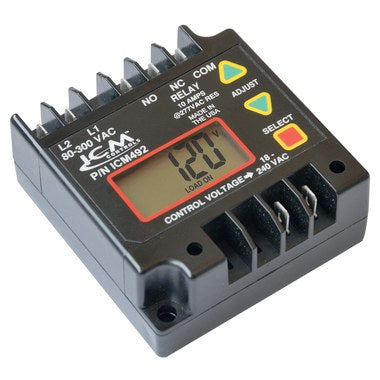

ICM CONTROLS ICM492D Single Phase Voltage Monitor

Product Description

The ICM CONTROLS ICM492D is a single-phase voltage monitor that safeguards equipment from voltage issues. This device continuously checks line voltage to prevent both low and high voltage situations, as well as quick cycling due to voltage faults or power loss. It has a backlit digital display for clear visibility and easy parameter setting.

• Monitors line voltage continuously
• Protects against low and high voltage conditions
• Backlit digital display for easy viewing

Product Highlights

This monitor is essential for maintaining equipment safety in various electrical systems.

Product Information

Standard Information

• Brand: ICM CONTROLS
• MPN: ICM492D

Technical Specifications

• Voltage: 80 to 300 VAC
• Frequency: 50/60 Hz
• Voltage setpoint: 95-280 VAC
• Over voltage setting: 5-25%
• Under voltage setting: 5-25%
• Response time: 0.1 to 10 seconds
• Accuracy: ±2%
• Control Voltage: 18 to 240 VAC
• N.O. Contacts: 10A resistive @ 277 VAC
• N.C. Contacts: 10A resistive @ 277 VAC
• Operating temperature range: -40°C to +70°C
• Storage temperature range: -40°C to +85°C
• Maximum Operating/Storage Relative Humidity: 95% non-condensing
• Anti-short cycle time delay: 0-720 seconds
• Control mode: On and Off
