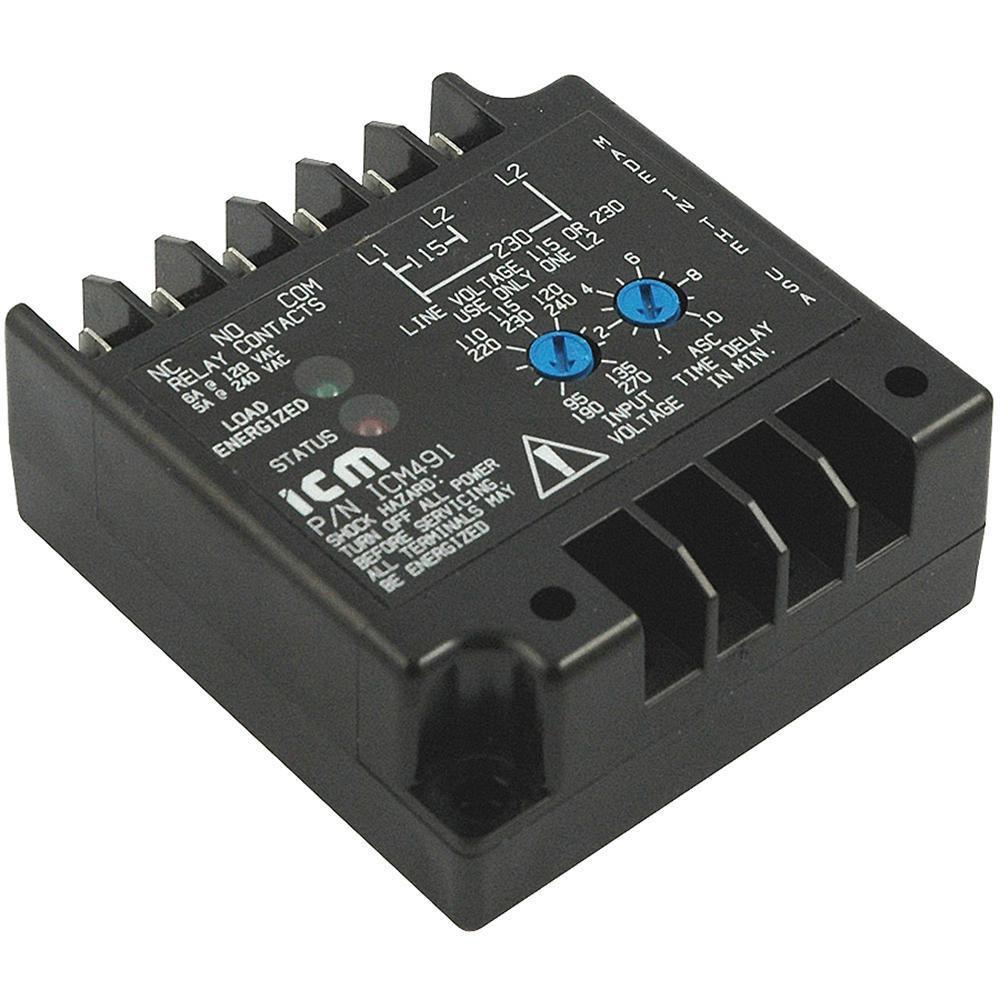

Icm Controls ICM491C Voltage Monitor, 1 Phase

Product Description

The ICM CONTROLS ICM491C voltage monitor protects against high/low voltage and rapid system recycling. It features 95-270 Vac operation and an adjustable anti short-cycle timer. The integral anti short-cycle protection delay on break circuit provides an adjustable (.1-10 minute) lockout delay to prevent rapid system recycling. It is designed for single phase motor protection.

• Protects against high/low voltage
• Protects against rapid system recycling
• 95-270 Vac operation
• Adjustable anti short-cycle timer

Product Highlights

This voltage monitor offers reliable protection against voltage fluctuations and short cycling, ensuring optimal motor performance and longevity.

Product Information

Standard Information

• Brand: ICM CONTROLS
• Manufacturer Part Number: ICM491C

Technical Specifications

• Vendor Name: ICM Controls
• URI Part Number: ICM491C
• Vendor Part Number: ICM491
• Contact Rating (Amps): 5 Amps, 240 Vac
• Contact Type: SPDT
• Electrical Rating: 95-270VAC
• Product Type: Single Motor Protection Adjustable
• Height: 1.25 in
• Length: 3.25 in
• UL Listed: No
• UPC: 800442001166
• Volts: 95/270V
• Width: 3 in
