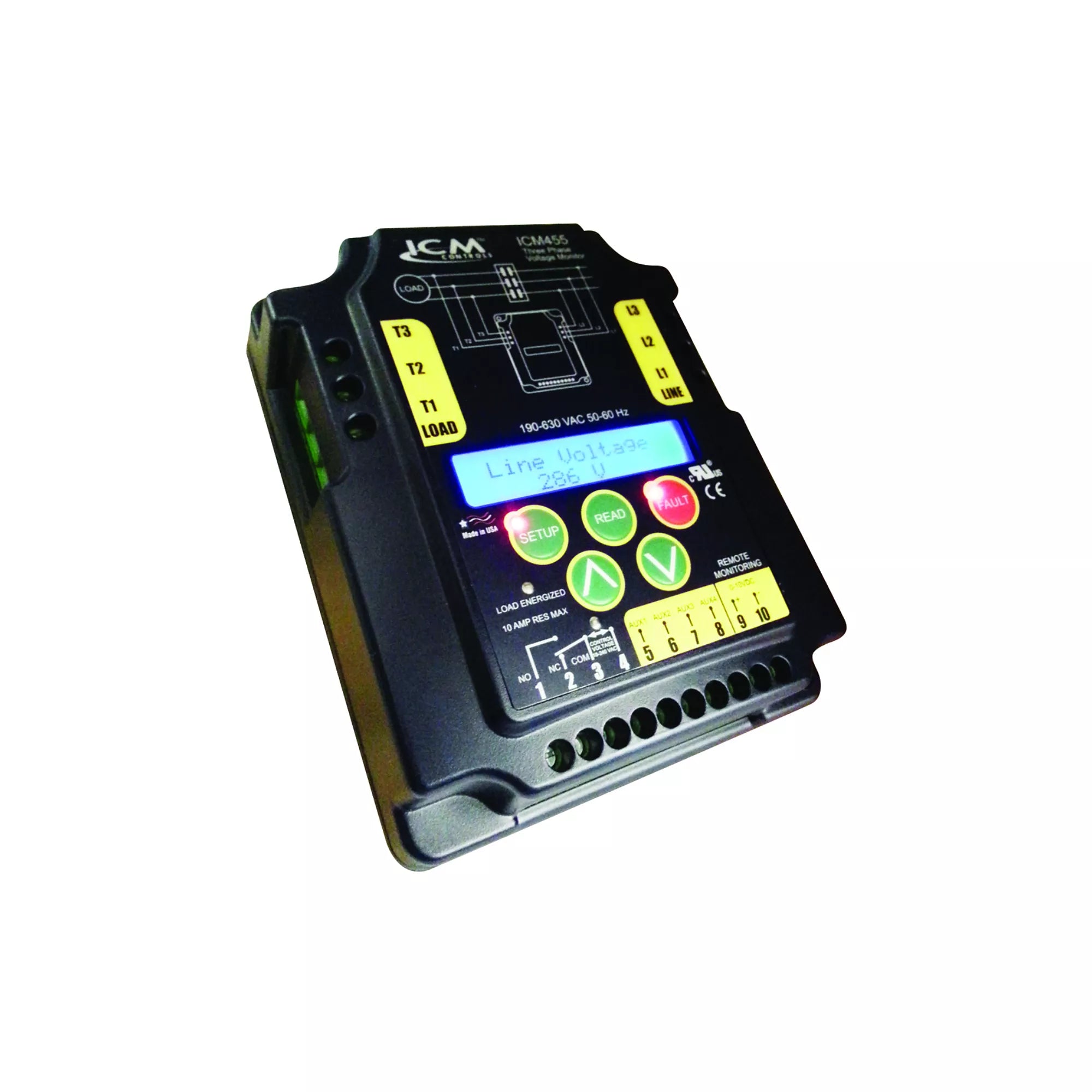

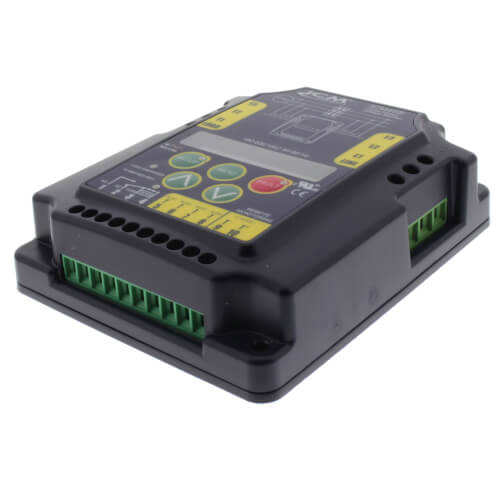

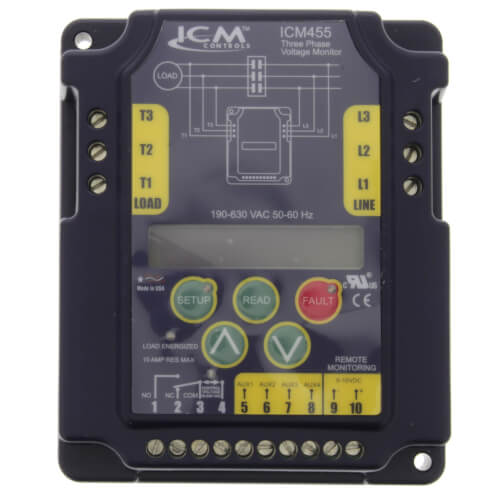

Icm Controls ICM455 3-Phase Monitor, 100-Fault Memory With Time/Date Stamp, Lcd, Setup And Diagnostics

Product Description

The ICM CONTROLS ICM455 is a fully programmable, 3-phase line voltage monitor with a backlit LCD, 100 fault memory, and a real-time clock for accurate date and time stamp. Operating between 190-600 VAC with a control voltage of 18-240 VAC, it offers complete system protection by monitoring both the line and load side of the system.

• Monitors voltage unbalance, high/low voltage, phase loss, reversal, faulty power, incorrect sequencing and rapid short cycling
• Features a simple 7-step push-button setup
• Provides a 0-10 VDC output for remote monitoring capability

Product Highlights

The ICM455 provides comprehensive 3-phase line voltage monitoring with fault memory and real-time diagnostics.

Product Information

Standard Information

• Brand: ICM CONTROLS
• Manufacturer Part Number: ICM455
• Country of Origin: USA

Technical Specifications

• Brand: ICM Controls
• Control Voltage: 18-240 VAC
• Cycle/Hertz: 50/60 Hz
• Phase: Three
• Voltage: 18-240 VAC
• Width: 4.5
• Height: 1.5
• Length: 5.5
• Maximum Voltage: 600 VAC
• Full Load Amps: 10
• Prop 65: Yes
• UPC: 800442028859
• Country of Origin: USA
• Programmability: Programmable
• Output: 0-10 VDC
• Frequency: 50-60 Hz
• Switch: SPDT
• Voltage Unbalance: Adjustable: 2-20%
• Reset Type: Automatic 0-10 retries
• Delay on Break Timer: 0-10 Minutes
• Fault Interrogation: Adjustable: 2-25%
• Relay, SPDT—Normally open: 10 amps
• Normally closed: 6 amps
• Line voltage: universal — 190 to 600VAC, 50/60 Hz
• Terminations: 1/4” quick connects
