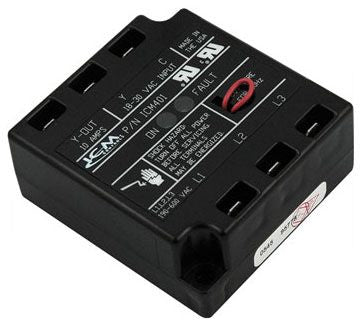

ICM Controls ICM401 Phase Monitor 190 to 600 VAC 50/60 Hz 10 A SPST Relay

Product Description

The ICM Controls ICM401 is a phase monitor designed for use in 3-phase systems with a voltage rating of one hundred ninety to six hundred VAC. This device operates at a frequency of fifty to sixty Hertz and features an SPST relay output type.

• Voltage range: 190 to 600 VAC
• Control voltage: 18 to 30 VAC
• Contact rating: 10 Amp (NO)

Product Highlights

This product safeguards motors against phase loss and moisture. It includes bright LED indicators for operational status and faults. The encapsulated design offers protection in wet environments.

Product Information

Standard Information

• Brand: ICM Controls
• MPN: ICM401

Technical Specifications

• Voltage Rating: 190 to 600 VAC
• Frequency Rating: 50/60 Hz
• Phase Type: 3-Phase
• Output Type: SPST Relay
• Auxiliary Supply: 18 to 30 VAC
• Phase Loss Protection: Less than 1 second
• Weight: 0.2 Pound
• Size: 3.25 inches Length x 3 inches Width x 1.25 inches Height
• Application: Motor Protection, Moisture Protection
