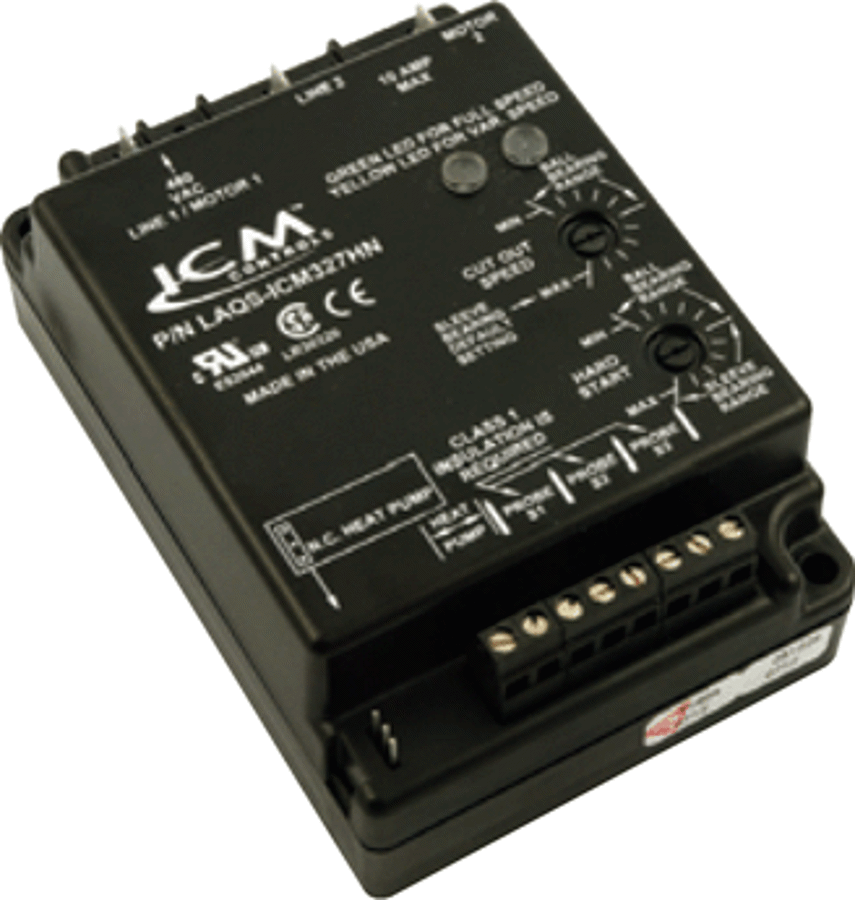

ICM Controls ICM327HN Head Pressure Control, 480VAC RoHS 1Ph

Product Description

The ICM Controls ICM327HN is a head pressure control for HVAC systems designed to operate at 480VAC. This product is essential for regulating the pressure of refrigerants in various HVAC applications.

• Controls head pressure to optimize system performance.
• Features hard start timing of 0.1 to 5 seconds.
• Designed for surface mounting, making installation straightforward.

Product Highlights

This unit helps prevent evaporator freeze-ups and low pressure cut-outs, contributing to the efficient operation of air conditioning and heat pump systems.

Product Information

Standard Information

• Brand: ICM Controls
• MPN: ICM327HN

Technical Specifications

• Control Voltage: 480 VAC
• Hard Start Timing: 0.1 - 5 seconds
• Triac Output: 10 A Max, 100mA Min
• Dimensions: 4-3/4 inches L x 3-1/4 inches W x 2 inches H
• Mounting Type: Surface mount
• Operating Temperature: -40 to 176 degrees F
• Frequency: 50/60 Hz
• Application: Air Conditioning and Heat Pump
