ICM Controls ICM325A Head Pressure Control 120-480V (Low Ambient Control)

Product Description

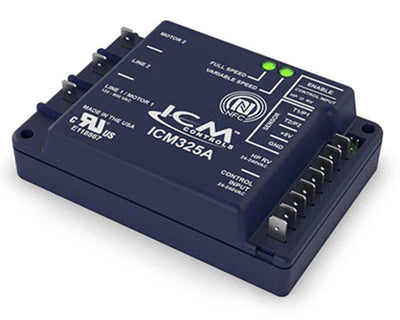

The ICM325A from ICM Controls is a head pressure control designed for single-phase operation. It manages ambient temperatures for air conditioning and heat pumps effectively within a range of one hundred twenty to four hundred eighty volts. This product is suitable for applications needing stable system performance while controlling the pressure of refrigerant in low ambient conditions.

• Operates between 120-480 volts
• Temperature range from -40°F to 176°F
• Compatible with A/C and heat pumps

Product Highlights

This control unit regulates fan speed based on temperature and pressure to prevent inconsistent head pressures, which can lead to equipment damage. The robust construction of the ICM325A ensures reliability in demanding environments.

Product Information

Standard Information

• Brand: ICM Controls
• Part Number: ICM325A

Technical Specifications

• Operating Voltage: 120-480 VAC
• Control Voltage: 24-240 VAC
• Frequency: 50-60 Hz
• Operating Temperature Range: -40°F to 176°F
• Weight: 0.74 lbs
• Dimensions: 4.75 x 3.25 x 1.75 inches
