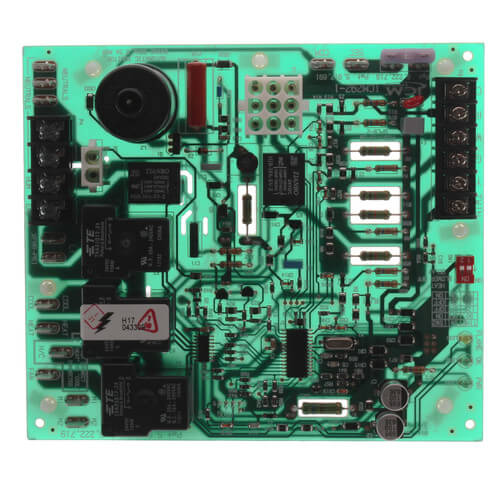

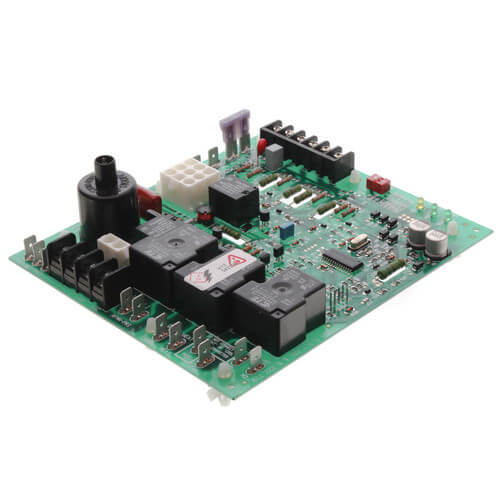

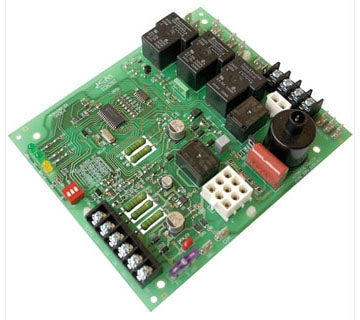

ICM Controls ICM292 Direct Spark Ignition Control Board 115 VAC 60 Hz Replacement for Rheem 62-24140-04

Product Description

The ICM292 is a direct spark ignition control board from ICM Controls. This microprocessor-based component is designed for use with furnaces that require precise ignition control. It ensures appropriate operation and safety for gas-fired appliances. The board features a robust construction suitable for various conditions and environments.

• Compatible with Rheem 62-24140-04 control board.
• Monitors all critical ignition functions.
• Constructed for both LP and natural gas compatibility.

Product Highlights

The ICM292 provides reliable ignition management and safety features, ensuring efficient furnace operation and enhanced safety.

Product Information

Standard Information

• Manufacturer: ICM Controls
• Model Number: ICM292

Technical Specifications

• Voltage Rating: 115 Volt AC, 60 Hertz (Line), 24 Volt AC, 60 Hertz (Control)
• Power Consumption: 0.3 Amp at 24 Volt AC (Gas Valve)
• Ignition Trail Time: 7 Seconds
• Pre-Purge Time: 30 Seconds
• Temperature Rating: -40 to 176 Degrees F
• Dimensions: 5.75 inches Length x 6.625 inches Width x 2.5 inches Height
