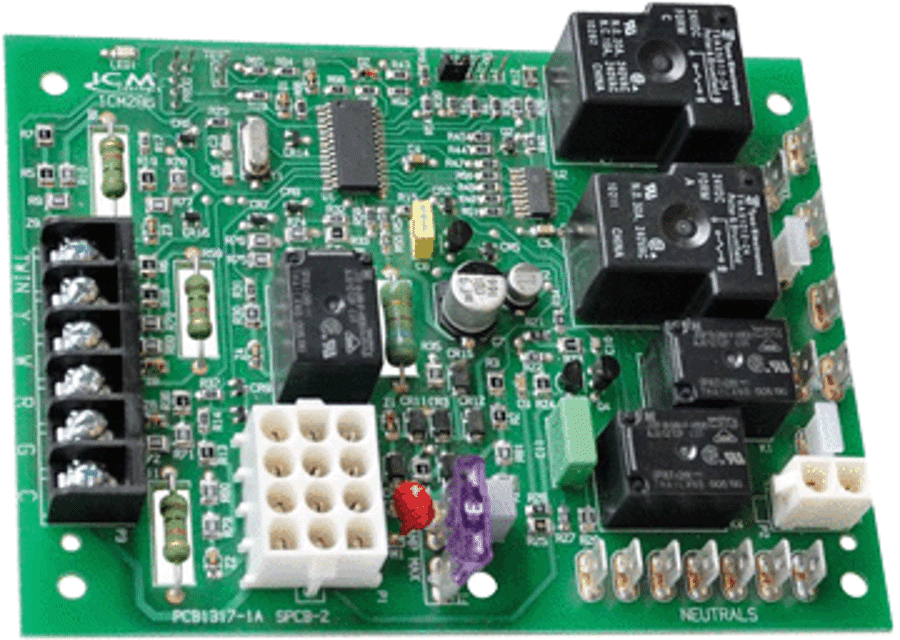

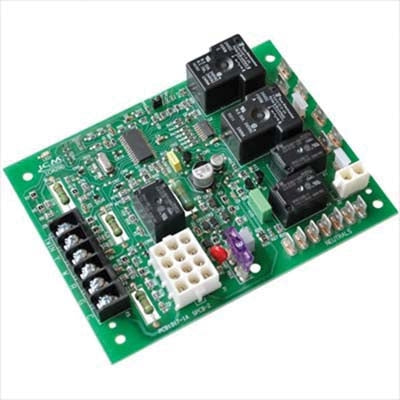

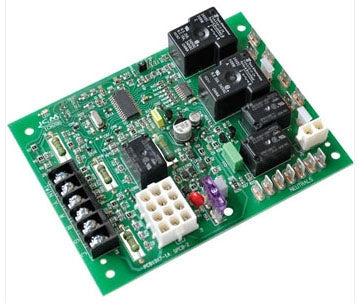

ICM Controls ICM286 Furnace Control Board 98 to 132 VAC 60 Hz Goodman

Product Description

The ICM Controls ICM286 is a microprocessor-based furnace control board designed to operate under voltage ratings of ninety-eight to one hundred thirty-two volts AC. This control board is compatible with various furnace models and ensures precise control over essential functions.

• Microprocessor-based
• Voltage range: 98 to 132 VAC
• Dimensions: 4.5 inches length x 6 inches width x 1 inch height

Product Highlights

This product manages the inducer fan, blower fan motors, and the hot surface igniter. It features a diagnostic LED to help with troubleshooting and supports compatibility with LP or natural gas applications.

Product Information

Standard Information

• Brand: ICM Controls
• MPN: ICM286

Technical Specifications

• Voltage Rating: 98 to 132 VAC
• Frequency Rating: 60 Hz
• Amperage Rating: 6 A
• Temperature Rating: -40 to 176 degrees F
• Humidity Rating: 5 to 95% RH (Non-Condensing)
• Time Delay Features: 7 seconds for ignition trial, 15 seconds pre-purge, 30 seconds for heat blower operation
• Dimensions: 4.5 inches x 6 inches x 1 inch
