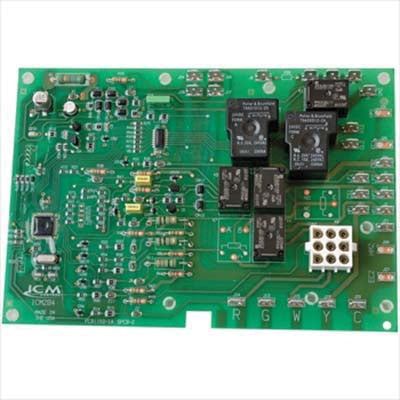

ICM Controls ICM284 Furnace Control Board 208 VAC (5-1/2 in L x 8 in W x 1-1/2 in H)

Product Description

The ICM Controls ICM284 is a furnace control board designed for ignition, flame sensing, and lockout applications. It operates at 208 VAC and measures five and one-half inches long by eight inches wide by one and one-half inches high. This control board is essential for maintaining safe and effective furnace operations.

• Controls vent motor and blower control
• Microprocessor-based design for improved reliability
• UL listed for safety and compliance

Product Highlights

This furnace control board ensures accurate ignition and flame sensing. It features diagnostic LEDs for troubleshooting and a robust design for long-term performance.

Product Information

Standard Information

• Brand: ICM Controls
• Manufacturer: ICM Controls Corporation

Technical Specifications

• Amperage Rating: 5 A
• Dimension: 5-1/2 in L x 8 in W x 1-1/2 in H
• Frequency Rating: 60 Hz
• Humidity Rating: 5 - 95% Relative Humidity Non Condensing at 55 deg F
• Item Name: Furnace Control Board
• Temperature Rating: -40 to 176 deg F Operating, -40 to 185 deg F Storage
• Voltage Rating: 208 VAC
