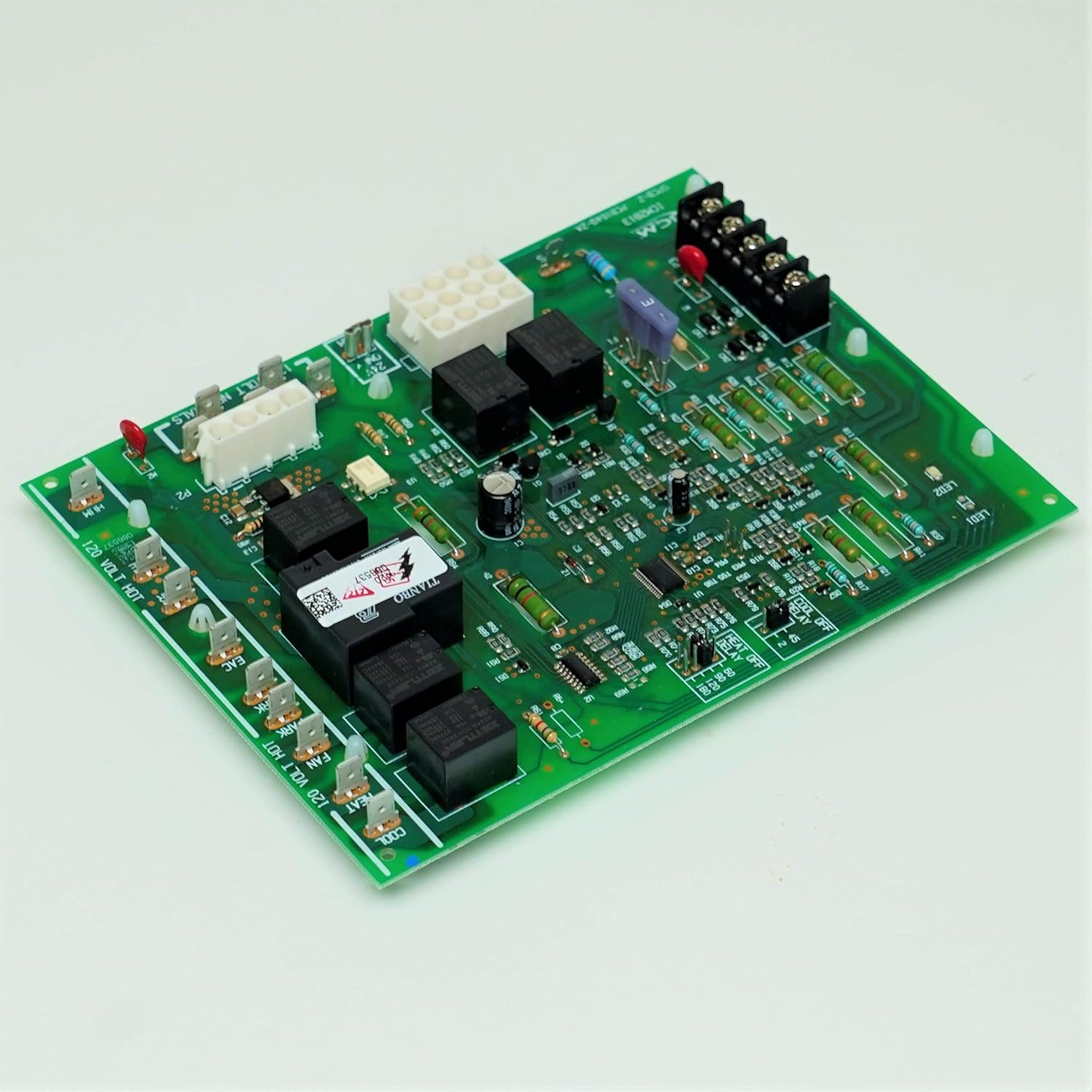

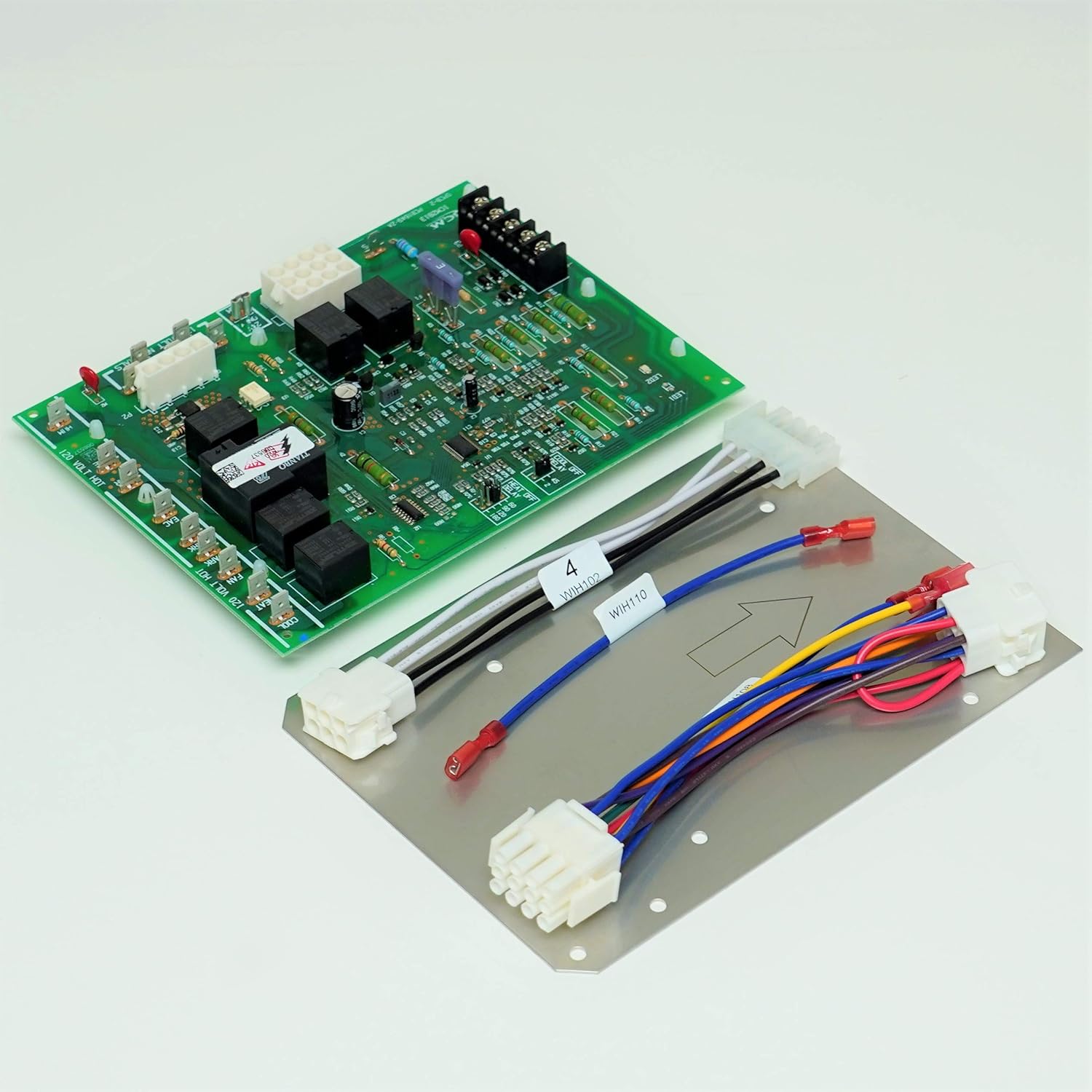

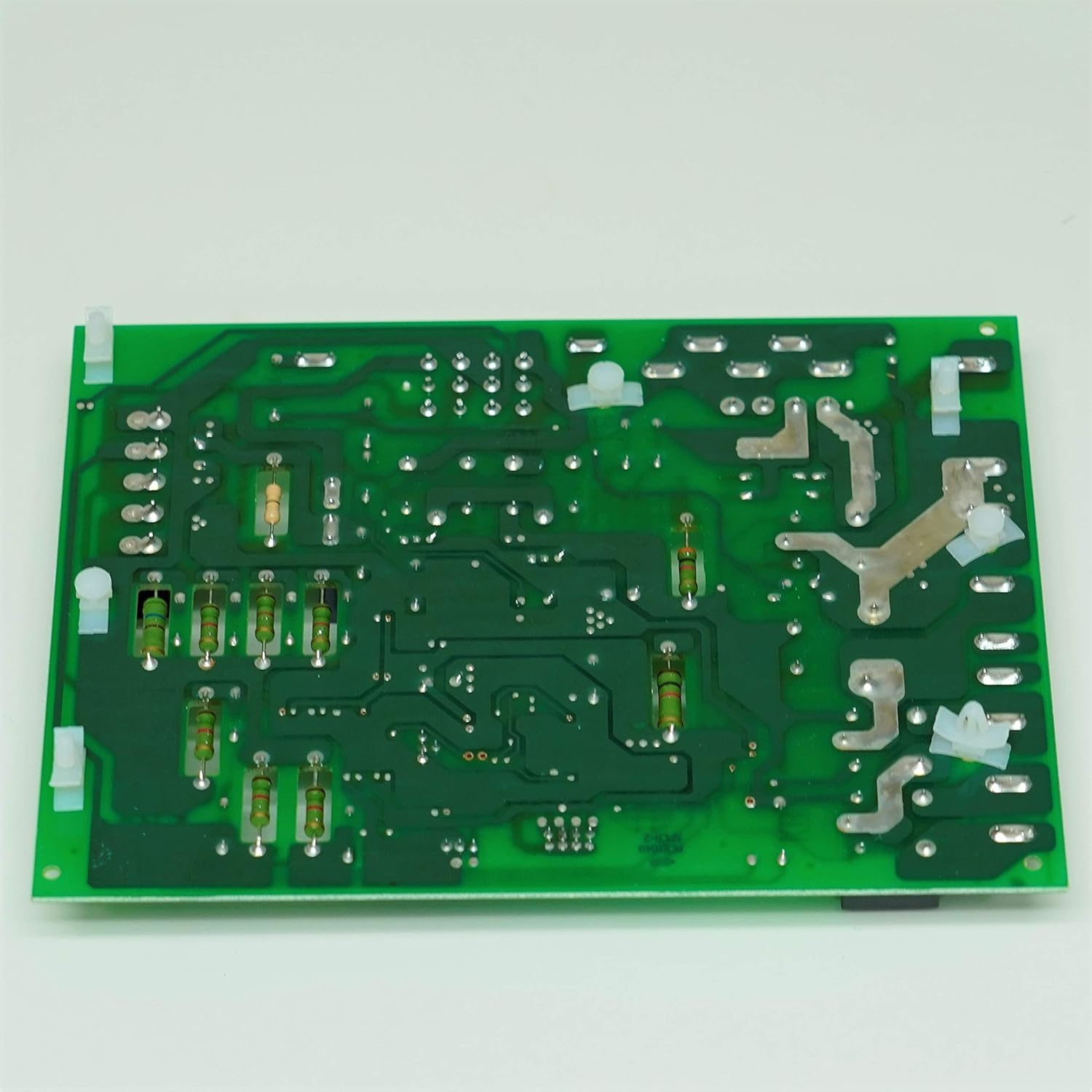

ICM Controls ICM2813 Gas Ignition Control Board for Furnaces Replacement ICM2813

Product Description

The ICM Controls ICM2813 Gas Ignition Control Board is a precision-engineered component designed for specific Lennox and White-Rodgers furnace models. Equipped with microprocessor-based controls, it monitors and directs the functions of the gas valve, inducer draft motor, circulating blower, and hot surface ignitor with exceptional accuracy.

• Compatible with Lennox replacements including models 23W5101 and 30W2501, among others.
• Ensures reliable system performance and enhances HVAC system safety.
• Robust diagnostics and testing capabilities are supported by onboard diagnostic LEDs.

Product Highlights

This control board is crucial for the seamless operation of HVAC systems, increasing component coherence and ensuring consistent performance even under varying environmental conditions.

Product Information

Standard Information

• Brand: ICM Controls
• MPN: ICM2813

Technical Specifications

• Input Voltage: 18-30 VAC, 60 Hz
• Ignitor Current: 2.0 amp @ 80 VAC, 60 Hz (resistive)
• Inducer Relay: 2.2 FLA-3.5 LRA @ 120 VAC
• Blower Relay: 14.5 FLA-25.0 LRA @ 120 VAC (2spd-H/C)
• Gas Valve Relay: 1.5 amp @ 25 VAC, 60 Hz 0.6 pf
• Operating Temp Range: -40 to 176 degrees F (-40 to 80 degrees C)
• Humidity Range: 5 to 95% relative humidity (non-condensing)
