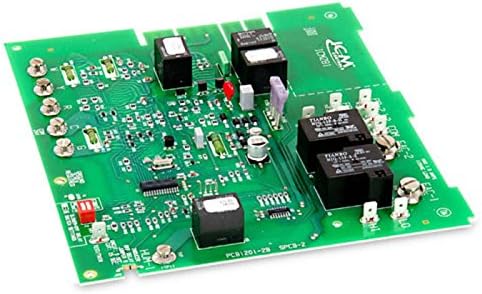

ICM Controls ICM2812 Furnace Control Board Replaces White Rodgers 50M56U-843

Product Description

The ICM Controls ICM2812 Furnace Control Board replaces the White Rodgers 50M56U-843. It is a universal control board suitable for various HVAC systems. This replacement board ensures reliable operation and compatibility.

• Hot Surface Ignition (HSI) control board
• Microprocessor-based
• Compatible with LP or Natural Gas

Product Highlights

The ICM2812 board monitors timing, trial for ignition, system switches, flame sensing, and lockout. It features a 100% lockout safety function and LED indicators for status and fault codes to help in troubleshooting.

Product Information

Standard Information

• Brand: ICM Controls
• Part Type: Furnace Control Board

Technical Specifications

• Control voltage: 24 VAC (18-30 VAC)
• Line voltage: 120 VAC
• HSI Hot Surface Ignitor: 6 amp at 120 VAC
• Gas Valve: 1.5 amp at 24 VAC
• Inducer draft motor: 2.2 FLA at 120 VAC
• Blower motor: 14.5 FLA at 120 VAC
• Operating Temp Range: -40 to 176 F
• Humidity Range: 5 to 95 percent relative humidity (non-condensing)
