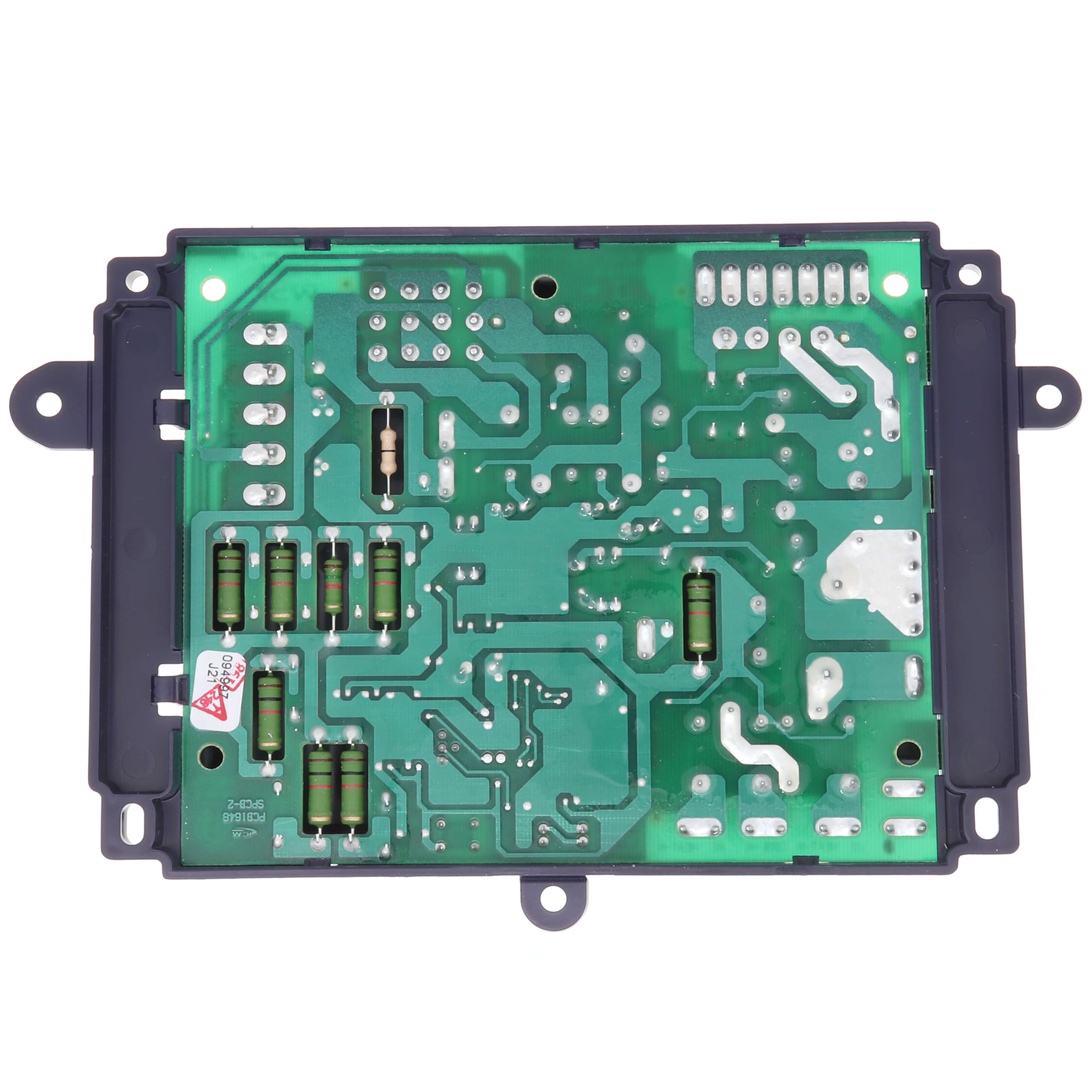

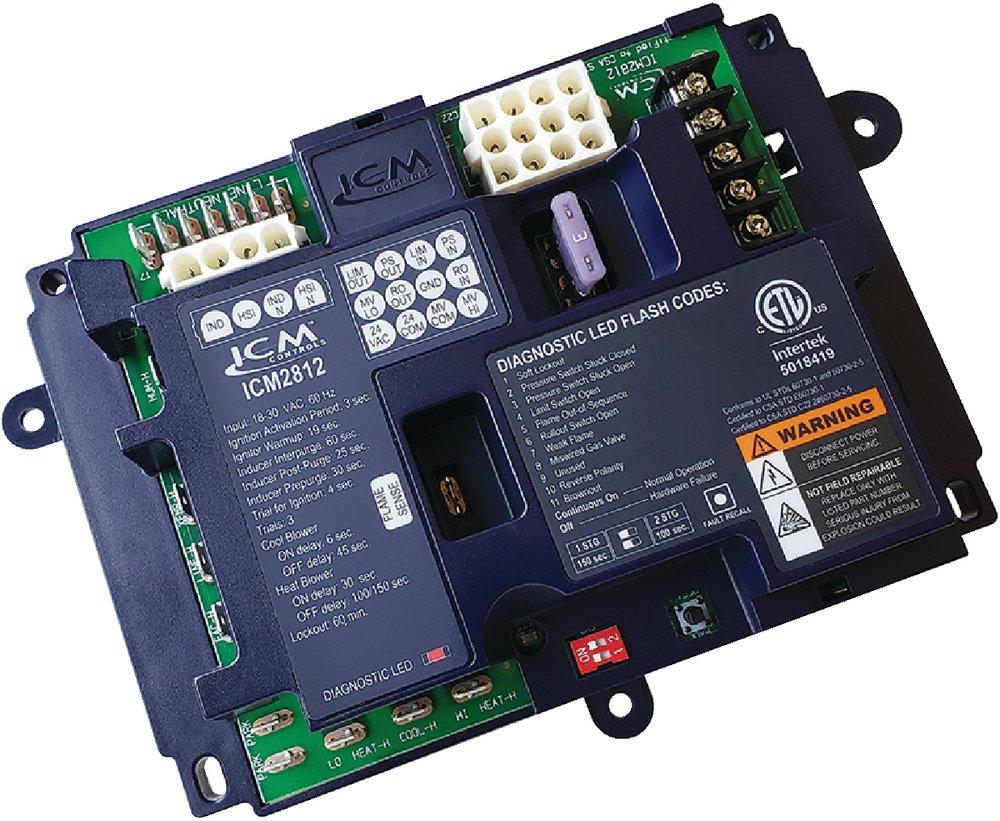

ICM Controls ICM2812-KIT Furnace Control Board Kit

Product Description

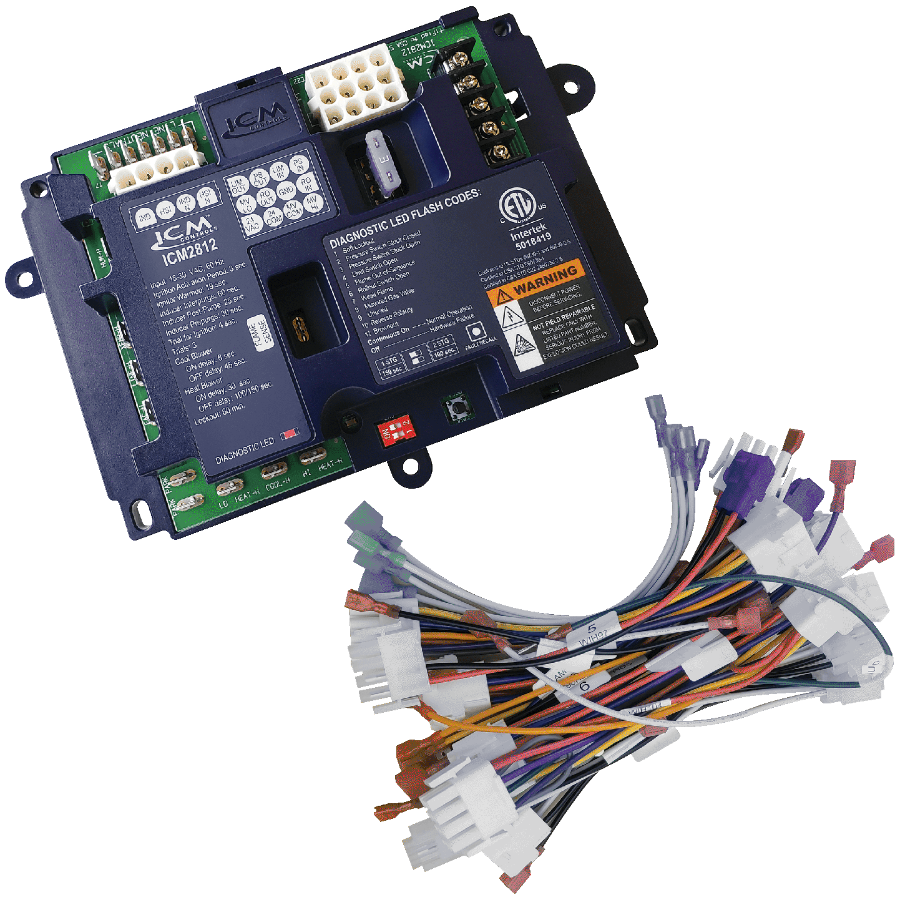

The ICM2812-KIT from ICM Controls is a universal furnace control board that replaces numerous competitive part numbers, including the White-Rodgers 50M56U-843. This kit includes cable harnesses, ensuring compatibility with over 150 furnace models. It features a microprocessor-based design that monitors ignition and flame conditions for enhanced safety and performance.

• Universal replacement for various furnace control boards
• Hot Surface Ignition (HSI) control capability
• LED indicators for monitoring system status and troubleshooting

Product Highlights

This control board is suitable for both LP and natural gas systems, ensuring installations are safe and efficient. The built-in lockout feature provides added protection for system integrity during operation.

Product Information

Standard Information

• Brand: ICM Controls
• MPN: ICM2812-KIT

Technical Specifications

• Control Voltage: 24 VAC (18-30 VAC)
• Line Voltage: 120 VAC
• Operating Temperature Range: -40 to 176 F
• Heat Blower Delay: 30 seconds
• Cool Blower On Delay: 6 seconds
• Cool Blower Off Delay: 45 seconds
• Flame Safety Control: 100% lockout feature
• Relative Humidity Range: 5% to 95% (non-condensing)
