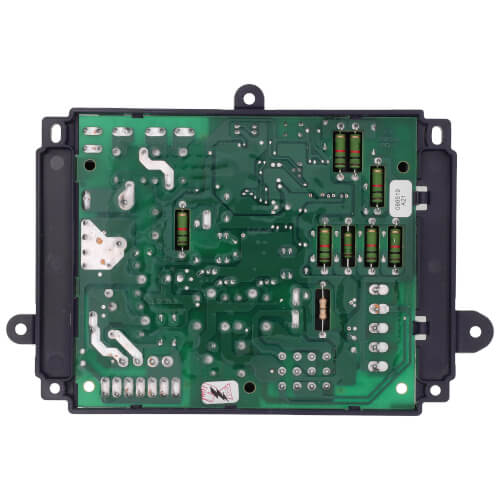

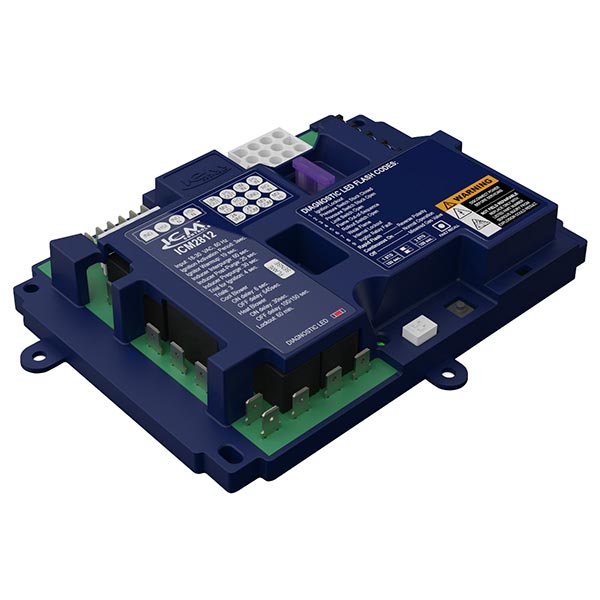

ICM Controls ICM2812 Furnace Control Board Replacement for White Rodgers 50M56U-843

Product Description

The ICM2812 from ICM Controls is a furnace control board replacement for the White-Rodgers 50M56U-843. It is designed to replace existing control boards in HVAC systems. This board monitors crucial functions including ignition timing, system switches, and flame sensing.

• Hot Surface Ignition (HSI) control
• Compatible with LP or Natural Gas
• LED indicators for troubleshooting

Product Highlights

This control board features a 100% lockout safety mechanism, ensuring system safety during operation.

Product Information

Standard Information

• Input Voltage: 120 V
• Control Voltage: 24 V
• Length: 5.125 inches
• Width: 7 inches

Technical Specifications

• HSI Hot Surface Ignitor: 6 amp @ 120 VAC
• Gas Valve: 1.5 amp @ 24 VAC
• Inducer draft motor: 2.2 FLA @ 120 VAC
• Blower motor: 14.5 FLA @ 120 VAC
• Operating Temperature: -40 degrees to 175 degrees F (-40 degrees to 80 degrees C)
• Humidity Range: 5 to 95% relative humidity (non-condensing)
