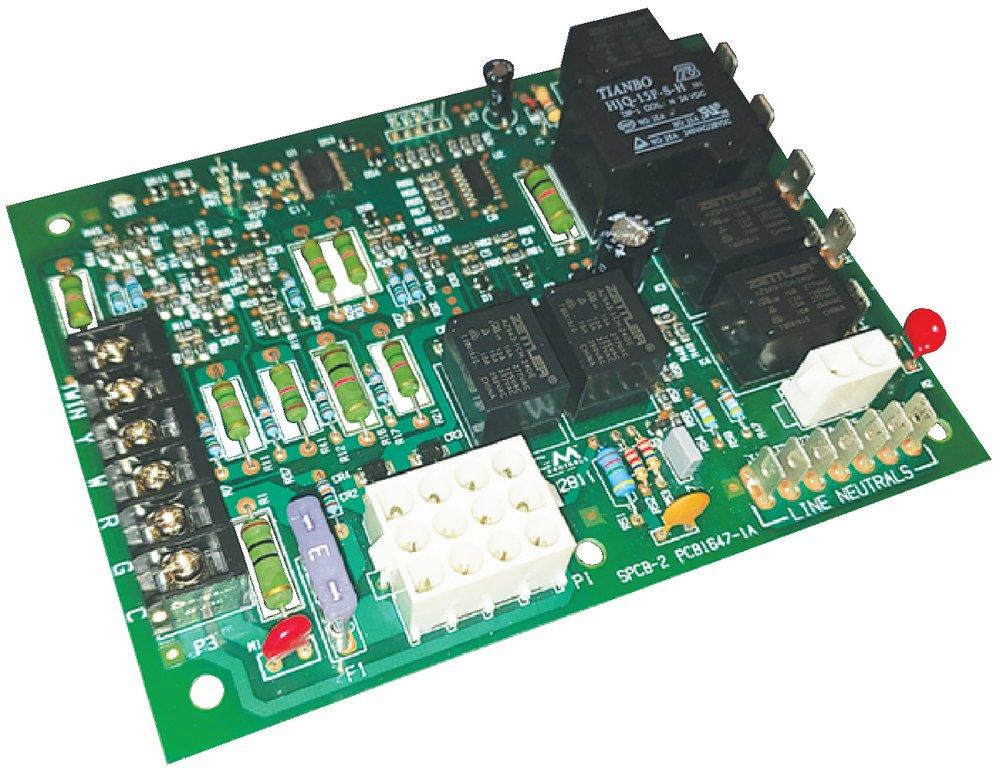

ICM Controls ICM2811 Furnace Control Board 18-30 V AC Replacement

Product Description

The ICM Controls ICM2811 is an automated gas ignition control board. It manages the ignition sequence for heating systems, ensuring efficient operation.

• Monitors the combustion air blower, pressure switch, and hot surface igniter.
• Controls the gas valve, inducer draft motor, circulating blower, and provides safety monitoring.
• Includes diagnostic LEDs for troubleshooting issues.

Product Highlights

This board is designed for reliability and compatibility, making it suitable for various furnace models.

Product Information

Standard Information

• Brand: ICM Controls
• Manufacturer Part Number: ICM2811

Technical Specifications

• Input Voltage: 18-30 VAC
• Operating Range: -40 to 176 F
• Heat Blower Delay: 30 seconds
• Cool Blower On Delay: 5 seconds
• Cool Blower Off Delay: 45 seconds
• Igniter Current: 6.0 amp @ 120 VAC
• Inducer Relay: 2.2 FLA - 3.5 LRA @ 120 VAC
• Blower Relay: 9.5 FLA - 25.0 LRA @ 120 VAC
