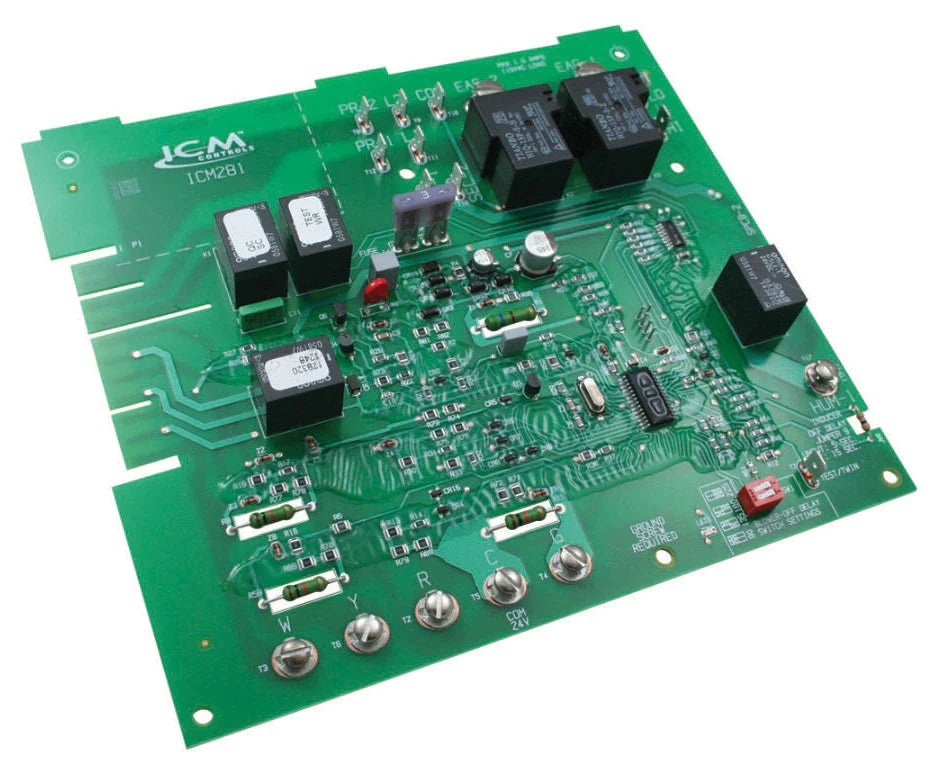

ICM Controls ICM281 Furnace Control Board 98 to 132 VAC at 60 Hz 4 A

Product Description

The ICM Controls ICM281 is a furnace control board rated for 98 to 132 VAC and 4 A. This microprocessor-based control board is designed for managing gas furnaces with precision. Its robust design ensures reliable operation under various conditions.

• Microprocessor-based design for enhanced timing accuracy
• 100% gas shutoff capability in case of ignition failure
• Compatible with multiple HVAC systems and 24V AC thermostats

Product Highlights

The ICM281 integrates seamlessly with furnace systems, ensuring efficient control of gas valves, igniters, and blower motors. It also features diagnostic LEDs to assist in troubleshooting.

Product Information

Standard Information

• Manufacturer: ICM Controls
• Input Voltage: 98 to 132 VAC
• Current Rating: 4 A

Technical Specifications

• Dimensions: 7.625 inches Length x 8.5 inches Width x 0.75 inches Height
• Operating Temperature Range: -40 to 176 °F
• Humidity Rating: 5 to 95% RH (Non-Condensing)
• Power Ratings: 2 HP (Cool Blower)
• Features: Controls gas valve, igniter, blower motor, inducer, humidifier, and air cleaner
• Made In: USA
